7825100

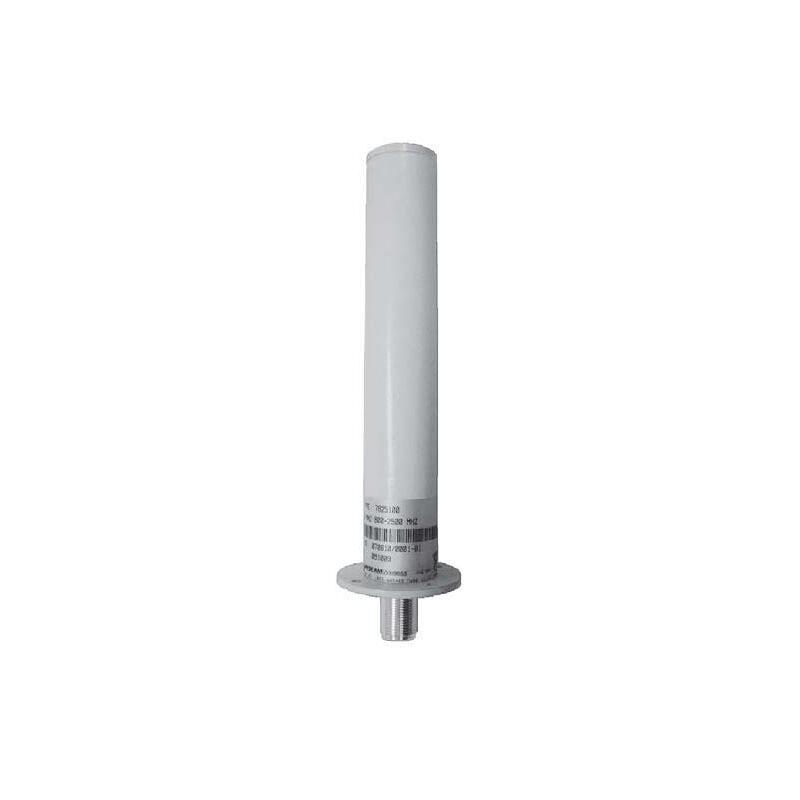

Multi band, vertically polarized, omni antenna

Find Out More
Data Sheet
CE Certification

Other Files

7825100
Electrical
Frequency 800 – 2700 MHz
Max. Input Power 50 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 50 °
Impedance 50 Ω
Gain 0.4dBd / 2.5dBi
VSWR < 1.8:1 (800-960 MHz)
< 2.5:1 (960-1710 MHz)
<1.8:1 (1710-2900MHz)
In iBwave Yes
Environmental
Ingress Protection IP65
Mechanical
Connection(s) N(f)
Radome Material / Colour ABS White
Historic Brand Jaybeam
Dimensions 175 x ø28 mm / 6.9 x ø1.1 in
205 x ø28 mm / 8.1 x ø1.1 in
Wind Load 11 N (160km/h)
Weight 0.12 kg / 0.26 lb.
  • Single Band, Omni, V-Pol, 800-2700 MHz, 0.4 dBd, 2.5 dBi, Low Power (Medium Duty)
  • Various mounting kits available for ceiling, wall or pole mounting

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Multi band, vertically polarized, omni antenna 7825100

Login required

You need to be logged in into your account to view downloadable documents.

Additional Data
Mounting CharacteristicsModel NumberImageFits Pipe DiameterWeight
All mounting bracket kits are ordered separately unless otherwise indicated. Select from the options listed below.
Mounting interface is four Ø3.4 mm (0.1 in) holes equally spaced on a Ø41 mm (1.6 in) bolt circle
Universal Wall / Ceiling Mounting Kit 505-173-5-003 Image 002 — 2.7 kg 6 lbs
Wall Mounting Kit XSL9254316 Image 003 — 0.5 kg 1.1 lbs
Wall or Pole Mounting Kit XSL9254317 Image 004 30-53 mm 1.2-2.0 in 0.5 kg 1.1 lbs
