7825200

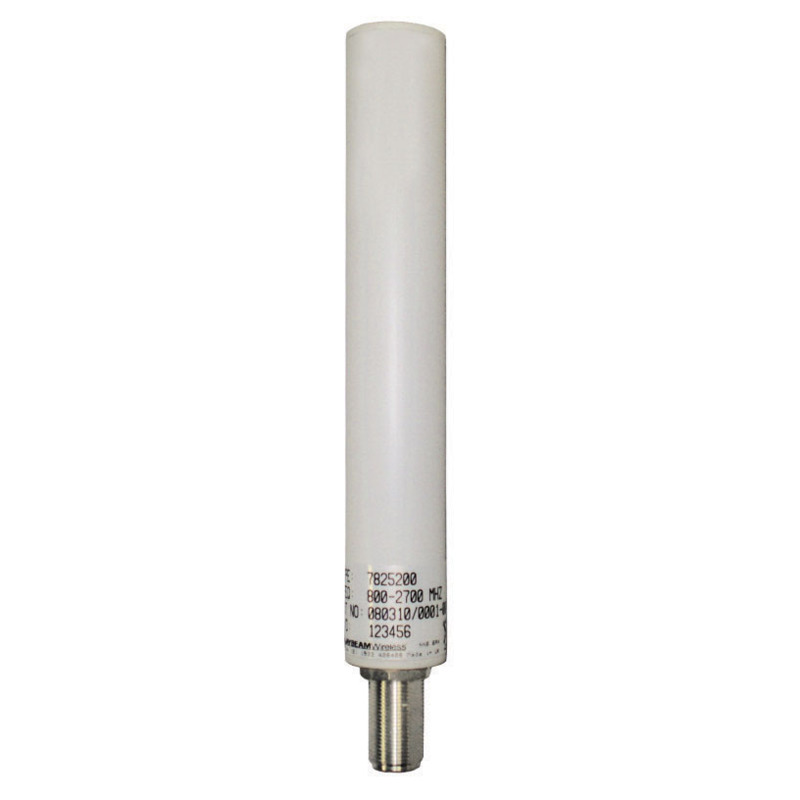

Wideband omni, 800 – 2700 MHz, connector mount

Find Out More
Data Sheet
CE Certification

Other Files

7825200
Electrical
Model 7825200
Frequency
800 – 960 MHz960 – 1710 MHz1710 – 2700 MHz
Max. Input Power 50 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 50 °
Impedance 50 Ω
Gain 0.4dBd / 2.5dBi
VSWR
< 1.8:1< 2.5:1< 1.8:1
Mechanical
Connection(s) N(f)
Radome Material / Colour White
Historic Brand Jaybeam
Dimensions 175 x 28 mm / 6.9 x 1.1 in.
Wind Load 11 N (160 km/h)
Weight Approx. 0.12 kg / 0.26 lb.
Mounting Threaded stub (5/8″ – 24 UNEF)
  • A small, wideband omni for 2G/3G/4G cellular terminal applications, offering an ideal solution for cellular access, M2M or wireless metering applications.
  • Former Jaybeam brand product.
