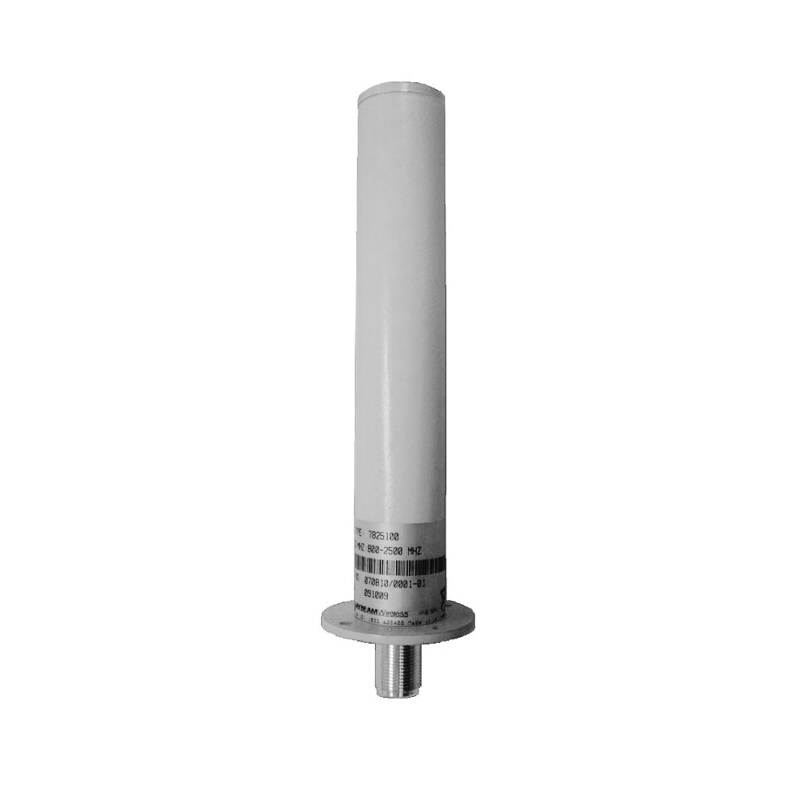

Wideband omni, 698 – 2700 MHz

Find Out More
Data Sheet
CE Certification

Other Files

7825700
Electrical
Model 7825700
Frequency
698 – 960 MHz1710 – 2700 MHz
Max. Input Power 50 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 50 °
Impedance 50 Ω
Gain 0.4dBd / 2.5dBi
VSWR < 2.5:1 (698-960 MHz)
<2.0:1 (1710-2170 MHz)
<2.5:1 (2170-2700 MHz)
In iBwave Yes
Mechanical
Connection(s) N(f)
Radome Material / Colour White
Historic Brand Jaybeam
Dimensions 195 x 28 mm / 7.7 x 1.1 in.
Wind Load 4 N (160 km/h)
Weight Approx. 0.11 kg / 0.24 lb.
Mounting 4 x 3.4 mm (0.135 in) ø holes equally spaced on a 41 mm (1.614 in) ø bolt circle
  • A small, wideband omni for 2G/3G/4G cellular terminal applications, offering an ideal solution for cellular access, M2M or wireless metering applications.
  • Former Jaybeam brand product.

RADIATION PATTERNS

H-Plane | 2550 MHz

H-Plane | 2550 MHz

RADIATION PATTERNS

H-Plane | 1800 MHz

H-Plane | 1800 MHz

RADIATION PATTERNS

H-Plane | 900 MHz

H-Plane | 900 MHz

RADIATION PATTERNS

H-Plane | 750 MHz

H-Plane | 750 MHz

RADIATION PATTERNS

E-Plane | 2550 MHz

E-Plane | 2550 MHz

RADIATION PATTERNS

E-Plane | 1800 MHz

E-Plane | 1800 MHz

RADIATION PATTERNS

E-Plane | 900 MHz

E-Plane | 900 MHz

RADIATION PATTERNS

E-Plane | 750 MHz

E-Plane | 750 MHz

Model Product No. Add To Quote
Wideband omni, 698 – 2700 MHz 7825700
