802.0x.05.00

Indoor ceiling mount antenna, TETRA/UHF 380 – 470 MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

802.0x.05.00

Quickly identify the correct ordering code.

802.0x.05.00
Electrical
Model
802.00.05.00802.01.05.00802.02.05.00
Frequency
380 – 470 MHz380 – 430 MHz420 – 470 MHz
Max. Input Power 50 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain
-1.2 dBd / 1 dBi0 dBd / 2.2 dBi
VSWR < 2.0:1
Passive Intermodulation -147 dBc (3rd Order, 2 x Tx @ 37 dBm)
In iBwave Yes
Environmental
Operating temperature range -40 °C to +70 °C
Ingress Protection IP54
Mechanical
Connection(s) N(f) on 500 mm RG303 cable
Radiator Material FR4 Printed Circuit
Radome Material / Colour ABS White Fire Retardant
Historic Brand Skymasts
Dimensions 231 x 81 mm / 9.09 x 3.19 in.
Weight Approx. 0.42 kg / 0.93 lb.
Mounting 3 holes in base provided for ceiling mounting
  • The 802 is a compact, stylish and efficient indoor antenna designed for use with UHF and TETRA systems.
  • It’s ingenious radiator design allows for incredibly broadband operation making the antenna suitable for use within either TETRA frequency band.
  • It’s stylish design makes for a discreet installation in any modern office or industrial complex, and the antenna is simple to install with the minimum of fuss.
  • Former Skymasts brand product.

RADIATION PATTERNS

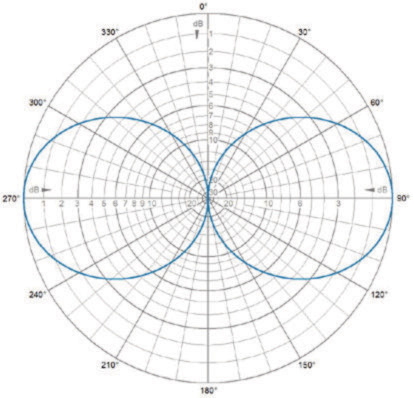

E-Plane | 425 MHz

E-Plane | 425 MHz

RADIATION PATTERNS

H-Plane | 425 MHz

H-Plane | 425 MHz

Model Product No. Frequency Add To Quote

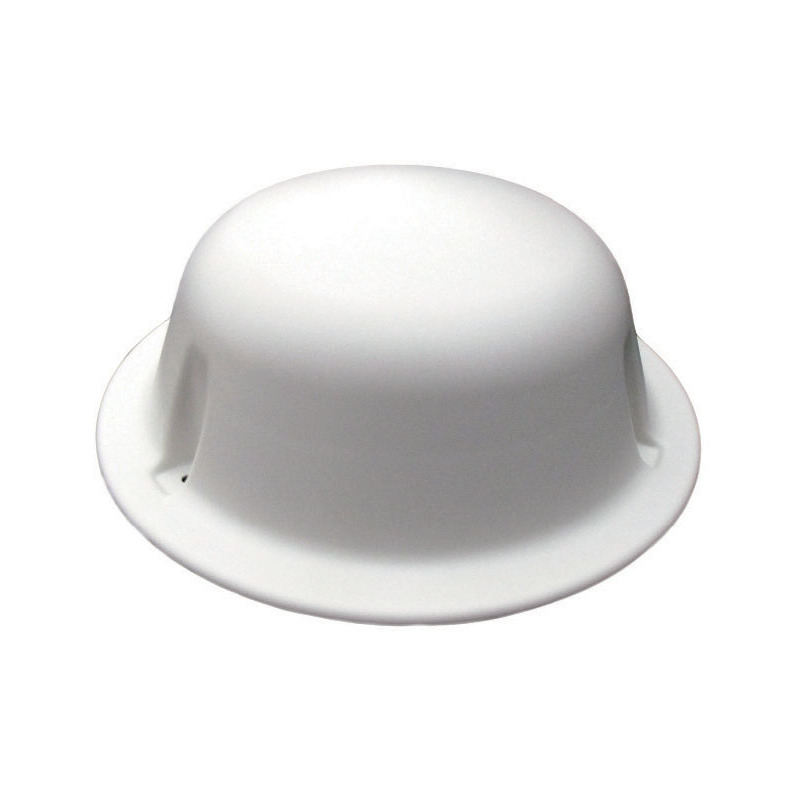

Indoor ceiling mount antenna

 802.00.05.00 380 – 470 MHz

Indoor ceiling mount antenna

 802.01.05.00 380 – 430 MHz

Indoor ceiling mount antenna

 802.02.05.00 420 – 470 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Dimensions & Mounting

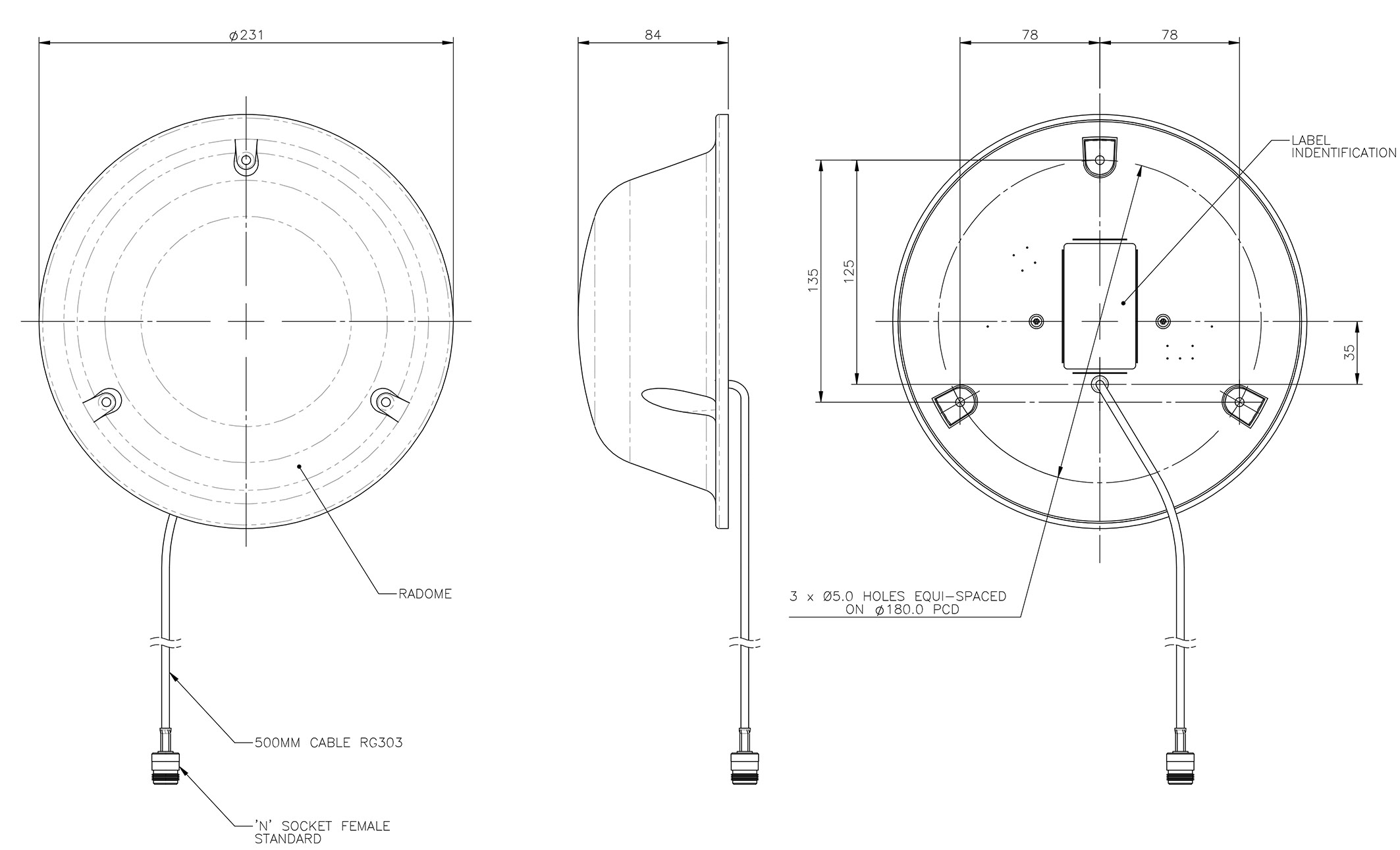

Dimensional Drawing
