Active Receiving Antenna for 10 kHz – 110 MHz for Communication Purposes

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

AAC 1/...

Quickly identify the correct ordering code.

AAC 1/…
Electrical
Power Supply 12 – 15 V DC (with JB 230 or JB 115)
Model AAC 1/…
Frequency 10 kHz – 110 MHz
Antenna Type Broadband active receiving antenna for communication purposes
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
Output 3. Order Intercept point (OIP3) > 27 dBm
Antenna Factor Typ. 0.25 mV output in 50 Ω by a field strength of 1 m V/m
Impedance 50 Ω
Output 2. Order Intercept point (OIP2) > 34 dBm
1 dB Compression Point Typ. occurring at a field strength of 3.5 V/m
VSWR < 2.0:1
Cross Modulation 40 dB cross modulation attenuation typically occurring at field strength of 1.0 V/m from an interfering source
Maximum Field Strength 90 V/m
Current Consumption Approx. 60 mA
Amplifier Protection Spark gap
Environmental
Operating temperature range -30 °C to +60 °C
Relative Humidity Up to 95% (non-condensing)
Ingress Protection IP53
Mechanical
Wind Area 0.0259 sq. m / 0.28 sq. ft
Connection(s) N(f)
Materials Shroud : Glass fibre and chromed brass
MA housing : Lexan amd chromed brass
Colour Marine white
Historic Brand Amphenol Procom
Dimensions 120 x 130 x 59 mm / 4.72 x 5.12 x 2.32 in. (connectors included)
Height Approx. 920 mm / 36.22 in.
Wind Load 28.8 N (160 km/h)
Dia. At Top End 7 mm / 0.28 in.
Weight Approx. 0.6 kg / 1.32 lb.
Dia. At Bottom End 10 mm / 0.39 in.
Mounting On flat surfaces such as deck or roof or on 30 – 44 mm mast tube using accessory item SM-MAS (not included)
  • This active receiving antenna has been designed for professional use and special emphasis has been placed on obtaining a large dynamic range with excellent cross and intermodulation properties, a low noise figure and a secure protection against RF-overload and violent nearby discharges.
  • The AAC 1/… can be used either where superb listening quality is required or where a high RF-density environment exists, as for instance in connection with MF and HF duplex operation onboard ships, where nearby transmitting antennas may cause excessive field strengths. For complete safety the antenna should, however, not be mounted closer than 15 metres from transmitting antennas.
  • The antenna consists of a high-capacitance glass fibre antenna element and an amplifier built into the antenna mount. The amplifier provides the necessary impedance matching between the high-impedance antenna element and the 50 Ω downlead cable over an extremely wide bandwidth.

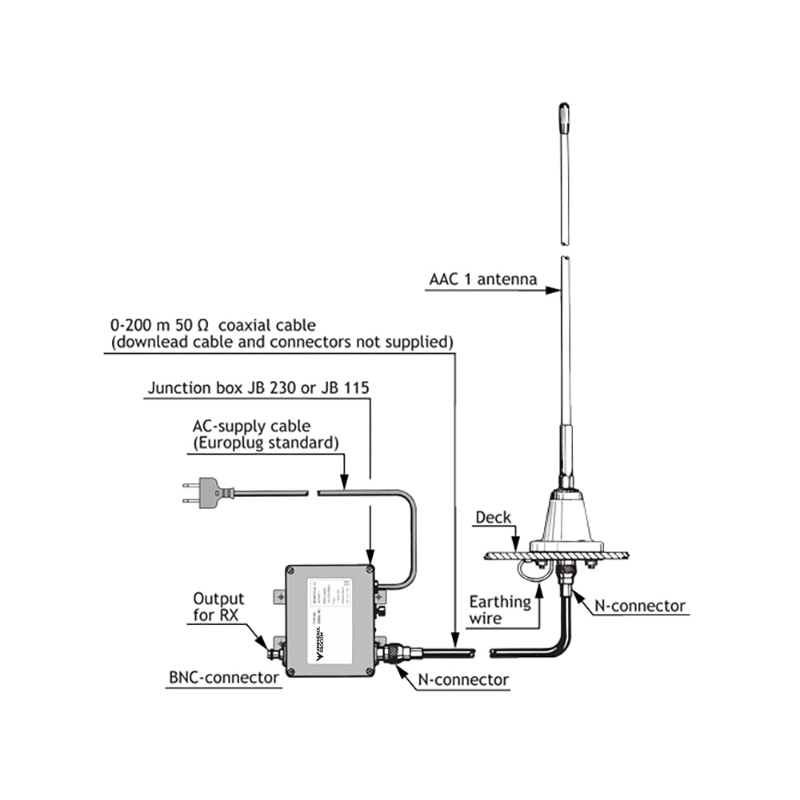

  • The necessary supply voltage (12 – 15 V DC) for the amplifier is delivered through the downlead coaxial cable from the junction box with mains power supply, type JB 230 (230 VAC) or JB 115 (115 VAC), which separates DC and RF-signals. Up to 200 m of RG 213/U coaxial cable can be used between antenna and junction box with only minor degrading effects.
  • The earthing wire (see drawing) ensures a low loss connection to ground for RF-signals, and thereby also prevents noise pick-up from the ship’s installations running on the outside of the coaxial cable. As the earthing wire is AC-coupled, electrolytic corrosion is effectively prevented.
  • By careful choice of materials, the AAC 1/… is designed to withstand the roughest of climate conditions, ensuring many years of trouble-free service.
  • Extended amplifier frequency range makes it possible also to receive FM-radio (88 – 108 MHz).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

AAC 1/JB 230

 100000160 AAC 1/JB 230

AAC 1/JB 115

 100000438 AAC 1/JB 115

Login required

You need to be logged in into your account to view downloadable documents.

Junction Box / Power Supply
DETAILS
MODELS JB 230 (230 V)
JB 115 (115 V)
SUPPLY VOLTAGE 230 V or 115 V AC, 50 – 60 Hz
(please refer to ordering designations)
DC-VOLTAGE FOR ANTENNA 15 V unloaded,
approx. 12 – 15 V with antenna
POWER CONSUMPTION Approx. 7.5 W
TEMP. RANGE -30 ˚;C → +60 ˚;C
CONNECTORS In: N(f)
Out: BNC(f)
“ON” INDICATOR Red LED
FUSE 5 x 20 mm
50 mA/250 V Antisurge (JB 230)
100 mA/250 V Antisurge (JB 115)
SUPPLY CABLE 1.5 m, unterminated
MATERIAL Aluminium
SURFACE TREATMENT Light-grey vinyl painted
WEIGHT Approx. 650 g / 1.43 lb.
DIMENSIONS
(W x D x H)		 120 x 130 x 59 mm / 4.72 x 5.12 x 2.32 in.
(connectors included)

Box Installation Details

Mounting on Flat Surfaces

“

EU and UK Declaration of Conformity

Hereby Amphnol Procom declare that the product type AAC 1/… is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-AAC1.pdf
