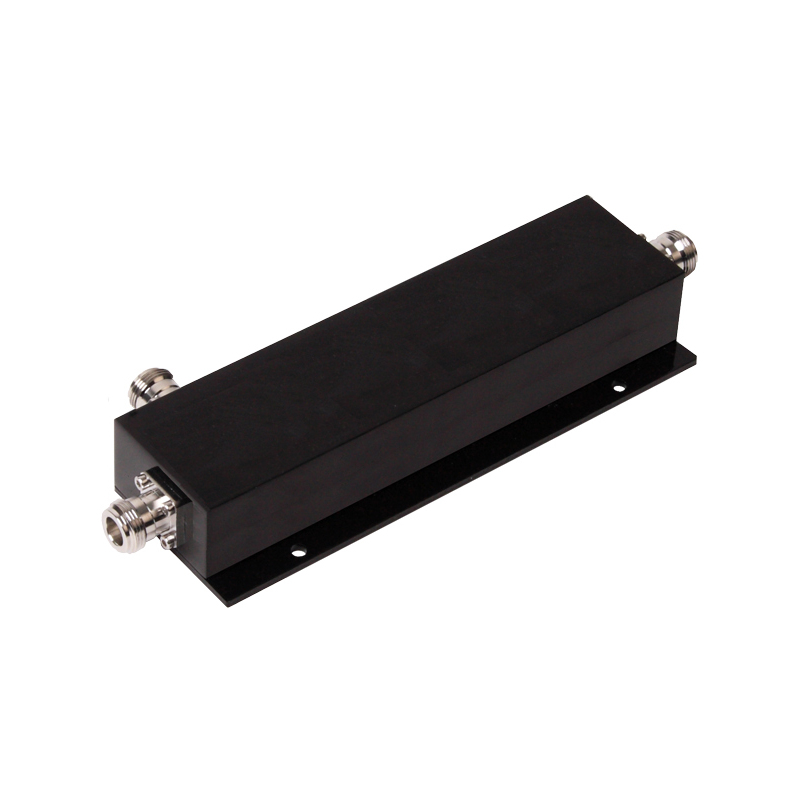

ADC-xx-WBS-LP-43F-CC

Directional Coupler 400 W

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

ADC-xx-WBS-LP-43F-CC

Quickly identify the correct ordering code.

ADC-xx-WBS-LP-43F-CC
Electrical
Frequency 380 – 2700 MHz
Max. Input Power 400 W
Peak Input Power 1.3 kW
Coupling
3 dB6 dB10 dB15 dB20 dB30 dB
Coupling Tolerance ± 1.2 dB
Insertion Loss
≤ 3.6 dB≤ 1.7 dB≤ 0.7 dB≤ 0.4 dB≤ 0.3 dB≤ 0.2 dB
Impedance 50 Ω
Application Indoor / Outdoor
Isolation
≥ 23 dB≥ 26 dB≥ 30 dB≥ 35 dB≥ 40 dB≥ 50 dB
VSWR < 1.25:1
Passive Intermodulation < -153 dBc (2 x 43 dBm)
Dissipative Loss
≤ 0.2 dB≤ 0.15 dB≤ 0.1 dB≤ 0.1 dB≤ 0.1 dB≤ 0.1 dB
Environmental
Operating temperature range -35 °C to +70 °C
Humidity < 95%
Ingress Protection IP65
Mechanical
Plating Silver / Trimetal
Connection(s) 4.3/10(f)
Colour Black
Historic Brand Amphenol Procom
Weight 0.66 kg / 1.46 lb
RoHS Compliant Yes
Mounting 4.5 mm dia. (two holes)
  • Amphenol directional couplers are designed to give optimum performance between 380 – 2700 MHz.
  • Achieving PIM @ -153 dBc, IP 65 rating, makes them ideal for indoor or outdoor environments.
  • Standard coupling values of 3, 6, 10, 15, 20, and 30 dB are available.
  • Connector configurations of 4.3-10-Female.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

3 dB Coupling

 ADC-03-WBS-LP-43F-CC 380 – 2700 MHz

6 dB Coupling

 ADC-06-WBS-LP-43F-CC 380 – 2700 MHz

10 dB Coupling

 ADC-10-WBS-LP-43F-CC 380 – 2700 MHz

15 dB Coupling

 ADC-15-WBS-LP-43F-CC 380 – 2700 MHz

20 dB Coupling

 ADC-20-WBS-LP-43F-CC 380 – 2700 MHz

30 dB Coupling

 ADC-30-WBS-LP-43F-CC 380 – 2700 MHz

Login required

You need to be logged in into your account to view downloadable documents.

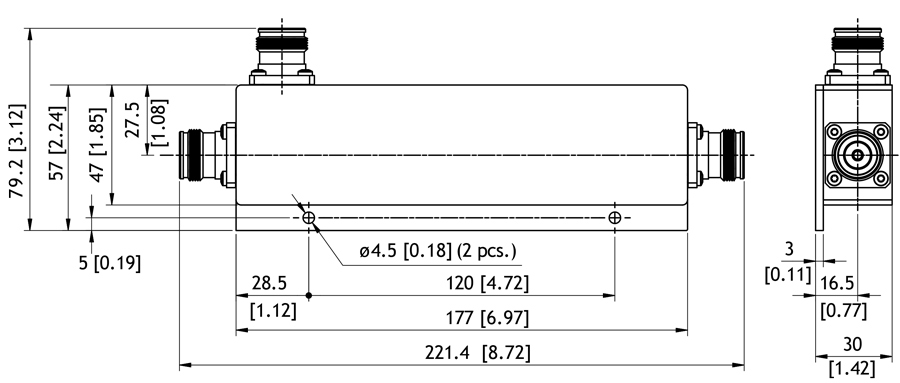

Mounting Details


All dimensions are given in mm [in.]
