AMP 0.1-100

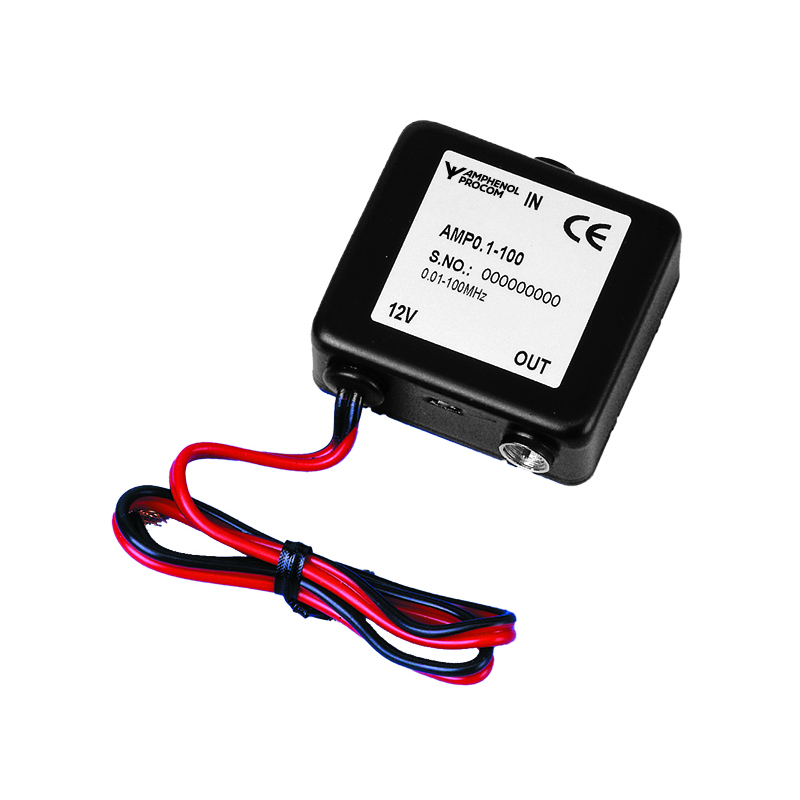

Miniature High Dynamic Range Low noise Amplifier

Find Out More
Data Sheet
CE Certification

Other Files

AMP 0.1-100
Electrical
Power Supply 11–18 V @ 12 V; 30 mA
Model AMP 0.1-100
Frequency 0.1 – 100 MHz
Noise Figure < 2.7 dB @ 80 MHz
Output 3. Order Intercept point (OIP3) +25 dBm
P1dB +15 dBm
Gain Typ. 18 dB
Output-Input Isolation > 25 dB
Input VSWR Max. 2.0:1 typ. ≤ 1.7:1
Output VSWR Max. 2.0:1 typ. ≤ 1.7:1
Mechanical
Connection(s) FME(m), 2 pcs. + flexible wire
Historic Brand Procom
Dimensions 50 x 40 x 20 mm / 1.96 x 1.57 x 0.78 in.
Weight Approx. 0.065 kg / 0.14 lb.
  • Miniature high dynamic range low-noise amplifier
  • Very high P1dB-compression point.
  • Very high 3rd order intercept point ≥ +25 dBm.
  • To be used where extra preamplification is needed:
  • receivers with long antenna cabling
  • measuring instruments
  • multicoupler systems
  • scanners.
  • Low noise figure < 3 dB.
  • 12 V operational voltage.
  • Provided with FME(m) connector on input and output.

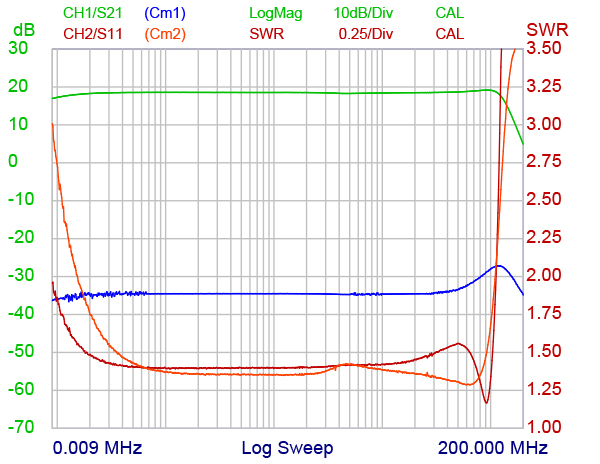

TYPICAL GAIN CURVE

REVERSE GAIN CURVE

TYPICAL SWR OUTPUT

TYPICAL SWR INPUT

Model Product No. Add To Quote
Miniature High Dynamic Range Low noise Amplifier 200000899

Login required

You need to be logged in into your account to view downloadable documents.

Typical Response Curve

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type AMP 0.1-100 is in compliance with EU Directive 2014/53/EU
and the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

http://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-AMP_0.1-100.pdf
