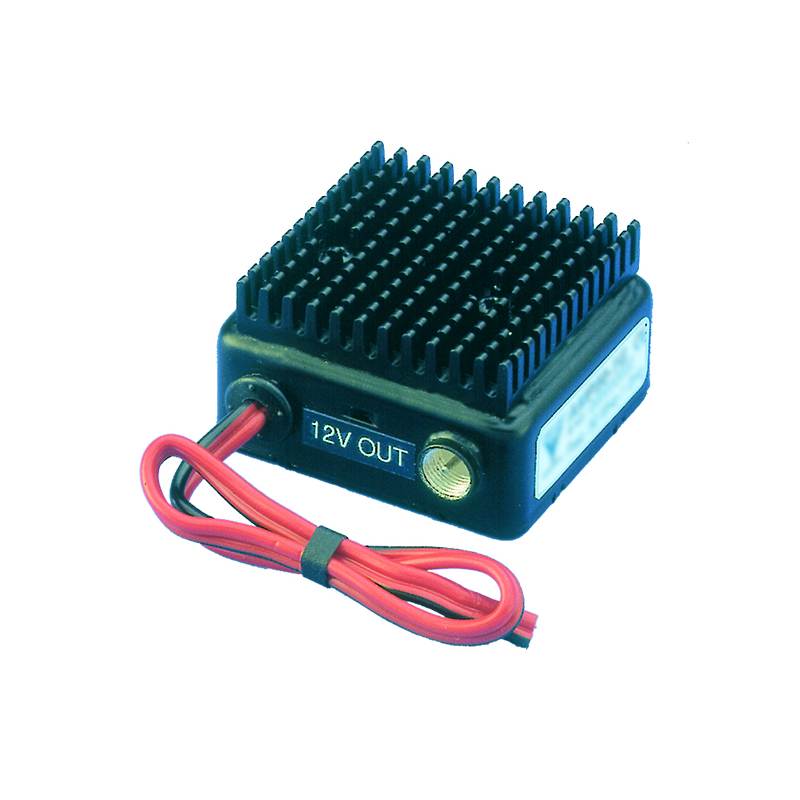

AMP 50-1.6G

Miniature Ultra-High Dynamic Range Low Noise Amplifier

Find Out More
Data Sheet
CE Certification

Other Files

AMP 50-1.6G
Electrical
Power Supply 11–14 V @ 12 V; 200 mA
Model AMP 50-1.6G
Frequency 50 – 1600 MHz
Amp. Gain 14 dB ±2 dB
Noise Figure ≤ 5.0 dB, typ. 4.0 dB @ 400 MHz
Output 3. Order Intercept point (OIP3) ≥ 40 dBm
P1dB > 23 dBm
Max. Input Power (dBm) 100 mW / +20 dBm
Input VSWR Max. 2.0
Input-Output Isolation > 17 dB
Output VSWR Max. 2.5
Environmental
Operating temperature range -30 °C to +50 °C
Mechanical
Connection(s) FME(m) 2 pcs. + flexible wire
Historic Brand Procom
Dimensions 50 x 36 x 50 mm (incl. connectors) /
1.96 x 1.41 x 1.96 in.
Weight Approx. 0.095 kg / 0.21 lb.
  • Miniature ultra-high dynamic range low-noise amplifier.
  • Ultra-high P1dB-compression point.
  • Ultra-high 3rd order intercept point.
  • To be used where extra amplification is needed:
  • Receivers with long antenna cabling
  • Measuring instruments
  • Multicoupler systems
  • Scanners.
  • Low noise figure.
  • 12 V operational voltage.
  • Provided with FME-male connector on input and output.
  • Can be DC powered in two ways witout any switching:
  • Via the red/black DC cable
  • From phantom voltage on the RF output port.

TYPICAL RESPONSE CURVES

Model Product No. Add To Quote
Miniature Ultra-High Dynamic Range Low Noise Amplifier 200001113

Login required

You need to be logged in into your account to view downloadable documents.

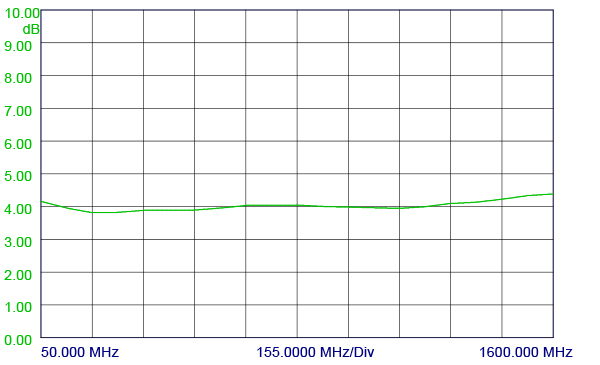

Typical Noise Figure

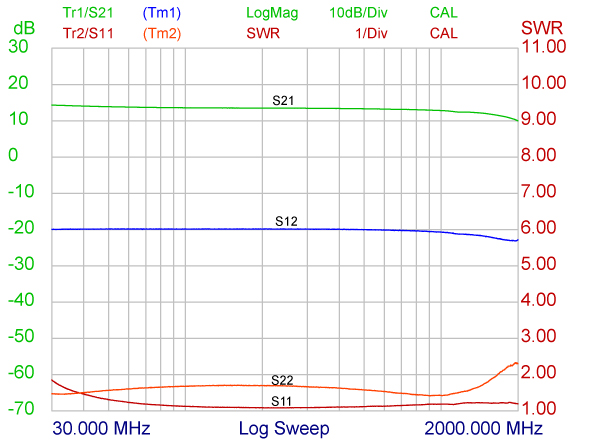

Typical response curve

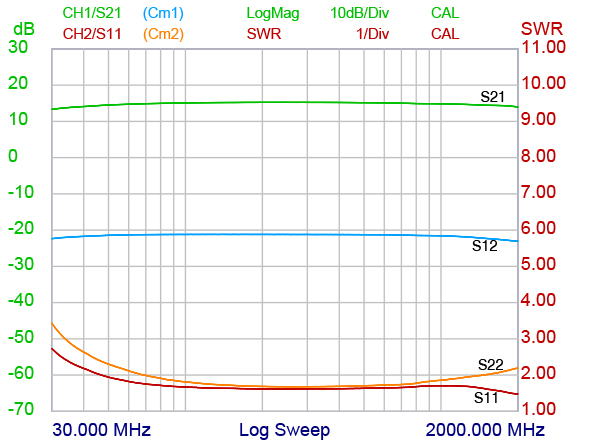

AMP 50 1.6G Curves

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type AMP 50-1.6G is in compliance with EU Directive 2014/53/EU
and the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-AMP_50-1.6G.pdf
