AP 195 LSZH
Electrical
Model AP 195 LSZH
Velocity Factor 80%
Capacitance 79.8 pF/m
Impedance 50 ±2 Ω
Attenuation > 90 dB
Cut-Off Frequency 41.0 GHz
Return Loss 30 – 3000 MHz : >20 dB
3000 – 6000 MHz : >15 dB
6000 – 7500 MHz : >13 dB
Environmental
Operating temperature range -40° C to +80 °C
Storage temperature range -70° C to +85° C
Environmental Standard UN/ECE-118
Mechanical
Insulation Resistance 5000 MΩ*km
Inner Conductor Dia/Matl 0.94 ± 0.02 mm / Bare Copper
Dielectric 2.79 ± 0.10 mm / Foamed PE
Outer Conductor Dia/Matl 3.53 mm / Bonded APA + Tinned copper (95% Coverage)
Historic Brand Amphenol Procom
Min. Bending Radius 12.7 mm
Jacket Dia/Matl 4.95 ± 0.20 mm / LSZH
Installation Temperature Range -25° C to +80° C

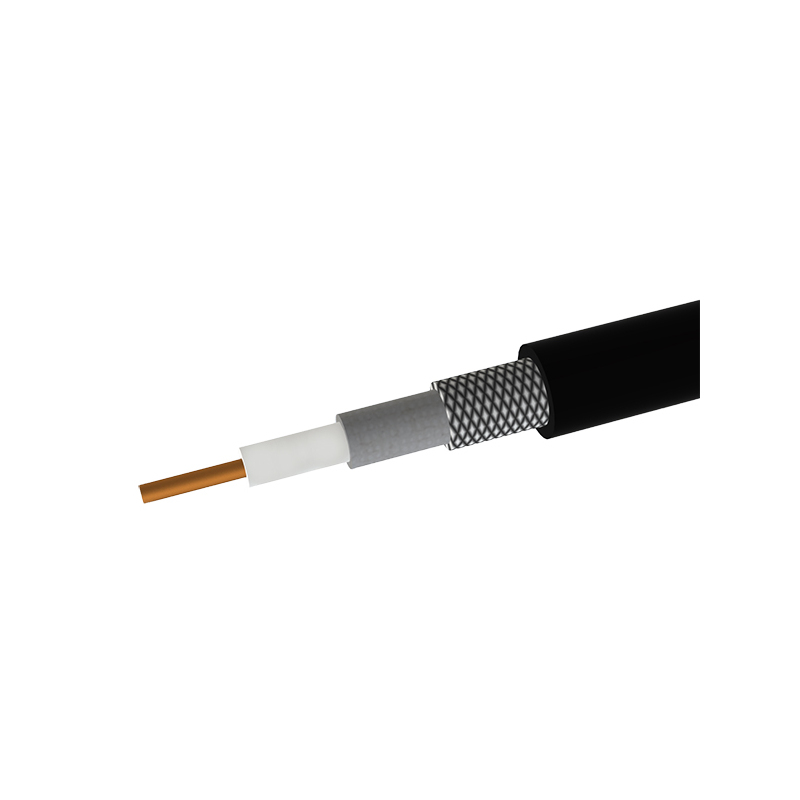

  • The Amphenol Procom cable AP 195 is a 50-Ohm low smoke zero halogen cable and is a high-performance, ultra-broadband, flexible, low-loss RF coaxial cable.
  • The AP 195 is able to cover frequencies up to 7.5 GHz and supports multiple technologies such as HF, VHF, UHF, TETRA, LTE, 5G, and the latest Wi-Fi 6E & Wi-Fi 7 frequencies.
  • The cable can be used for indoor or outdoor applications. AP 195 is fire retardant to the ECE R118.02 and IEC 60332-1-2 standard.
  • Low smoke zero halogen cable and fire-retardant cable meeting the IEC 60332-1-2 standard.
  • Double braided shielding.
  • Ultra-wideband covering up to 7.5 GHz.
  • The cable can be used for indoor or outdoor applications.
  • ECE R118.02 approved cable.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
AP 195 LSZH Cable AP 195 LSZH

Login required

You need to be logged in into your account to view downloadable documents.

Properties of cables
Properties
Smoke Density Dm4 Max. 150 / ASTM E662 / IEC 61034
Toxicity Index Max 5 / NES713
Halogen Acid Gas Evolution 0.5% Max. / IEC60754-1 , IEC60754-2
Flame Retardent acc. IEC 60332-1-2
ECE R118.02 approved cable
Typical Attenuation Values
ATTENUATION
Frequency Typical [dB/100m] Average power (KW)
30 MHz 6.5 0.89
50 MHz 8.4 0.68
150 MHz 14.6 0.39
220 MHz 17.7 0.32
450 MHz 25.5 0.22
900 MHz 36.5 0.16
1500 MHz 47.7 0.12
1800 MHz 52.5 0.11
2000 MHz 55.4 0.10
2500 MHz 62.4 0.09
3000 MHz 74.7 0.085
4000 MHz 89.9 0.08
4500 MHz 96.2 0.075
5000 MHz 102.8 0.07
5200 MHz 105.3 0.067
5500 MHz 108.5 0.067
5800 MHz 112.2 0.06
6000 MHz 114.4 0.058
6500 MHz 119.74 0.054
7000 MHz 124,91 0.050
7500 MHz 130.26 0.046

The attenuation is typical value, maximum value shall be 105% of the typical attenuation value.
