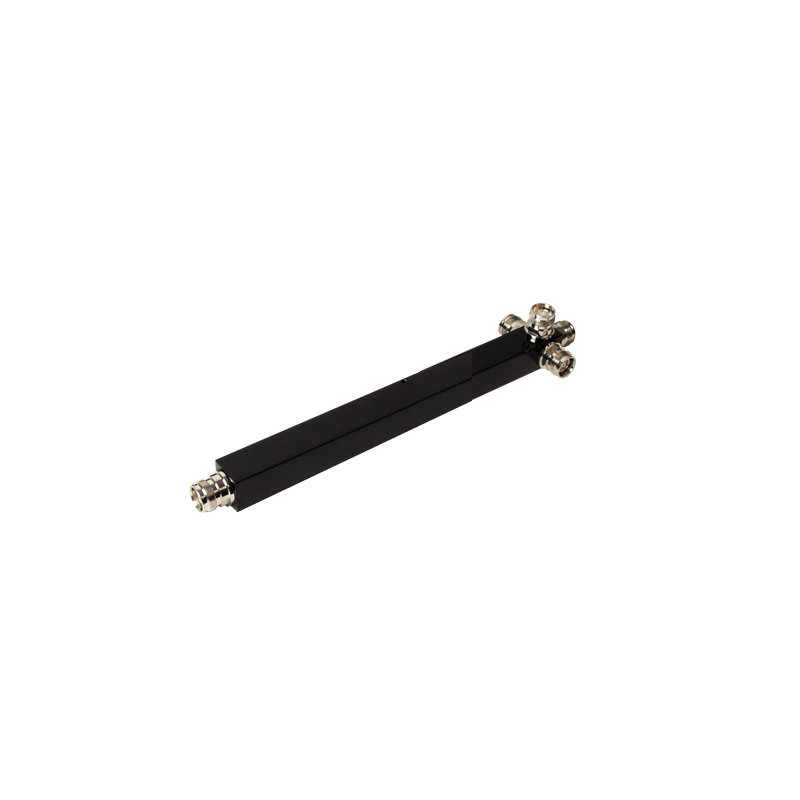

APS-xx-WBM-LP-43F-CC

Power Splitter 500 W

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

APS-xx-WBM-LP-43F-CC

Quickly identify the correct ordering code.

APS-xx-WBM-LP-43F-CC
Electrical
Model
APS-02-WBM-LP-43F-CCAPS-03-WBM-LP-43F-CCAPS-04-WBM-LP-43F-CC
Frequency 698 – 2700 MHz
Max. Input Power 500 W
Peak Input Power 1.3 kW
Insertion Loss
< 0.2 dB< 0.3 dB< 0.4 dB
Impedance 50 Ω
Application Indoor / Outdoor
Split Loss
3 dB4.8 dB6 dB
VSWR
< 1.2:1< 1.25:1< 1.3:1
Passive Intermodulation < -153 dBc (2 x 43 dBm)
Environmental
Operating temperature range -35 °C to +70 °C
Humidity < 95%
Ingress Protection IP65
Mechanical
Plating Silver / Trimetal
Connection(s) 4.3/10(f)
Historic Brand Amphenol Procom
Weight
Approx. 0.35 kg / 0.77 lb.Approx. 0.39 kg / 0.86 lb.Approx. 0.43 kg / 0.95 lb.
RoHS Compliant Yes
Mounting 3.2 mm / 0.13 in.dia. (four holes)
  • Amphenol Power Splitters covers the bands of 698 – 2700 MHz with a PIM value of -153 dBc.
  • Average max. power of 500 W.
  • Mechanically sound and robust which will allow these to be utilised indoors and outdoors with a IP 65 rating.
  • Connectors configurations of 4.3-10-Female.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

2-Way Divider

 APS-02-WBM-LP-43F-CC 698 – 2700 MHz

3-Way Divider

 APS-03-WBM-LP-43F-CC 698 – 2700 MHz

4-Way Divider

 APS-04-WBM-LP-43F-CC 698 – 2700 MHz

Login required

You need to be logged in into your account to view downloadable documents.

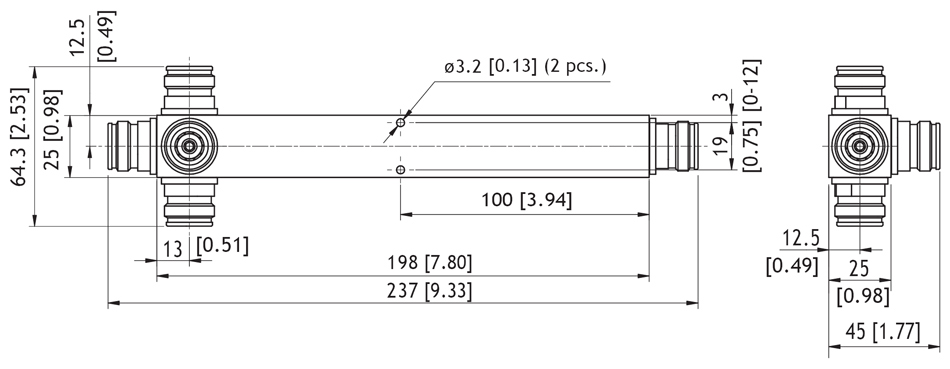

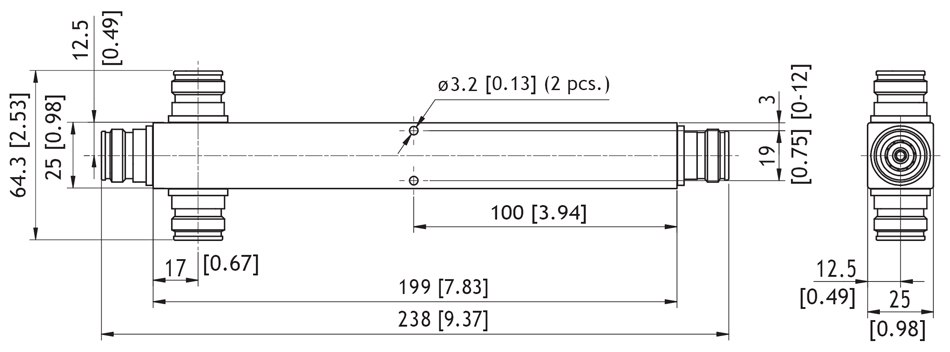

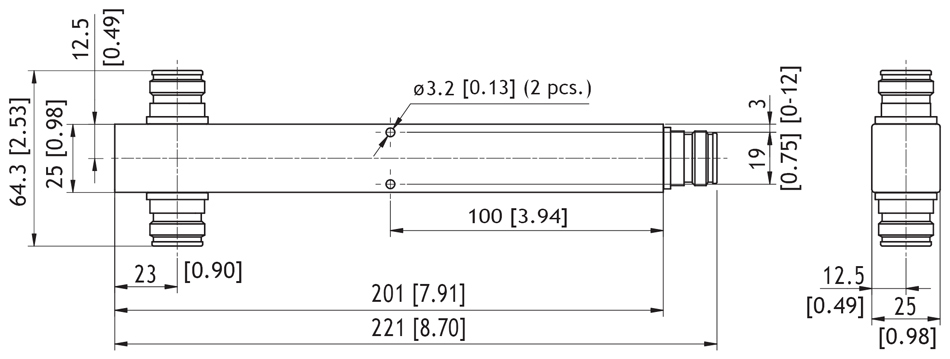

Mounting details

APS-02-WBM-LP-43F-CC

APS-03-WBM-LP-43F-CC


APS-04-WBM-LP-43F-CC

All dimensions are given in mm [in.]
