APS-xx-WBS-LP-DF-CC

Power Splitter 500 W

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

APS-xx-WBS-LP-DF-CC

Quickly identify the correct ordering code.

APS-xx-WBS-LP-DF-CC
Electrical
Model
APS-02-WBS-LP-DF-CCAPS-03-WBS-LP-DF-CCAPS-04-WBS-LP-DF-CC
Frequency 380 – 2700 MHz
Max. Input Power 500 W
Peak Input Power 1.5 kW
Insertion Loss
0.22 dB0.3 dB0.4 dB
Impedance 50 Ω
Application Indoor / Outdoor
Split Loss
3 dB4.8 dB6 dB
VSWR
< 1.25:1< 1.25:1< 1.3:1
Passive Intermodulation < -153 dBc (2 x 43 dBm)
Environmental
Operating temperature range -35 °C to +70 °C
Humidity < 95%
Ingress Protection IP65
Mechanical
Connection(s) 7/16 DIN(f)
Colour Black
Historic Brand Amphenol Procom
Weight
Approx. 1.3 kg / 2.91 lb.Approx. 1.74 kg / 3.85 lb.Approx. 1.93 kg / 4.27 lb.
RoHS Compliant Yes
Mounting 4 mm / 0.18 in. dia. (four holes)
  • Amphenol Power Splitters covers the bands of 380 – 2700 MHz with a
  • PIM value of -153 dBc.
  • Average max. power of 500 W.
  • Mechanically sound and robust which will allow these to be utilised indoors and outdoors with a IP 65 rating.
  • Connectors configurations of 7/16-DIN-Female.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

2-Way Divider

 APS-02-WBS-LP-DF-CC 380 – 2700 MHz

3-Way Divider

 APS-03-WBS-LP-DF-CC 380 – 2700 MHz

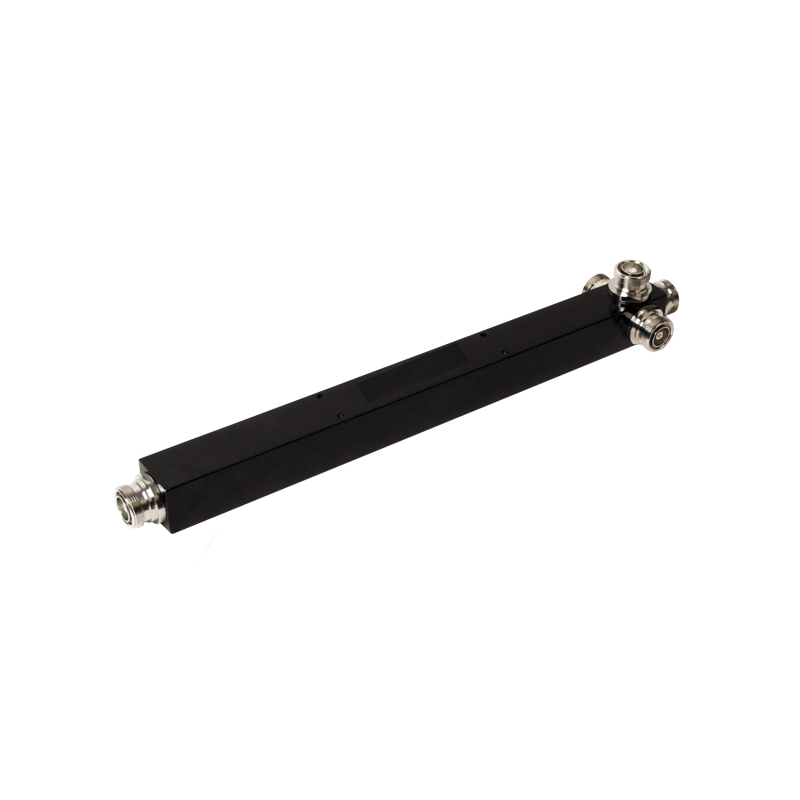

4-Way Divider

 APS-04-WBS-LP-DF-CC 380 – 2700 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Mounting details

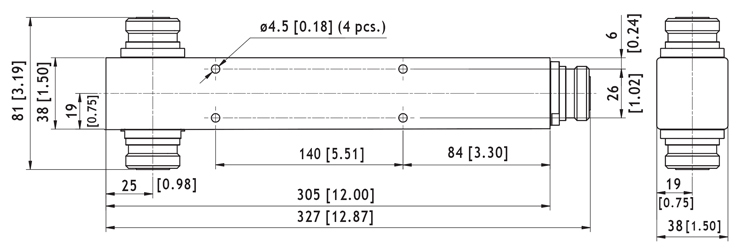

APS-02-WBS-LP-DF-CC

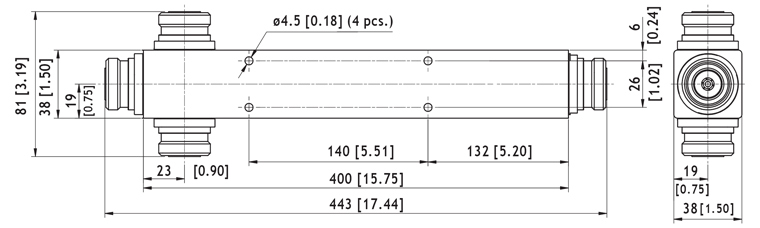

APS-03-WBS-LP-DF-CC

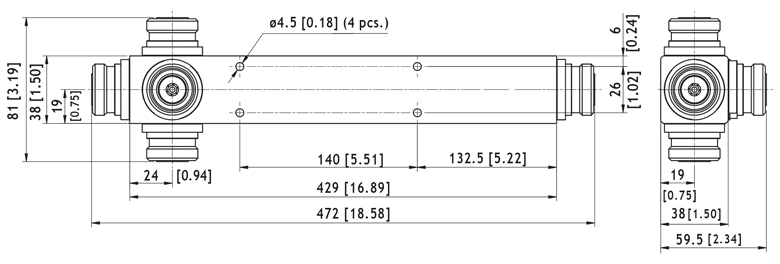

APS-04-WBS-LP-DF-CC

All dimensions are given in mm [in.]
