ATEX Grounding Kit

Universal ATEX grounding kit for LW-SS, LW-SS-1” and C mounting bracket

Find Out More
Data Sheet
CE Certification

Other Files

ATEX Grounding Kit
Electrical
Model ATEX Grounding kit
Application To ensure equipotential bonding
Mechanical
Materials Stainless steel (AISI 316)

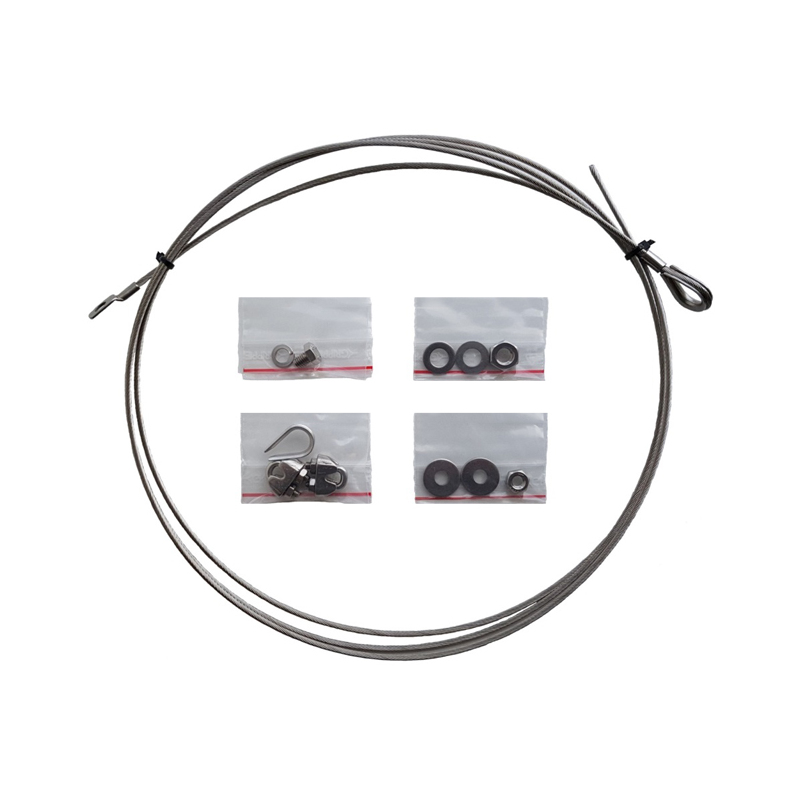

Parts 1x wire, 1x spring washer, 1x M6x8mm bolt, 1x thimble and 2x wire lockes.
For LW-SS-bracket: 2x M6 washer, 1x M6 nut,
For C-bracket: 2x M6 washer, 1x M8 nut.
Wire Length 2 m / 78.74 in.
Historic Brand Amphenol Procom
Weight Approx. 0.15 kg / 0.33 lb.
Mounting See the ATEX Produkt Manual
  • The ATEX grounding kit is to be used to ensure equipotential bonding if the point of installation has a different electrical potential than the system.
  • Can only be used with Procom ATEX antennas.
  • The wire and the accompanying parts are made of marine grade stainless steel (AISI 316)
  • It’s only necessary to install the wire on the LW-SS and LW-SS-1” bracket, when the point of installation has a different electrical potential than the system.
  • The ATEX grounding kit can be used for all models of ATEX antennas.
  • Instructions on how to install the wire kit, see the ATEX Product Manual.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Universal ATEX grounding kit for LW-SS, LW-SS-1” and C mounting bracket 115000100
