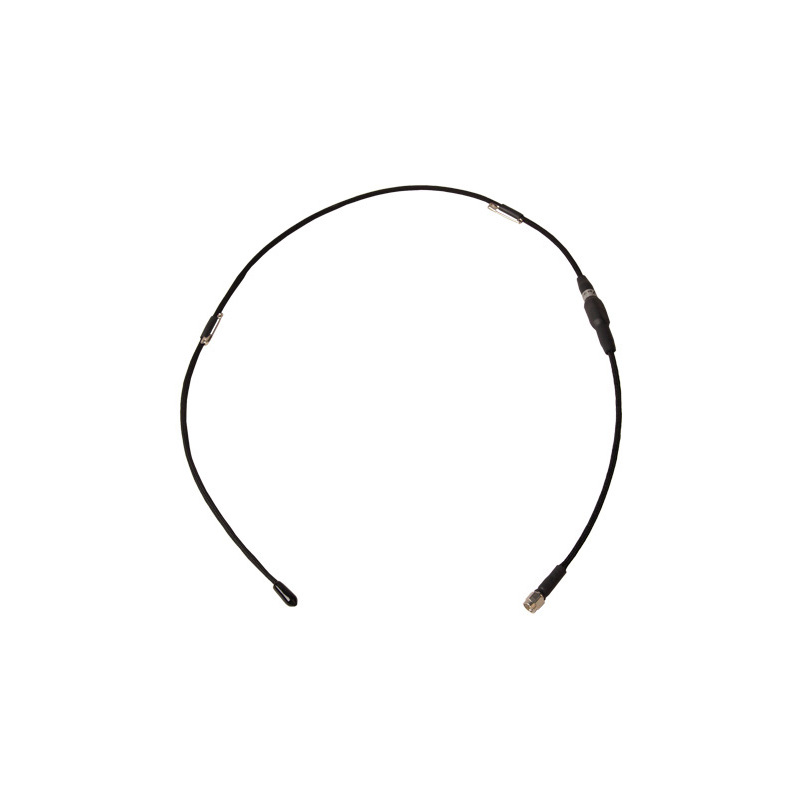

BA 160/GPS

Dual Band Body Antenna

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

BA 160/GPS

Quickly identify the correct ordering code.

BA 160/GPS
Electrical
Model BA 160/GPS
Frequency 160 MHz : 150 – 170 MHz
GPS: 1575 MHz
Antenna Type ½ λ antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 160 MHz : 0 dBi (-5 dBi mounted on the body)
VSWR 160 MHz : < 2.5 :1 when mounted in coat collar
Bandwidth 160 MHz : ≥ 20 MHz @ VSWR ≤ 2.5:1
Mechanical
Connection(s) SMA(m) or SMA(f)
Materials Coax cable with black sleeving
Colour Black
Historic Brand Procom
Height 860 mm / 33.86 in.
Weight Approx. 0.023 kg / 0.05 lb.
Mounting Attached to clothing with two safety pins
    • Radio communication for the 160 MHz band and GPS-reception in one Antenna.
    • Highly flexible covert coax antenna with black sleeving.
    • ½ λ skirt dipole antenna.
    • Covert flexible body antenna, supporting free movement.
    • Highest quality materials in an elegant design.
    • Antenna available with SMA (male) or SMA (female) connector.

3D GAIN PLOT *

* When antenna is mounted in front of chest.

* When antenna is mounted in front of chest.

Mounted on the body

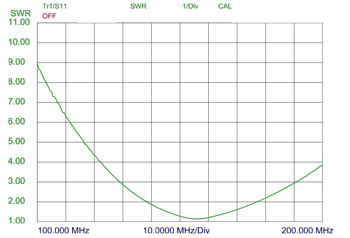

Typical VSWR curve

* When antenna is mounted in front of chest.

* When antenna is mounted in front of chest.

Model Product No. Model Add To Quote

BA 160/GPS

 140000434 BA 160/GPS

BA 160/GPS-SMA(f)

 140000626 BA 160/GPS-SMA(f)

BA 160/GPS White

 140000698 BA 160/GPS White
