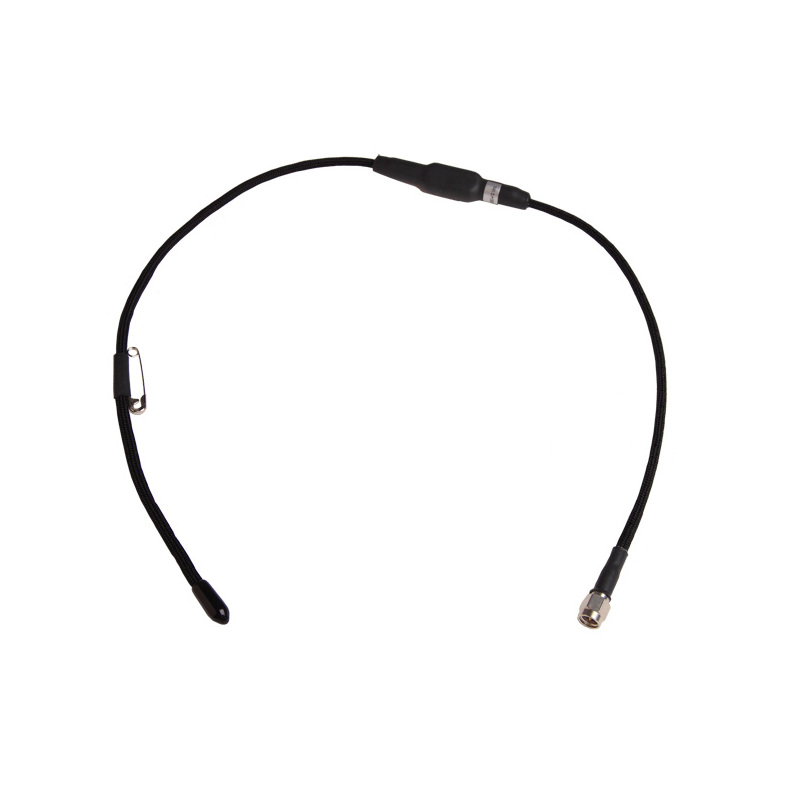

BA 450/GPS

Dual Band Body Antenna for TETRA Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

BA 450/GPS

Quickly identify the correct ordering code.

BA 450/GPS
Electrical
Model BA 450/GPS
Frequency 400 MHz : 380 – 490 MHz covered by three models
GPS : 1575 MHz
Antenna Type ½ λ antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 400 MHz : 0 dBi (-5 dBi mounted on the body)
VSWR 400 MHz : < 2.5 :1 when mounted in coat collar
Bandwidth 400 MHz : ≥ 50 MHz @ VSWR ≤ 2.5:1
Mechanical
Connection(s) SMA(m) or SMA(f)
Materials Coax cable with black sleeving
Colour Black
Historic Brand Procom
Height Approx. 550 mm / 21.65 in.
Weight Approx. 0.018 kg / 0.04 lb.
Mounting Attached to clothing with one safety pins
  • Radio Communication for the 400 MHz Band and GPS-reception in one antenna.
  • Highly flexible covert coax antenna with black sleeving.
  • Reduced ½ λ skirt dipole antenna.
  • Covert flexible body antenna, supporting free movement.
  • Highest quality materials in an elegant design.

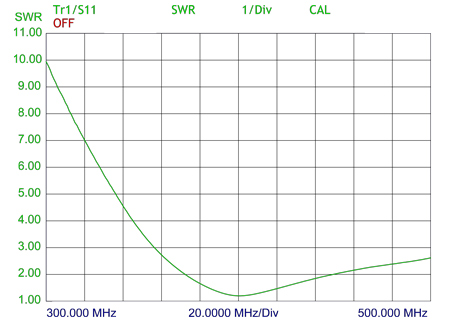

TYPICAL SWR CURVE

MOUNTED ON THE BODY

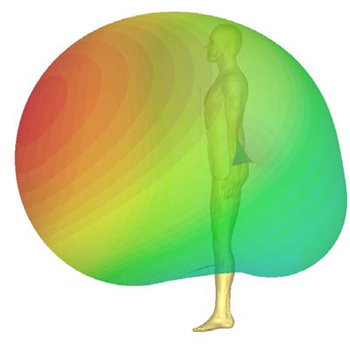

3D GAIN PLOT *

* When antenna is mounted in front of chest.

* When antenna is mounted in front of chest.

Model Product No. Frequency Add To Quote

BA 450/GPS/380-430

 140000608 380MHz – 430MHz

BA 450/GPS/425-475

 140000613 425MHz – 475MHz

BA 450/GPS/440-490

 140000607 440MHz – 490MHz

Login required

You need to be logged in into your account to view downloadable documents.

Typical VSWR Curve

BA 450!GPS SWR curve

Mounted on the Body

BA GPS 160 mand

3D Gain Plot *

BA 160 GPS simulering

* When antenna is mounted in front of chest.
