BPBR 2/…-200 / BRBP 2/…-200

Band-Pass/Band-Reject Filters for the 150 MHz Band

Other Files

Electrical
Model	BPBR 2/1-200BPBR 2/2-200BPBR 2/3-200
Frequency	140 – 175 MHz
Max. Input Power	300 W @ 0.5 dB IL 125 W @ 2.0 dB IL300 W @ 1.0 dB IL 125 W @ 4.0 dB IL300 W @ 1.5 dB IL 125 W @ 6.0 dB IL
Insertion Loss	Adjustable 0.3 – 2.0 dBAdjustable 0.6 – 4.0 dBAdjustable 0.9 – 6.0 dB
Impedance	50 Ω

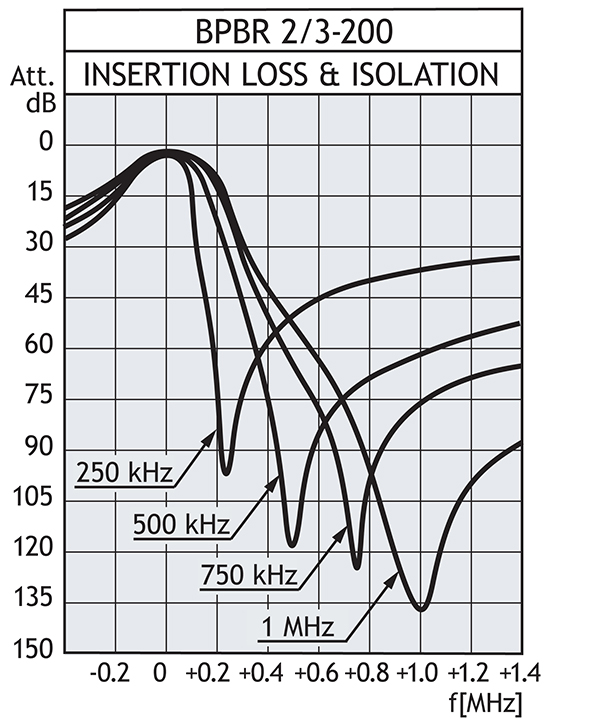

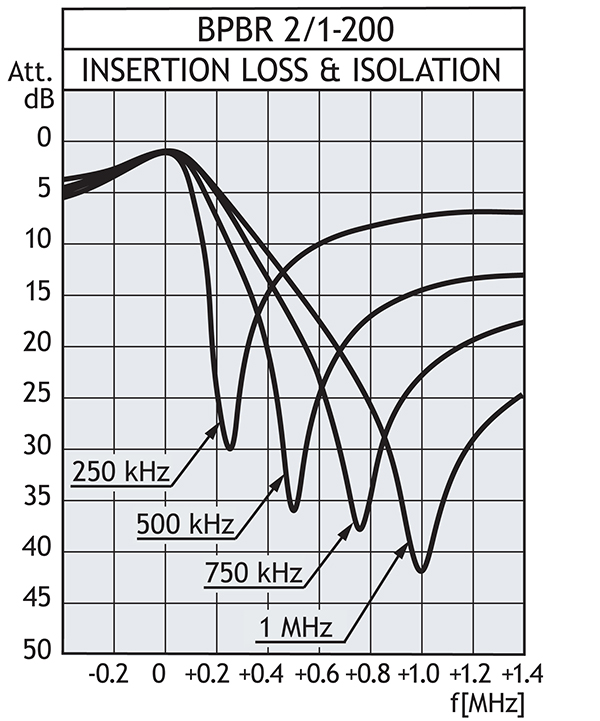

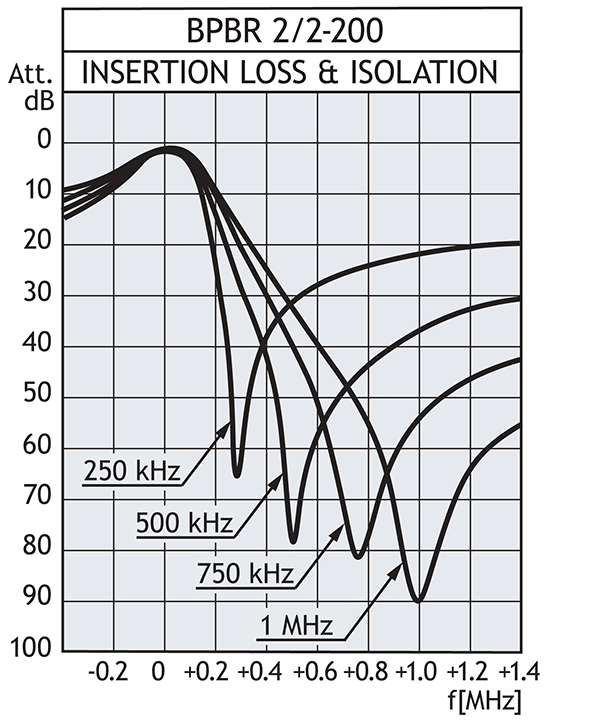

Attenuation	See figure 1See figure 2See figure 3
VSWR	< 1.5:1

Environmental
Frequency Stability	Approx. 1.5 ppm / °C
Operating temperature range	-30 °C to +60 °C

Mechanical
Connection(s)	N(f)
Historic Brand	Amphenol Procom
Dimensions	ø200 x 600 mm ø7.87 x 23.62 in.200 x 400 x 600 mm 7.87 x 15.74 x 23.62 in.200 x 600 x 600 mm 7.87 x 23.62 x 23.62 in.
Weight	Approx. 3.8 kg / 8.38 lb.Approx. 8 kg / 17.64 lb.Approx. 12.4 kg / 27.34 lb.

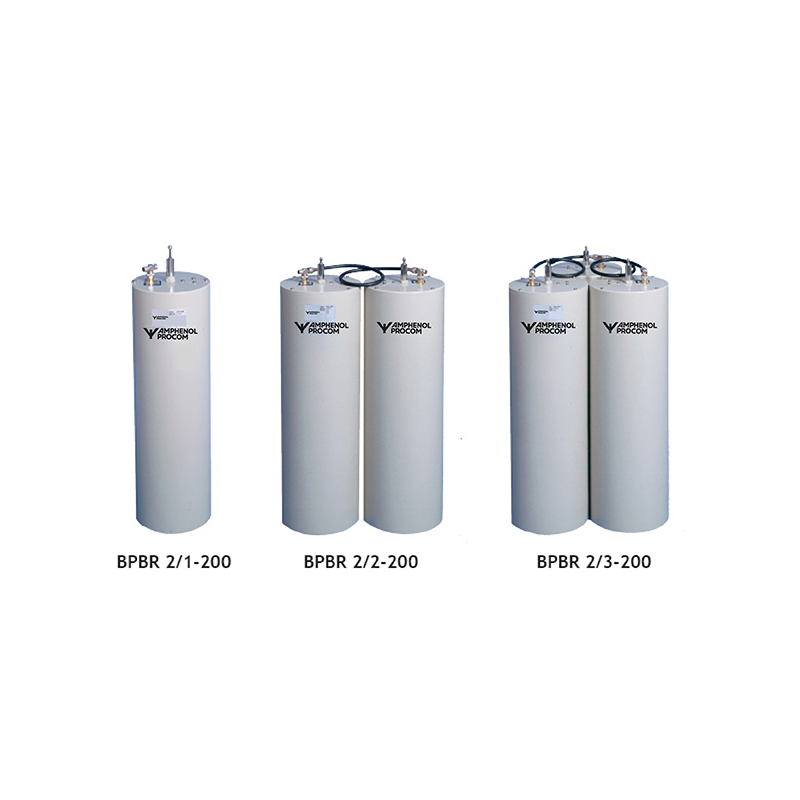

High power base station band-pass/band-reject filters for the 140 – 175 MHz range.
The use of large ø200 mm cavities means a high Q, resulting
in a very narrow pass/reject spacing.
The large dimensions also mean a high power rating.
Unloaded Q of a single cavity is approx. 7000.
High frequency stability on temperature and power.
19” mounting brackets are available as an option.

This product doesn’t have any diagrams yet.

Model	Product No.	Model
BPBR 2/1-200	200001084	BPBR 2/1-200
BPBR 2/2-200	200001082	BPBR 2/2-200
BPBR 2/3-200	200001755	BPBR 2/3-200
BRBP 2/1-200	200001435	BRBP 2/1-200
BRBP 2/2-200	200001441	BRBP 2/2-200
BRBP 2/3-200	200001756	BRBP 2/3-200
