BPBR 2/…-250

Band-Pass/Band-Reject Filters for the 150 MHz Band

Other Files

Electrical
Model	BPBR 2/1-250BPBR 2/2-250BPBR 2/3-250
Frequency	140 – 175 MHz
Max. Input Power	300 W @ 0.5 dB IL 125 W @ 2.0 dB IL300 W @ 1.0 dB IL 125 W @ 4.0 dB IL300 W @ 1.5 dB IL 125 W @ 6.0 dB IL
Insertion Loss	Adjustable 0.3 – 2.0 dBAdjustable 0.6 – 4.0 dBAdjustable 0.9 – 6.0 dB
Impedance	50 Ω
VSWR	< 1.5:1

Environmental
Frequency Stability	Approx. 1.5 ppm / °C
Operating temperature range	-30 °C to +60 °C

Mechanical
Connection(s)	N(f)
Historic Brand	Amphenol Procom
Dimensions	ø250 x 600 mm ø9.84 x 23.62 in.250 x 500 x 600 mm 9.84 x 19.68 x 23.62 in.250 x 750 x 600 mm 9.84 x 29.52 x 23.62 in.
Weight	Approx. 4.3 kg / 9.48 lb.Approx. 8.9 kg / 19.62 lb.Approx. 14 kg / 30.86 lb.

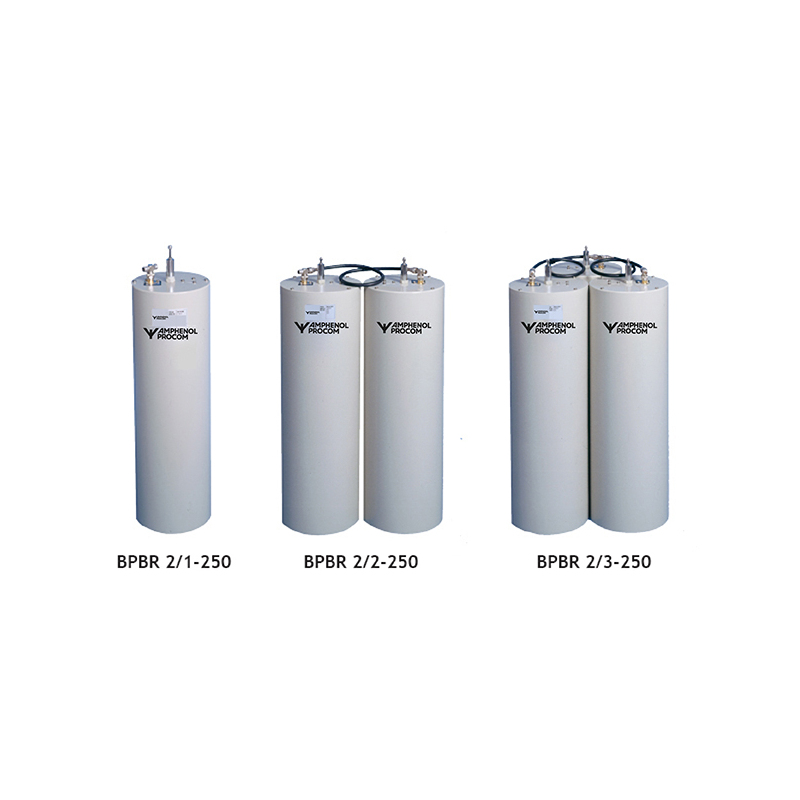

High power base station band-pass/band-reject filters for the 140 – 175 MHz range.
The use of large ø250 mm cavities means a high Q, resulting
in a very narrow pass/reject spacing.
The large dimensions also mean a high power rating.
Unloaded Q of a single cavity is approx. 8000.
High frequency stability on temperature and power.
19” mounting brackets are available as an option..
