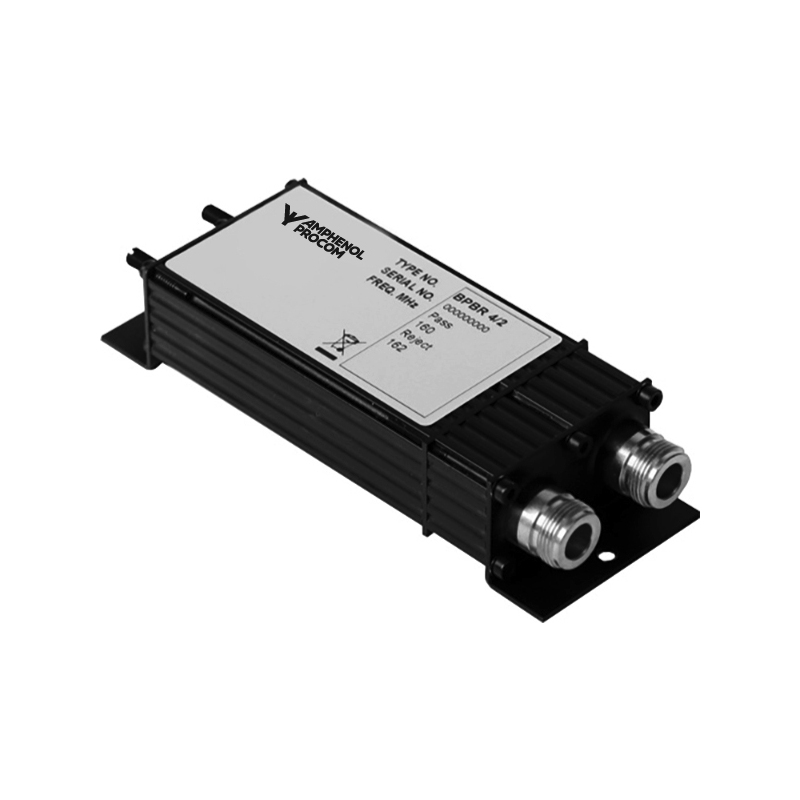

BPBR 4/2 / BRBP 4/2

Band-Pass/Band-Reject Filters for the 80 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

BPBR 4/2 / BRBP 4/2

Quickly identify the correct ordering code.

BPBR 4/2 / BRBP 4/2
Electrical
Model BPBR 4/2 / BRBP 4/2
Filter Type Band-pass / band-reject filters
Frequency 66 – 88 MHz (Option : 88 – 104 MHz)
Max. Input Power @ 2 – 16 MHz spacing : 50 W
@ 1.5 MHz spacing : 35 W
Insertion Loss at 1.5 MHz spacing : < 1.9 dB
at 2.5 MHz spacing : < 1.0 dB
at 3.5 MHz spacing : < 0.7 dB
at 16 MHz spacing : < 0.3 dB
Impedance 50 Ω
Pass-Reject Spacing 1.5 – 16 MHz
Reject Attenuation ≥ 60 dB
VSWR < 1.5:1
Environmental
Frequency Stability Approx. 10 ppm / °C
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f) or BNC(f)
Historic Brand Amphenol Procom
Dimensions 150 x 52 x 33 mm / 5.9 x 2.05 x 1.23 in.
Weight Approx. 0.25 kg / 0.55 lb.
Mounting 4.8 mm dia. (2 pcs.)
  • The BPBR 4/2 and the BRBP 4/2 are 2-cavity pass-reject filters, which pass one frequency or frequency band and reject another in immediate vicinity of the pass frequency.
  • The BPBR 4/2 has the reject range on the high side of the pass frequency and the BRBP 4/2 has the reject range situated on the low side of the pass frequency.
  • These filter types can be used to protect a receiver against interference from a nearby transmitter. The filters are tuned to reject the interfering signal. BPBR-type filters are applied when the spacing between the utility signal and the interfering signal is so small, that the slope steepness of normal band-pass filters or notch filters are not sufficient enough to provide adequate rejection.
  • The standard BPBR-filters can be tuned within the complete 4 m-band with 1.5 to 16 MHz spacing between the operating frequencies. Insertion loss is below 1.0 dB at spacings between 2.5 and 16 MHz. At the narrowest spacing of 1.5 MHz, insertion loss is kept under 1.9 dB.
  • The filters have very small dimensions owing to the use of high-Q helical resonators with discrete-component interconnections.
  • The housing is made of extruded aluminium, the chassis of passivated steel, and the connectors are provided with teflon insulation. The filters are black vinyl coated to prevent corrosion.
  • Careful design and choice of materials ensure reliable operation over a wide temperature range.

TYPICAL RESPONSE CURVES

Model Product No. FrequencyAdditional Information Add To Quote

BPBR 4/2 N(f)

 200001362 Reject High Pass Low

BRBP 4/2 N(f)

 200001488 Pass High Reject Low

BPBR 4/2 BNC(f)

 200001361 Reject High Pass Low

BRBP 4/2 BNC(f)

 200001487 Pass High Reject Low
