BPBR 4/…-200

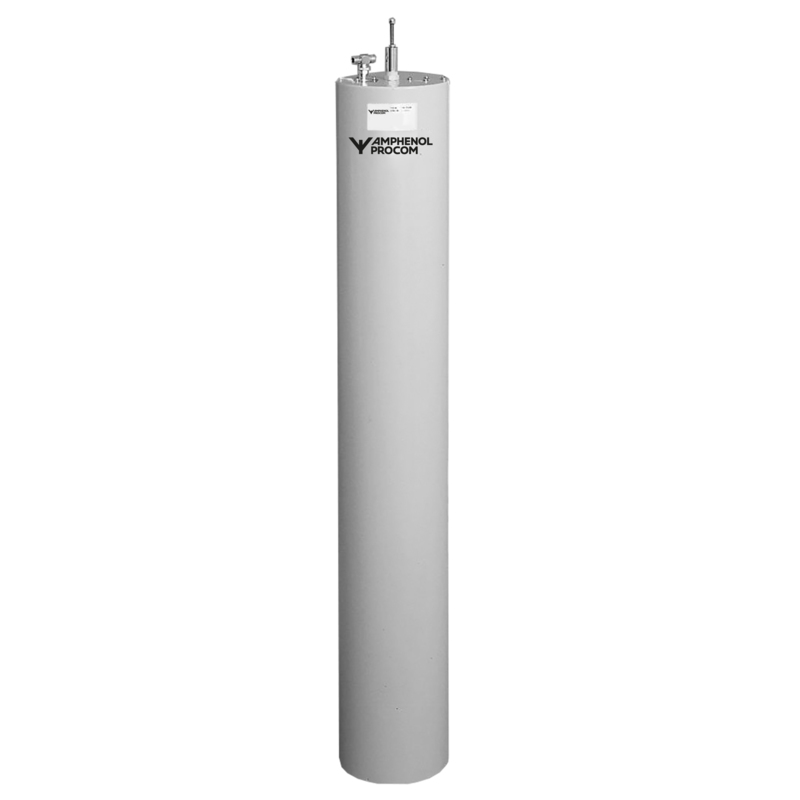

Band-Pass/Band-Reject Filters for the 80 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

BPBR 4/...-200

Quickly identify the correct ordering code.

BPBR 4/…-200
Electrical
Model
BPBR 4/1-200BPBR 4/2-200BPBR 4/3-200
Frequency 66 – 88 MHz
Max. Input Power 250 W
Insertion Loss
Approx. 0.7 dBApprox. 1.4 dBApprox. 2.1 dB
Impedance 50 Ω
Attenuation
See figure 1See figure 2See figure 3
VSWR ≤ 1.5.1
Environmental
Frequency Stability Approx. 1.5 ppm / °C
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions
200 x 1200 mm dia. /
7.87 x 47.24 in. dia.200 x 400 x 1200 mm /
7.87 x 15.74 x 47.24 in.200 x 600 x 1200 mm /
7.87 x 23.62 x 47.24 in.
Weight
Approx. 6.7 kg / 14.77 lb.Approx. 13.7 kg / 30.20 lb.Approx. 20.9 kg / 46.08 lb.
  • High power base station band-pass/band-reject filters for the
  • 66 – 88 MHz range.
  • The use of large ø200 mm cavities means a high Q, resulting
  • in a very narrow pass/reject spacing.
  • The large dimensions also mean a high power rating.
  • Unloaded Q of a single cavity is approx. 7000.
  • High frequency stability on temperature and power.
  • 19” mounting brackets are available as an option.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

BPBR 4/1-200

 200001089 BPBR 4/1-200

BPBR 4/2-200

 200001895 BPBR 4/2-200

BPBR 4/3-200

 200001896 BPBR 4/3-200

Login required

You need to be logged in into your account to view downloadable documents.

Typical Response Curves

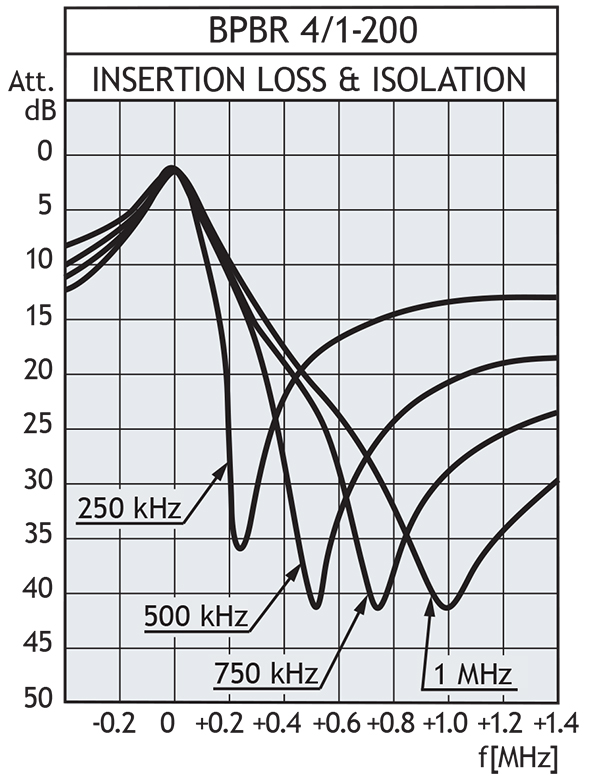

Figure 1

bpbr 4 1 200 insloss GB

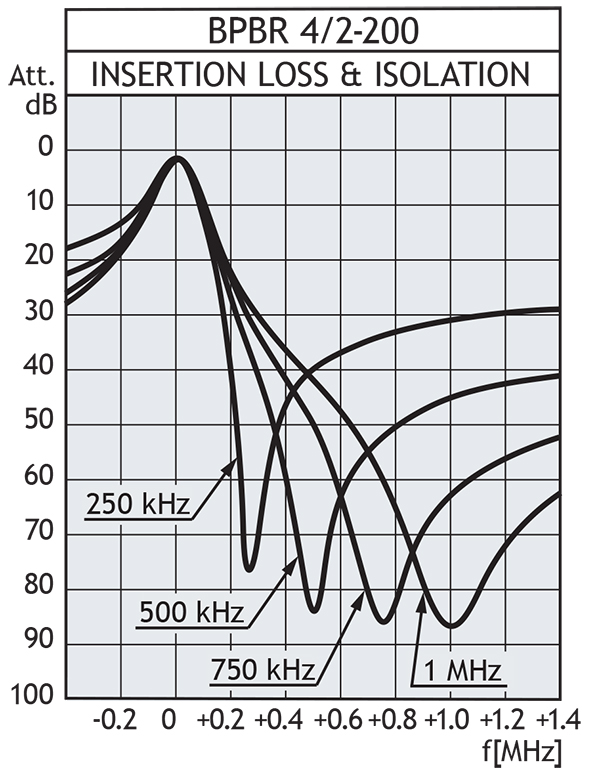

Figure 2

bpbr 4 2 200 insloss GB

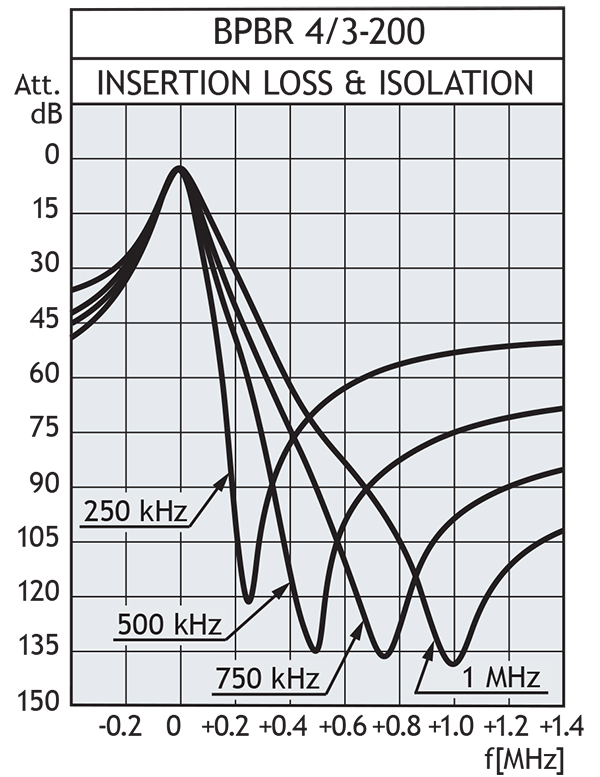

Figure 3

bpbr 4 3 200 insloss GB
