BPBR 4/4 / BRBP 4/4
Electrical
Model BPBR 4/4 / BRBP 4/4
Filter Type Band-pass / band-reject filter
Frequency 66 – 88 MHz (Option : 88 – 108 MHz)
Max. Input Power @ 3 – 16 MHz spacing : 50 W
@ ≤ 3 MHz spacing : 35 W
Special spec. info
Single-channel tuned:Multi-channel tuned
(at max 2 MHz BW):
Insertion Loss
at 2 MHz spacing : ≤ 2.0 dB
at 3 MHz spacing : ≤ 1.3 dB
at 4 MHz spacing : ≤ 1.0 dB
at 16 MHz spacing : ≤ 0.6 dBclosest spacing 2 MHz : ≤ 1.5 dB
closest spacing 3 MHz : ≤ 1.0 dB
closest spacing 4 MHz : ≤ 0.8 dB
closest spacing 16 MHz : ≤ 0.6 dB
Impedance 50 Ω
Pass-Reject Spacing 2 – 16 MHz
Reject Attenuation
≥ 90 dB≥ 60 dB
VSWR < 1.5:1
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f), (BNC(f) on request)
Historic Brand Amphenol Procom
Dimensions 152 x 104 x 33 mm / 5.98 x 4.09 x 1.29 in.
Weight Approx. 0.43 kg / 0.95 lb.
Mounting 5 mm / 0.20 in. dia. (4 pcs.)

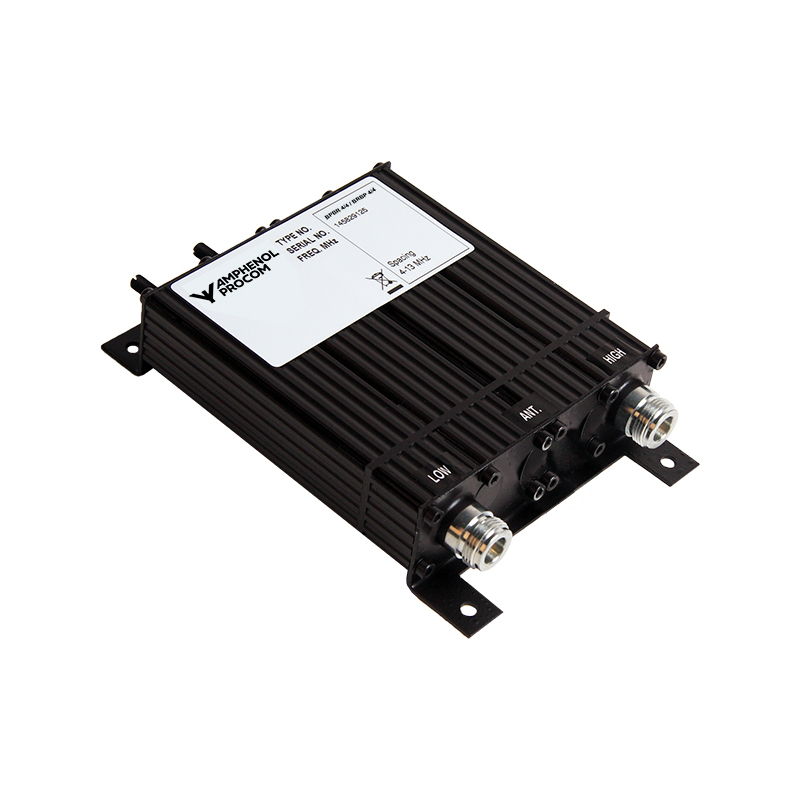

  • The BPBR 4/4 and the BRBP 4/4 are 4-cavity pass-reject filters, which pass one frequency or frequency band and reject another in immediate vicinity of the pass frequency.
  • The filters are delivered in two basic models: The BPBR-types have the reject range on the high side of the pass frequency and the BRBP-types have the reject range situated on the low side of the pass frequency.
  • These filter types can be used to protect a receiver against interference from a nearby transmitter. The filters are tuned to reject the interfering signal. Pass-reject-type filters are applied when the spacing between the utility signal and the interfering signal is so small, that the slope steepness of normal band-pass filters or notch filters are not sufficient to provide adequate rejection.
  • The filters are primarily intended to pass and reject two single frequencies, but the filters can also be tuned to pass and reject several single frequencies or to having a certain pass and reject port bandwidth. In these cases factory-tuning is recommended.
  • The standard BPBR-filters can be tuned within the complete 4 m-band with 2 to 16 MHz spacing between the operating frequencies.
  • Insertion loss is below 1.3 dB at spacings between 3 and 16 MHz. At the narrowest spacing of 2 MHz, insertion loss is kept under 2.0 dB.
  • The filters have very small dimensions ove to the use of high-Q helical resonators with discrete-component interconnections.
  • The housing is made of extruded aluminium, the chassis of passivated steel, and the connectors are provided with teflon insulation.
  • The filters are black vinyl coated to prevent corrosion.
  • Careful design and choice of materials ensure reliable operation over a wide temperature range.

No content found

This product doesn’t have any diagrams yet.

Model Product No. FrequencyAdditional Information Add To Quote

BPBR 4/4 N(f)

 200001368 Reject High Pass Low

BRBP 4/4 N(f)

 200001496 Pass High Reject Low

Login required

You need to be logged in into your account to view downloadable documents.

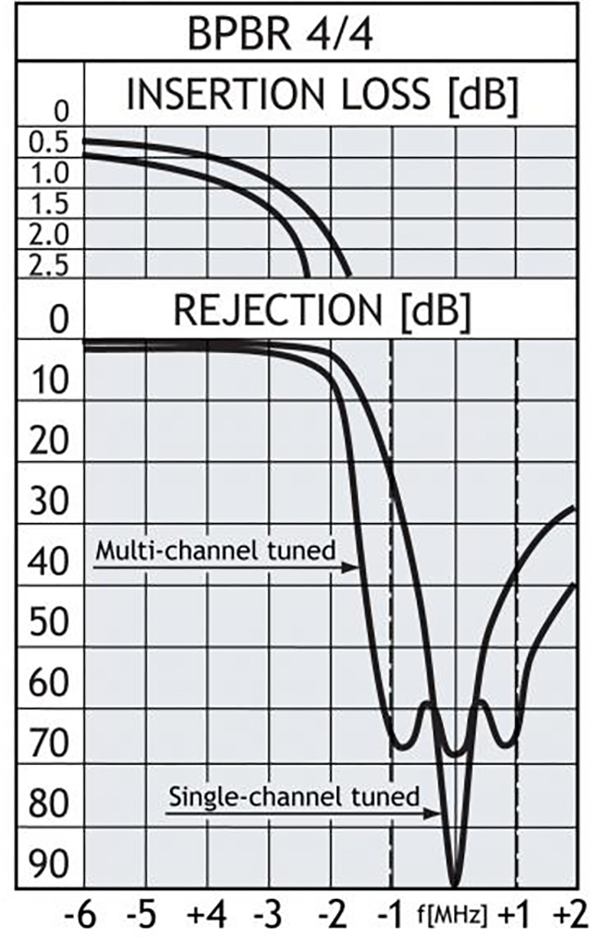

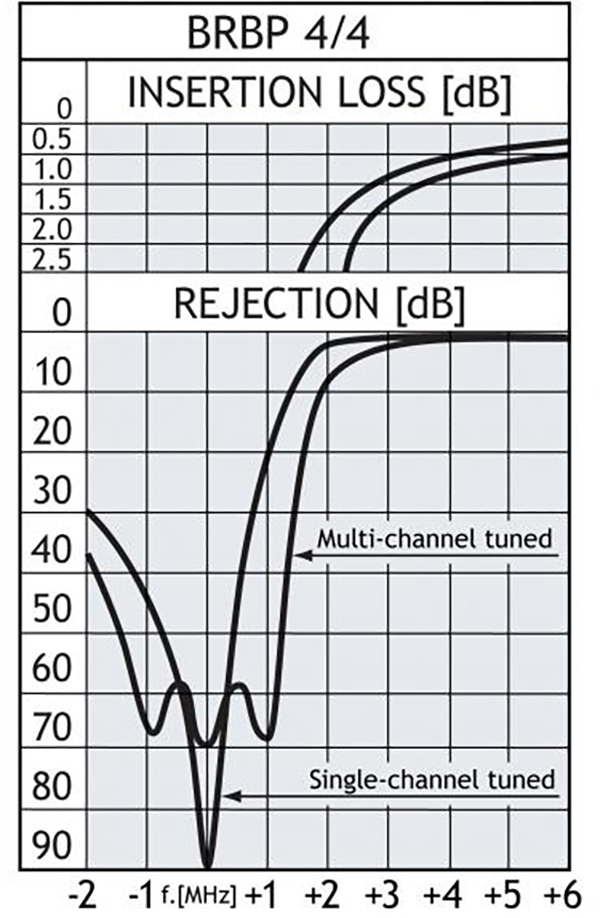

Typical Response Curves

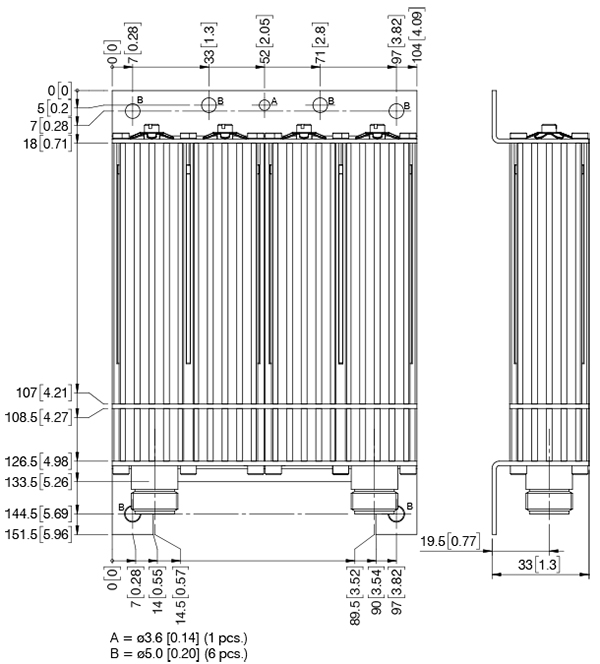

Mounting Details

BPBR 4!4 BRBP 4!4 holeplacing

All dimensions are given in mm [in.]
