BPBR 70/…-125

Band-Pass/Band-Reject Filters for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

BPBR 70/...-125

Quickly identify the correct ordering code.

BPBR 70/…-125
Electrical
Model
BPBR 70/1-125BPBR 70/2-125BPBR 70/3-125
Frequency 380 – 470 MHz
Max. Input Power
300 W @ 0.5 dB IL
125 W @ 2.0 dB IL300 W @ 1.0 dB IL
125 W @ 4.0 dB IL300 W @ 1.5 dB IL
125 W @ 6.0 dB IL
Insertion Loss
Adjustable 0.3 – 2.0 dBAdjustable 0.6 – 4.0 dBAdjustable 0.9 – 6.0 dB
Impedance 50 Ω
Attenuation
See figure 1See figure 2See figure 3
VSWR < 1.5:1
Environmental
Frequency Stability Approx. 1.5 ppm / °C
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions
ø125 x 300 mm / ø4.92 x 11.81 in.125 x 250 x 300 mm /
4.92 x 9.84 x 11.81 in.125 x 375 x 300 mm /
4.92 x 14.76 x 1.81 in.
Weight
Approx. 1.2 kg / 2.65 lb.Approx. 2.7 kg / 5.95 lb.Approx. 4.3 kg / 9.48 lb.
  • High power base station band-pass/band-reject filters for the 380 – 470 MHz range.
  • The use of large ø125 mm cavities means a high Q, resulting in a very narrow pass/reject spacing.
  • The large dimensions also mean a high power rating.
  • Unloaded Q of a single cavity is approx. 4500.
  • High frequency stability on temperature and power.
  • Mounted on 19″ brackets.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

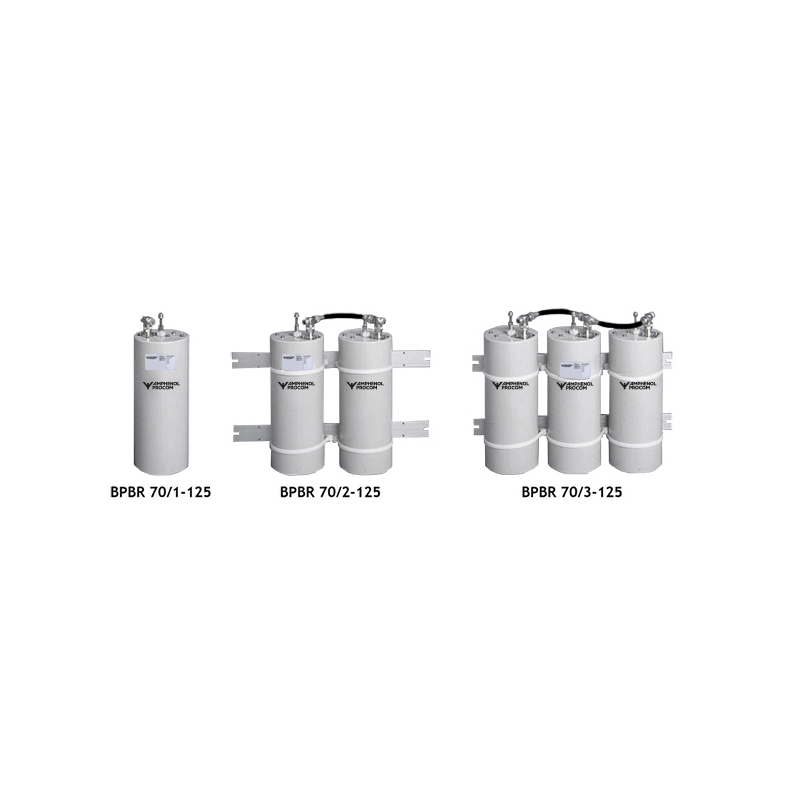

BPBR 70/1-125

 200000966 BPBR 70/1-125

BPBR 70/2-125

 200001409 BPBR 70/2-125

BPBR 70/3-125

 200001569 BPBR 70/3-125

Login required

You need to be logged in into your account to view downloadable documents.

Typical Response curves

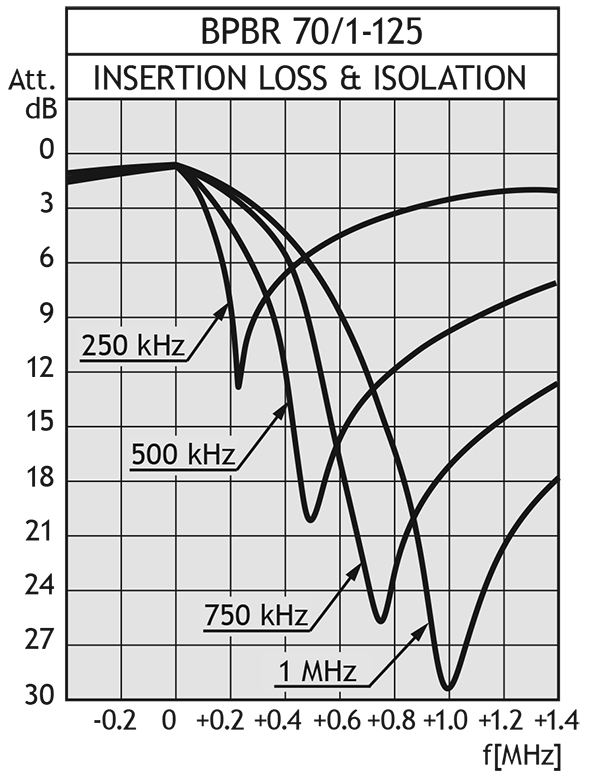

Figure 1

bpbr 70 1 125 insloss

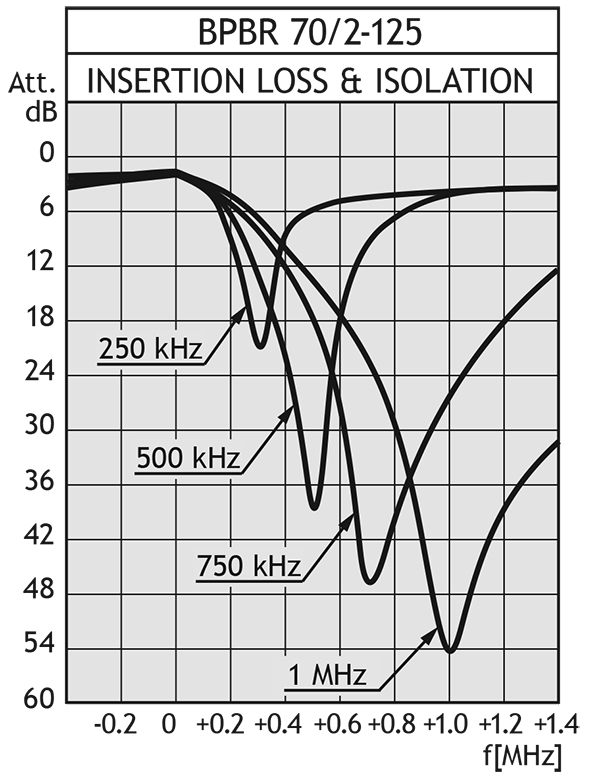

Figure 2

bpbr 70 2 125 insloss

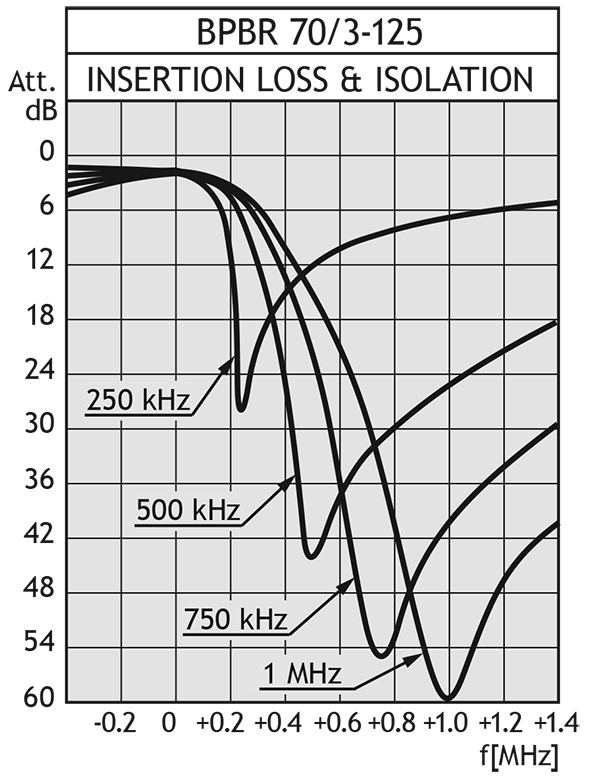

Figure 3
