BPBR 70/…-250

Band-Pass/Band-Reject Filters for the 450 MHz Band

Other Files

Electrical
Model	BPBR 70/1-250BPBR 70/2-250BPBR 70/3-250
Frequency	380 – 512 MHz
Max. Input Power	300 W @ 0.5 dB IL 125 W @ 2.0 dB IL300 W @ 1.0 dB IL 125 W @ 4.0 dB IL300 W @ 1.5 dB IL 125 W @ 6.0 dB IL
Insertion Loss	Adjustable 0.3 – 2.0 dBAdjustable 0.6 – 4.0 dBAdjustable 0.9 – 6.0 dB
Impedance	50 Ω
Attenuation	See figure 1See figure 2See figure 3
VSWR	< 1.5:1

Environmental
Frequency Stability	Approx. 1.5 ppm / °C
Operating temperature range	-30 °C to +60 °C

Mechanical
Connection(s)	N(f)
Historic Brand	Amphenol Procom
Dimensions	ø250 x 400 mm / ø9.84 x 15.75 in.250 x 500 x 400 mm / 9.84 x 19.69 x 15.75 in.250 x 750 x 400 mm / 9.84 x 29.53 x 15.75 in.
Weight	Approx. 2.8 kg / 6.17 lb.Approx. 5.2 kg / 11.46 lb.Approx. 9.6 kg / 21.16 lb.

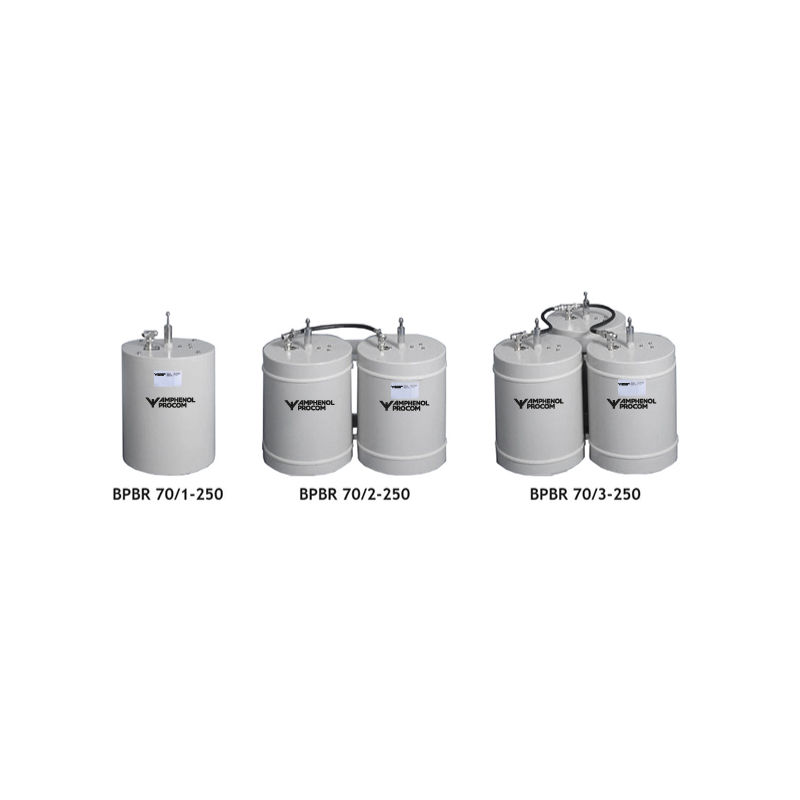

High power base station band-pass/band-reject filters for the 380 – 470 MHz range.
The use of large ø250 mm cavities means a high Q, resulting in a very narrow pass/reject spacing.
The large dimensions also mean a high power rating.
Unloaded Q of a single cavity is approx. 8000.
High frequency stability on temperature and power.
19” mounting brackets are available as an option.

This product doesn’t have any diagrams yet.

Model	Product No.	Model
BPBR 70/1-250	200001400	BPBR 70/1-250
BPBR 70/2-250	200001398	BPBR 70/2-250
BPBR 70/3-250	200001408	BPBR 70/3-250

You need to be logged in into your account to view downloadable documents.

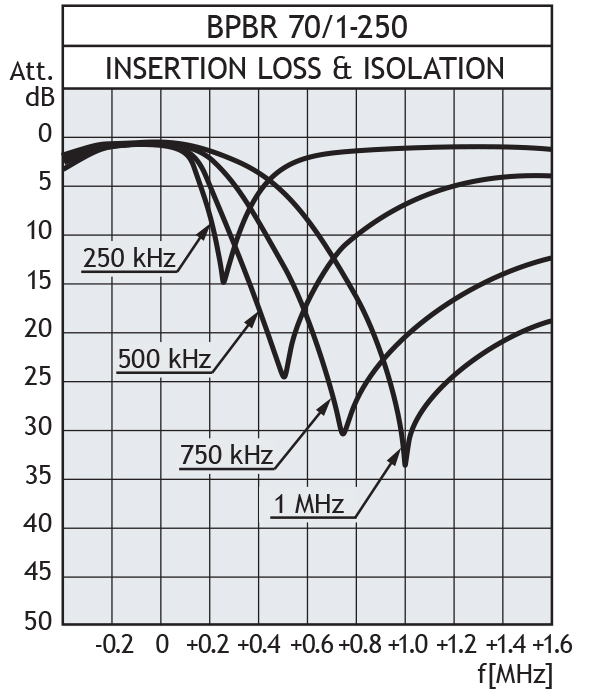

Figure 1

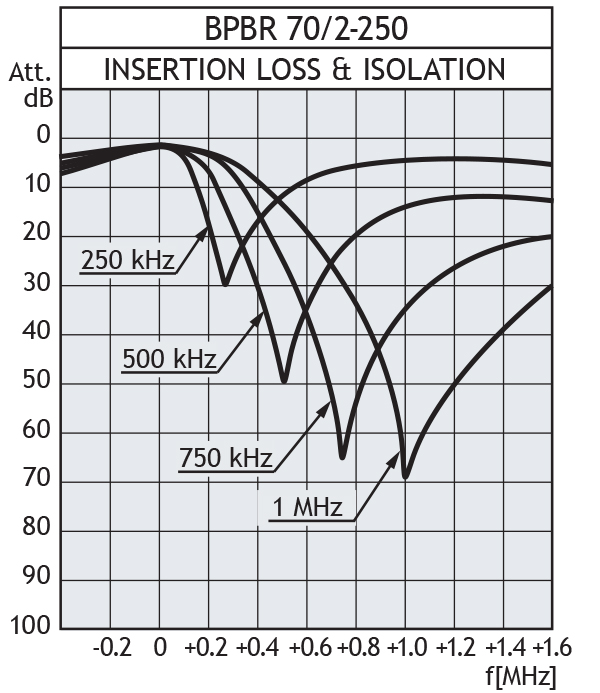

Figure 2

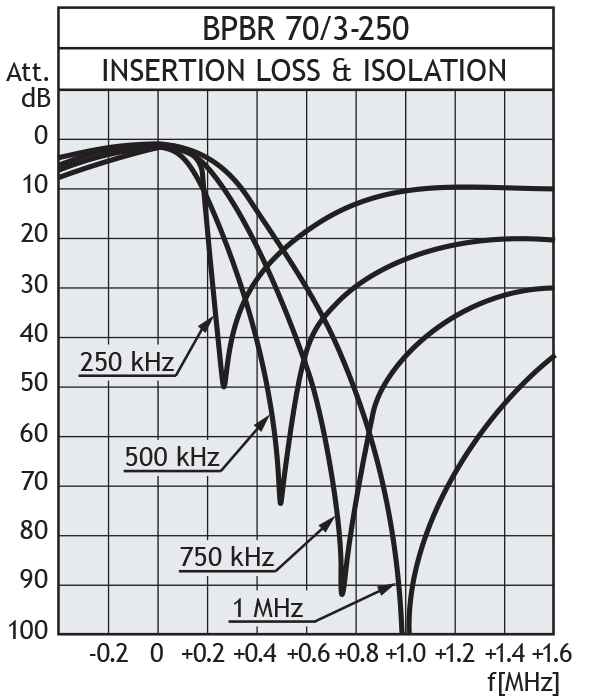

Figure 3
