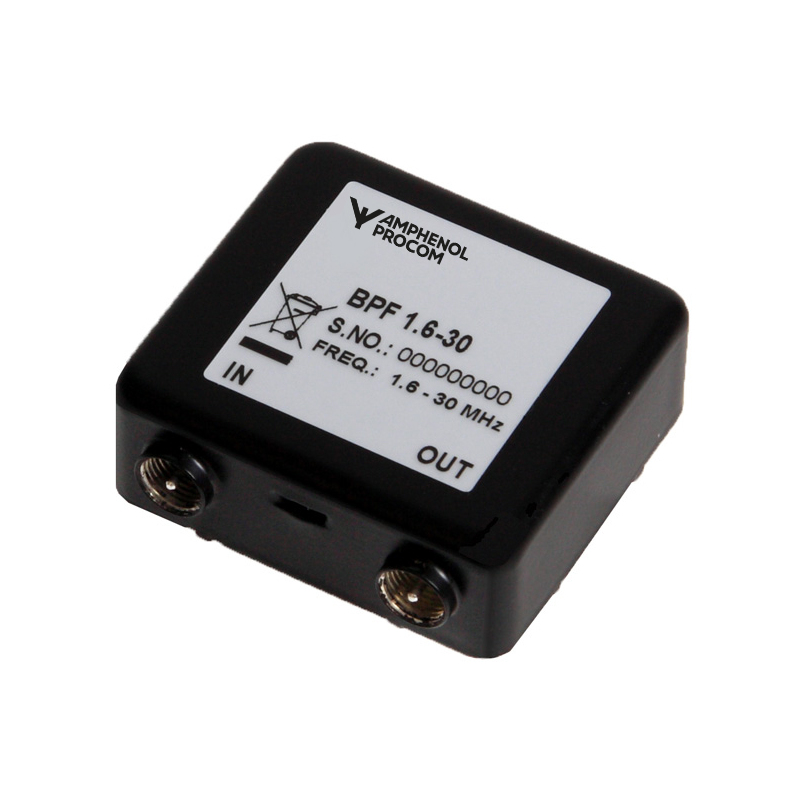

BPF 1.6-30

Band-Pass Filter for the 1.6 – 30 MHz range

Find Out More
Data Sheet
CE Certification

Other Files

BPF 1.6-30
Electrical
Model BPF 1.6-30
Frequency 1.6 – 30 MHz
Max. Input Power 15 W
Insertion Loss ≤ 2.0 dB @ 1.6 – 3 MHz
≤ 0.5 dB @ 3 – 30 MHz
Impedance 50 Ω
Reject Attenuation > 25 dB @ 0 – 1.3 MHz
> 30 dB @ 50 – 300 MHz
(see typical response curve)
VSWR < 1.5:1
Bandwidth 28.4 MHz
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP41
Mechanical
Connection(s) FME(m)
Historic Brand Amphenol Procom
Dimensions 48 x 21 x 50 mm (incl. connector) /
1.89 x 0.83 x 1.97 in. (incl. connector)
Weight Approx. 0.07 kg / 0.15 lb.
  • Miniature LC band pass filter
  • Allows the whole 1.6 – 30 MHz range to pass
  • High attenuation of the LW and MW radio bands.
  • Series coupled high/low pass filter design.
  • Chebychev characteristic ensures low insertion loss and high out-of-band rejection.
  • Can be used as transmitter filter to prevent out-of-band and harmonics radiation.
  • Can be used as a preselector filter to protect a receiver against interferences from transmitters outside the bandpass range.
  • Very small dimensions, mounted in a 48 x 50 mm box. FME-male connectors on both ports.
  • Provided with dual adhesive pad for quick installation.
  • BPF 1.6-30 is lacquered with black vinyl enamel to avoid corrosion.

TYPICAL RESPONSE CURVE

MECHANICAL OUTLINE

Model Product No. Add To Quote
Band-Pass Filter for the 1.6 – 30 MHz range 200002728

Login required

You need to be logged in into your account to view downloadable documents.

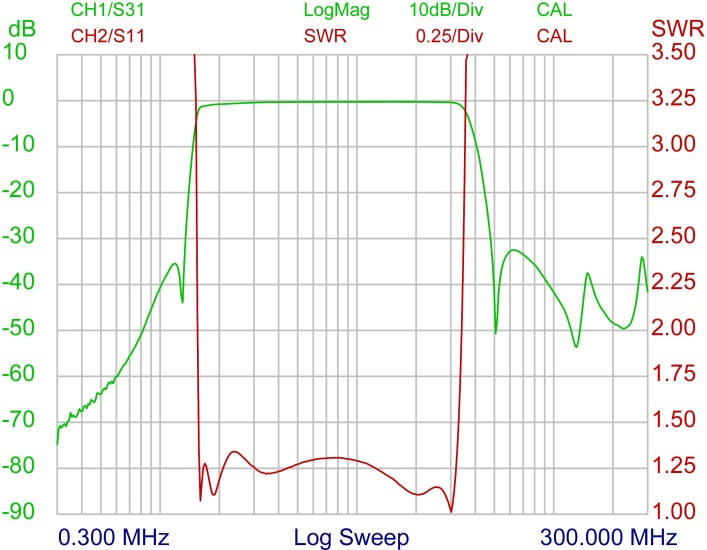

Typical response curve

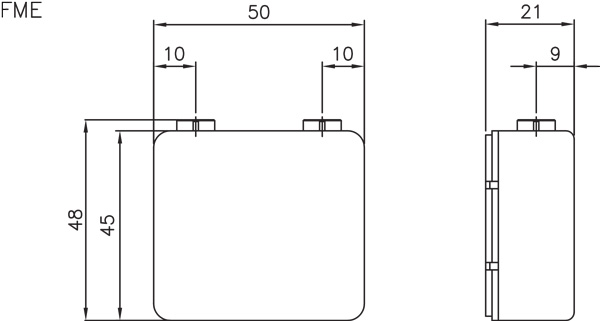

Mechanical Outline

BPF xxx xxx Dimension FME

All dimensions are given in mm [in.]
