BPF 112-136

Band-Pass Filter for 112 – 136 MHz

Find Out More
Data Sheet
CE Certification

Other Files

BPF 112-136
Electrical
Model BPF 112-136
Frequency 112 – 136 MHz
Max. Input Power 35 W
Insertion Loss ≤ 1.1 dB typ. ≤ 0.9 dB
Impedance 50 Ω
Reject Attenuation See curves
VSWR < 1.4:1
Bandwidth 24 MHz
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) FME(m) (others on request)
Historic Brand Amphenol Procom
Dimensions 48 x 21 x 50 mm (incl. connector) /
1.89 x 0.83 x 1.97 in. (incl. connector)
Weight Approx. 0.06 kg / 0.13 lb.

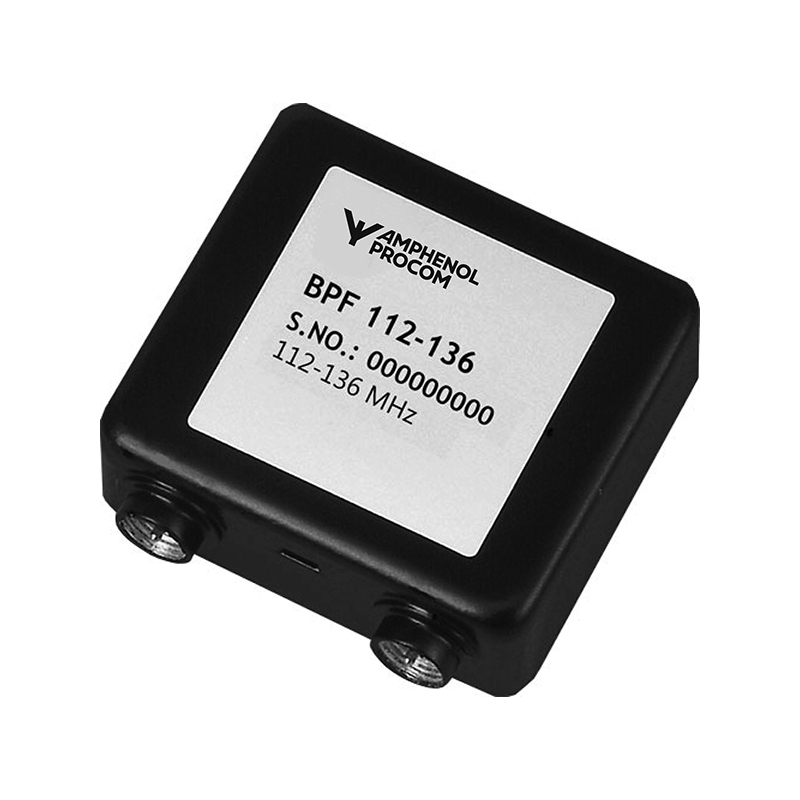

  • BPF 112-136 is an LC band-pass filter.
  • Allows the whole 112 – 136 MHz band to pass.
  • Good out of band rejection.
  • Can be used as a preselector to protect a receiver against interferences from transmitters normally being outside the band-pass range.
  • BPF 112-136 can be mounted as a preselector directly inside the PRO-AR4G-N, PRO-AR8G-N and the PRO-AR16G-N receiver multicouplers.
  • Very small dimensions, mounted in a 45 x 50 mm case.
  • FME connectors for easy and handy coupling to the surroundings.
  • BPF 112-136 is coated with black vinyl to prevent corrosion.

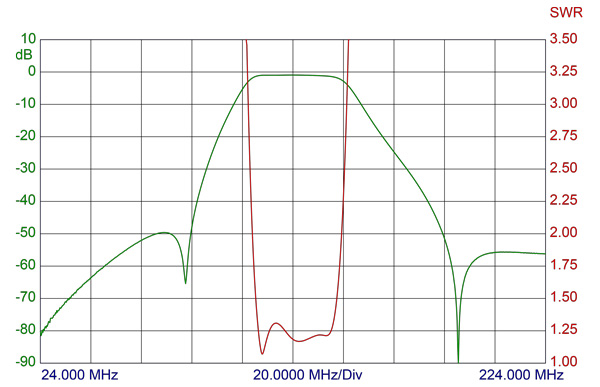

TYPICAL RESPONSE CURVES
