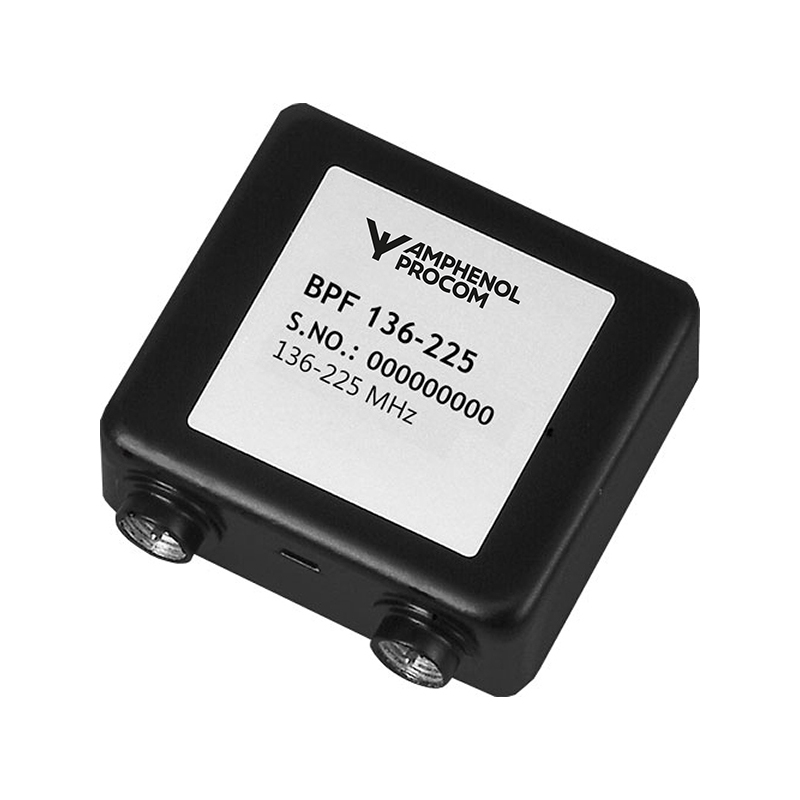

BPF 136-225

Quickly identify the correct ordering code.

BPF 136-225
Electrical
Model BPF 136-225
Frequency 136 – 225 MHz
Max. Input Power 35 W
Insertion Loss Max. 0.9 dB typ. ≤ 0.7 dB
Impedance 50 Ω
Reject Attenuation > 50 dB @ 0 – 88 MHz
and 360 – 1000 MHz
VSWR < 1.5:1
Bandwidth 89 MHz
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP41
Mechanical
Connection(s) FME(m), BNC(f) or SMA(f)
Historic Brand Amphenol Procom
Dimensions FME(m):
50 x 21 x 48 mm / 1.97 x 0.83 x 1.89 in. (incl. conn.)

BNC(f), SMA(f):
50 x 21 x 52 mm / 1.97 x 0.83 x 2.05 in. (incl. conn.)
Weight Approx. 0.06 kg / 0.13 lb.
  • BPF 136-225 is an LC band-pass filter.
  • Allows the whole 136 – 225 MHz band to pass.
  • Series coupled high/low pass filter design.
  • Chebychev characteristic ensures low insertion loss and high out-of-band rejection.
  • Can be used as transmitter filter to prevent out-of-band and harmonics radiation.
  • Can be used as a preselector filter to protect a receiver against interferences from transmitters normally being outside the band-pass range.
  • Very small dimensions, mounted in a 45 x 50 mm box.
  • FME-male connectors for easy and handy coupling to the surroundings.
  • Also available with TNC(f), BNC(f) or SMA(f) connectors types.
  • Provided with dual adhesive pad for quick installation.
  • BPF 136-225 is lacquered with black vinyl enamel to avoid corrosion.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

BPF 136-225 FME(m)

 200000895 BPF 136-225 FME(m)

BPF 136-225 BNC(f)

 200000878 BPF 136-225 BNC(f)

BPF 136-225 SMA(f)

 200002014 BPF 136-225 SMA(f)

Login required

You need to be logged in into your account to view downloadable documents.

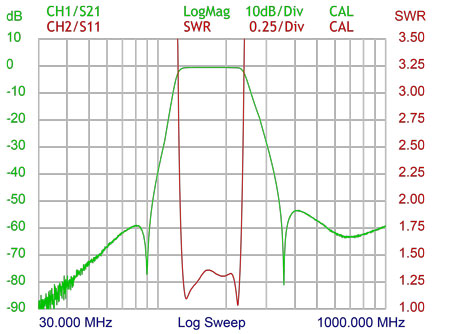

Typical Response curve

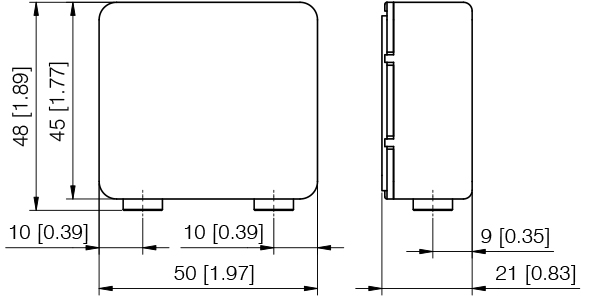

Mechanical Outline for FME(m)

BPF xxx xxx Dimension FME

All dimensions are given in mm [in.]

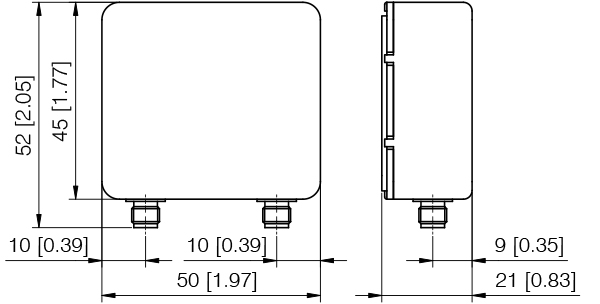

Mechanical Outline for BNC(f) or SMA(f)

BPF xxx xxx Dimension SMA

All dimensions are given in mm [in.]
