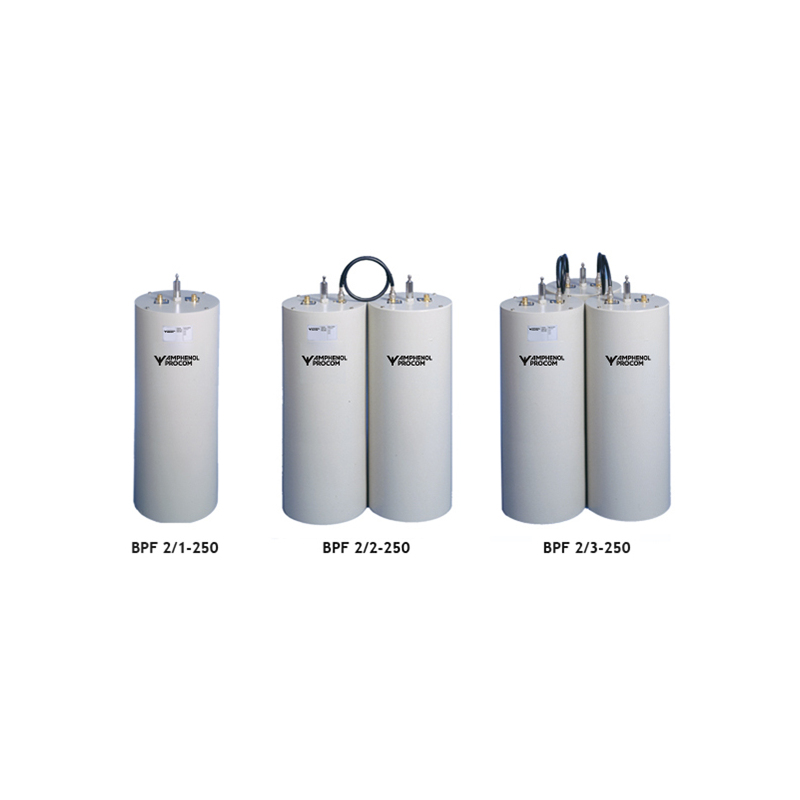

BPF 2/…-250

Band-Pass Filters for the 150 MHz Band

Other Files

Electrical
Model	BPF 2/1-250BPF 2/2-250BPF 2/3-250
Frequency	140 – 175 MHz
Max. Input Power	350 W @ 0.5 dB IL 150 W @ 2.0 dB IL350 W @ 1.0 dB IL 150 W @ 4.0 dB IL350 W @ 1.5 dB IL 150 W @ 6.0 dB IL
Insertion Loss	Adjustable 0.4 – 2.0 dBAdjustable 0.8 – 4.0 dBAdjustable 1.2 – 6.0 dB
Impedance	50 Ω
Attenuation	See figure 1See figure 2See figure 3
VSWR	< 1.5:1

Environmental
Frequency Stability	Approx. 1.5 ppm / °C
Operating temperature range	-30 °C to +60 °C

Mechanical
Connection(s)	N(f)
Historic Brand	Amphenol Procom
Dimensions	ø250 x 600 mm / ø9.84 x 23.62 in.250 x 500 x 600 mm / 9.84 x 19.69 x 23.62 in.250 x 750 x 600 mm / 9.84 x 29.53 x 23.62 in.
Weight	Approx. 4.3 kg / 9.48 lb.Approx. 8.9 kg / 19.62 lb.Approx. 14 kg / 30.86 lb.

High power base station band-pass filters for the 140 – 175 MHz range.
The use of large ø250 mm cavities means a high Q, resulting in a very narrow passband.
The large dimensions also mean a high power rating.
Unloaded Q of a single cavity is approx. 8000.
High frequency stability on temperature and power.
19” mounting brackets are available as an option.

This product doesn’t have any diagrams yet.

Model	Product No.	Model
BPF 2/1-250	200000954	BPF 2/1-250
BPF 2/2-250	200000964	BPF 2/2-250
BPF 2/3-250	200000971	BPF 2/3-250

You need to be logged in into your account to view downloadable documents.

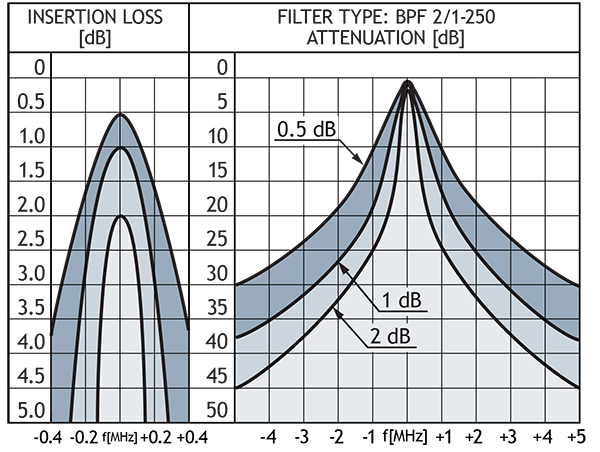

Figure 1

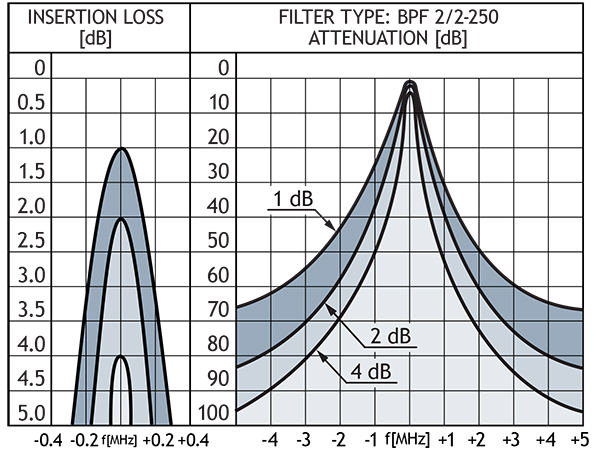

Figure 2

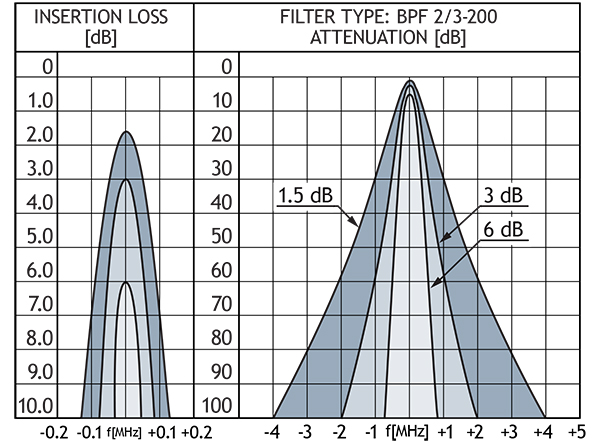

Figure 3
