BPF 2/3-150…

Highly Selective Band-Pass Filter for the 2 m Band with High Power-Handling Capability (150 W)

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

BPF 2/3-150...

Quickly identify the correct ordering code.

BPF 2/3-150…
Electrical
Model BPF 2/3-150…
Filter Type Band-pass filter
Frequency BPF 2/3-150 L : 136 – 154 MHz
BPF 2/3-150 H : 152 – 175 MHz
Max. Input Power @ max. 1 dB insertion loss : 150 W
@ max. 2 dB insertion loss : 75 W
Impedance 50 Ω
Reject Attenuation See curve
VSWR < 1.4:1
Bandwidth See curve
Environmental
Frequency Stability 18 ppm/° C (approx.)
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Length Type L : 550 mm / 21.65 in. (incl. conn.)
Type H : 535 mm / 21.06 in. (incl. conn.)
Historic Brand Procom
Height 50 mm / 1.97 in.
Width 125 mm / 4.92 in.
Weight Approx. 2.1 kg / 4.63 lb.
  • This band-pass filter is mainly applied to prevent interference between transceivers with narrow frequency spacing which are operating on antennas installed very close to each other.
  • One of the transmitters may cause intermodulation in the output amplifier of the other transmitter, or the presence of one transmitter might “block” the contrary receiver or desense it because of excess sideband noise.

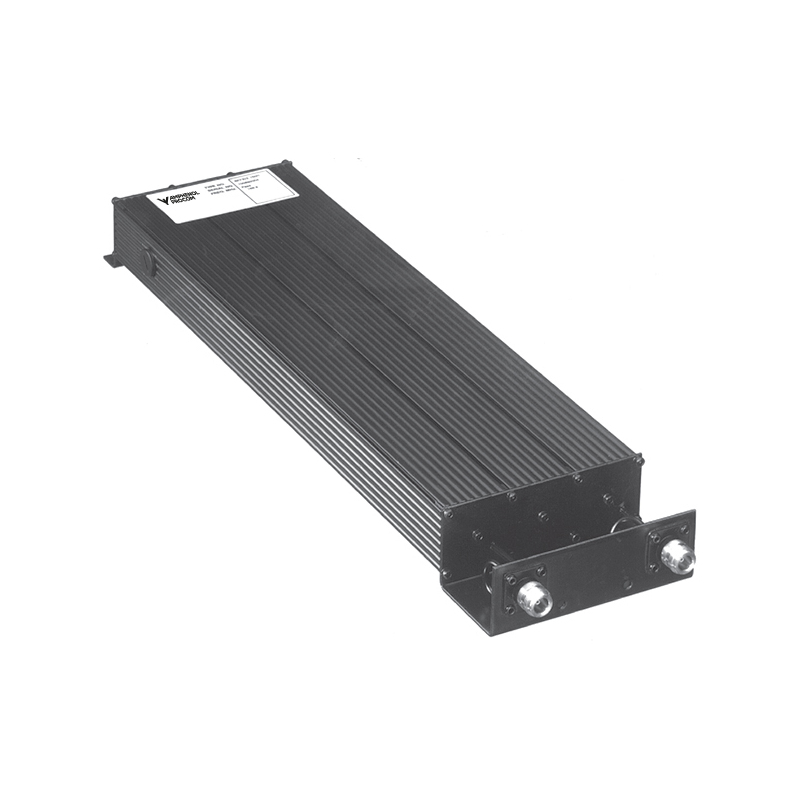

  • The BPF 2/3-150… consists of 3 full-size quarter wavelength cavities with adjustable capacitive coupling between the resonators. This filter is applied when other available band-pass filters or pass-reject filters do not provide adequate power handling capability, or lack in attenuation at narrow separations.
  • The filter has a very steep rolloff between the pass-range and the stop-band. This rolloff can be made even steeper by sacrificing on insertion loss. This “trade-off” may be necessary by very small separations or by high required stop-band attenuation. Please note that the full power rating of 150 watts can only be kept when keeping insertion loss below 1 dB. If insertion loss is raised to 2 dB, maximum allowable input power is 75 W.
  • Another feature of this filter is its ability to be tuned with a certain pass-range bandwidth.
  • The filter is delivered in two basic models: Model BPF 2/3-150 L can be applied within the band 136 – 154 MHz and model BPF 2/3-150 H within the band 152 – 175 MHz.
  • The housing is made of extruded aluminium, the chassis of passivated steel, and teflon insulation has been used in the coaxial cables and in the connectors. The filter is coated with black vinyl to prevent corrosion.

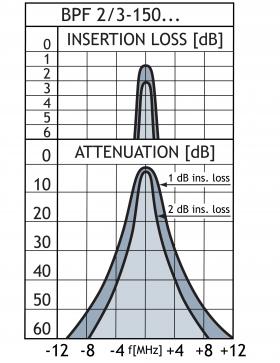

TYPICAL RESPONSE CURVES

Model Product No. Additional Information Add To Quote

BPF 2/3-150L

 200000842 136 – 154 MHz

BPF 2/3-150H

 200000843 152 – 175 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Ordering Information

The BPF 2/3-150… is delivered factory tuned. Depending on the nature of the problem the band-pass filter has to solve, please specify the relevant of the following data when ordering:
Centre frequency, operating frequency of disturbed or disturbing transmitter, required attenuation at stop-frequency, tolerable insertion loss and, optionally: pass range bandwidth.
