BPF 2/3

Band-Pass Filter for the 160 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

BPF 2/3
Electrical
Model BPF 2/3
Filter Type Band-pass filter
Frequency 144 – 175 MHz
Max. Input Power 50 W
Insertion Loss ≤ 1.5 dB (typ. 1.0 dB)
Impedance 50 Ω
Reject Attenuation See curve
VSWR < 1.5:1
Bandwidth See curve
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
(BNC(f), TNC(f), UHF(f) or SMA(f) on request)
Historic Brand Amphenol Procom
Dimensions 160 x 77 x 33 mm / 6.3 x 3.0 x 1.3 in.
Weight Approx. 0.42 kg / 0.93 lb.

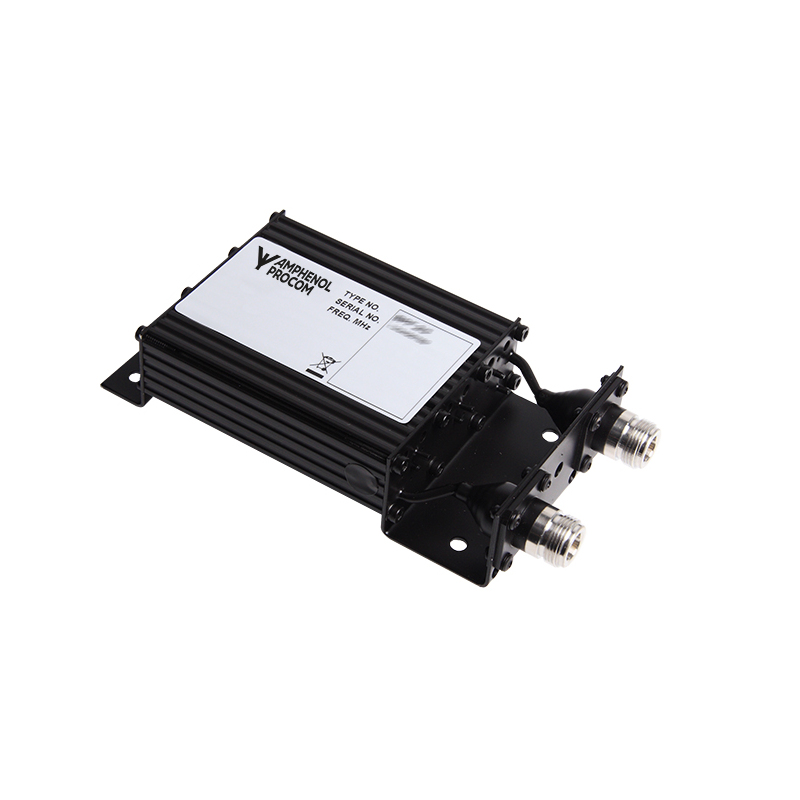

  • The BPF 2/3 is a 3-helical resonator band-pass filter with aperture-coupling between the resonators.
  • This filter can be used as a preselector to protect a receiver against interference from transmissions out of the passband, or it can be used to reduce spurious output from a transmitter with up to 50 W output power.
  • The filter can be tuned within the entire 144 – 175 MHz band. It has very small dimensions owing to the use of helical resonators. Careful design and choice of materials ensure reliable operation over a wide temperature range.
  • The housing is made of extruded aluminium, the chassis of steel, and teflon insulation has been used in the coaxial cables and in the connectors.
  • The filter is black vinyl coated to prevent corrosion.
  • Please specify frequency when ordering

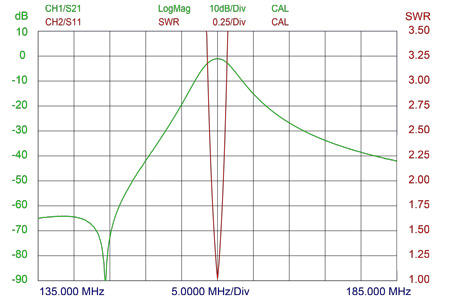

TYPICAL RESPONSE CURVES

MOUNTING DETAILS
