Band-Pass Filter for the 160 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

BPF 2/6-...

Quickly identify the correct ordering code.

BPF 2/6-…
Electrical
Model BPF 2/6-…
Filter Type Band-pass filter
Frequency 144 – 175 MHz
Max. Input Power 35 W
Insertion Loss ≤ 2.5 dB Typ. 1.6 dB
Impedance 50 Ω
Attenuation See curves
VSWR < 1.5:1
Bandwidth Can be ordered from
1.5 MHz to 7.5 MHz
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f) (other on request)
Historic Brand Amphenol Procom
Dimensions 165 x 154 x 33 mm /
6.5 x 6.06 x 1.3 in.
Weight Approx. 0.5 kg / 1.10 lb.

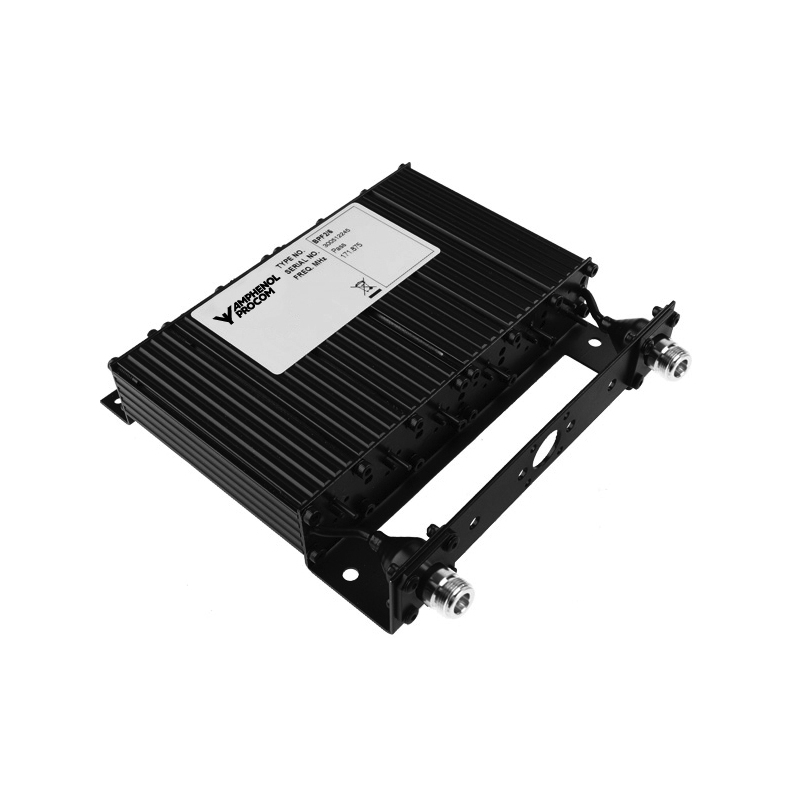

  • The BPF 2/6-… is a 6-helical resonator band-pass filter with aperture coupling between the resonators.
  • This filter can be used as a preselector to protect a receiver from interference from transmitters outside the band-pass limits.
  • When installed in the output of a transmitter, the BPF 2/6 reduces spurious signals.
  • The BPF 2/6-… is adjustable over the range 144 – 175 MHz.
  • Very compact due to use of helical resonators.
  • Careful choice of materials ensures reliable performance over a wide temperature range.
  • Extruded aluminium sections, steel racks and coaxial cables and connectors with teflon insulation ensure good mechanical strength.
  • The filter is black vinyl coated to prevent corrosion.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

BPF 2/6-1.5 N(f)

 200000841 Bandwidth: 1.5 MHz

BPF 2/6-4 N(f)

 200000840 Bandwidth: 4.0 MHz

BPF 2/6-5 N(f)

 200000824 Bandwidth: 5.0 MHz

BPF 2/6-6 N(f)

 200002653 Bandwidth: 6.0 MHz

BPF 2/6-7.5 N(f)

 200000834 Bandwidth: 7.5 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Typical response curves

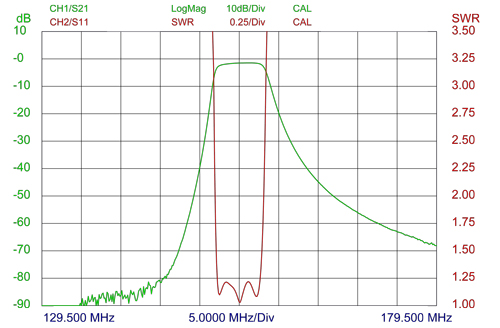

4 MHz Bandwidth

BPF-2-6-swr-kurve2

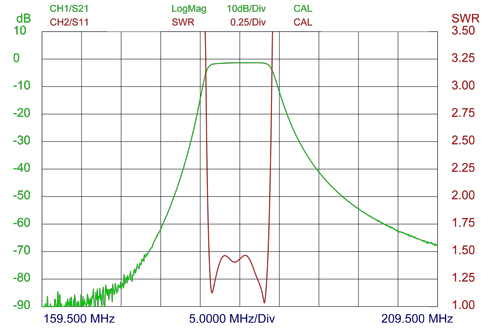

6 MHz Bandwidth

BPF-2-6-swr-kurve1

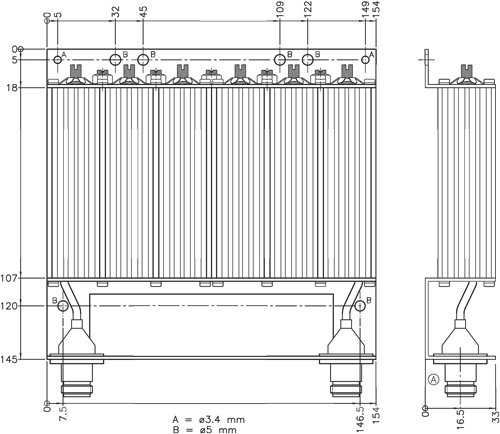

Mounting Details

BPF-2-6-hole-placing

                            All dimensions are given in mm.
