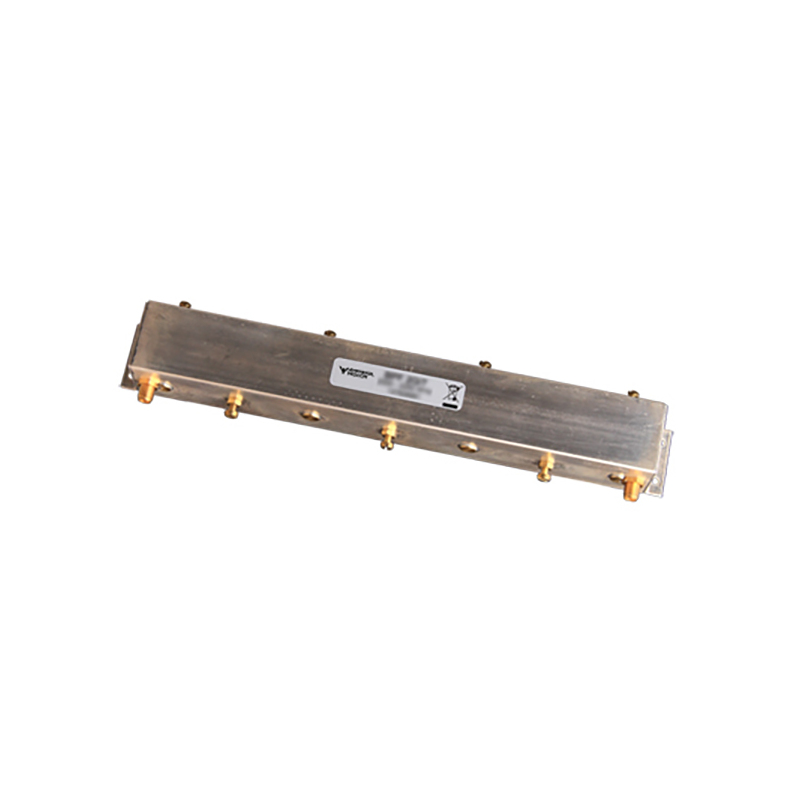

BPF 2G/7
Electrical
Model BPF 2G/7
Filter Type Interdigital band-pass filter
Frequency To be stated within 2000 and 2250 MHz
Max. Input Power 10 W
Insertion Loss < 1.5 dB, typ. 0.8 dB
Impedance 50 Ω
Reject Attenuation ± 86 MHz rel. fc: > 60 dB
VSWR < 2.0:1
Bandwidth Approx. 80 MHz
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) SMA(f)
Materials Housing: Silvered brass
Connectors: Goldplated CuBe
Historic Brand Amphenol Procom
Dimensions 215 x 30 x 30 mm / 8.5 x 1.1 x 1.1 in. (230 x 55 x 30 mm incl. connectors, adjustment screws and mounting brackets)
Weight Approx. 0.45 kg / 0.99 lb.
  • 7-resonator, interdigital band-pass filter.
  • Especially suitable for multichannel systems in the 2 GHz band.
  • Wide pass range of approx. 80 MHz.
  • Low insertion loss and low ripple inside pass range.
  • Steep slopes immediately outside the pass range.
  • Heavy attenuation outside the pass range.
  • Housing made of silvered brass.
  • Terminated with SMA-female connectors.

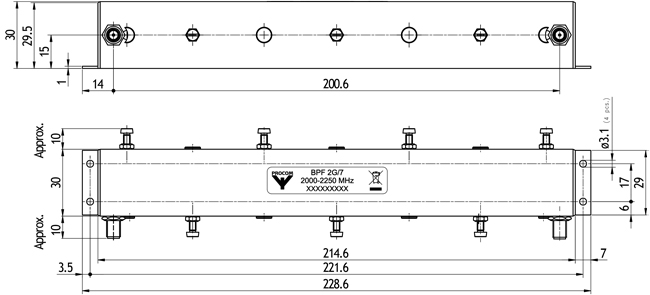

MOUNTING DETAILS

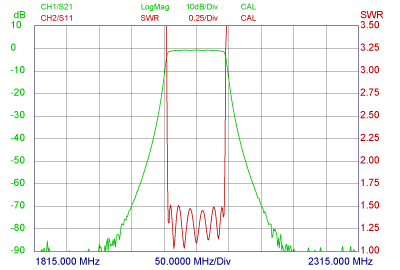

TYPICAL RESPONSE CURVES
