BPF 3/...-200

Quickly identify the correct ordering code.

BPF 3/…-200
Electrical
Model

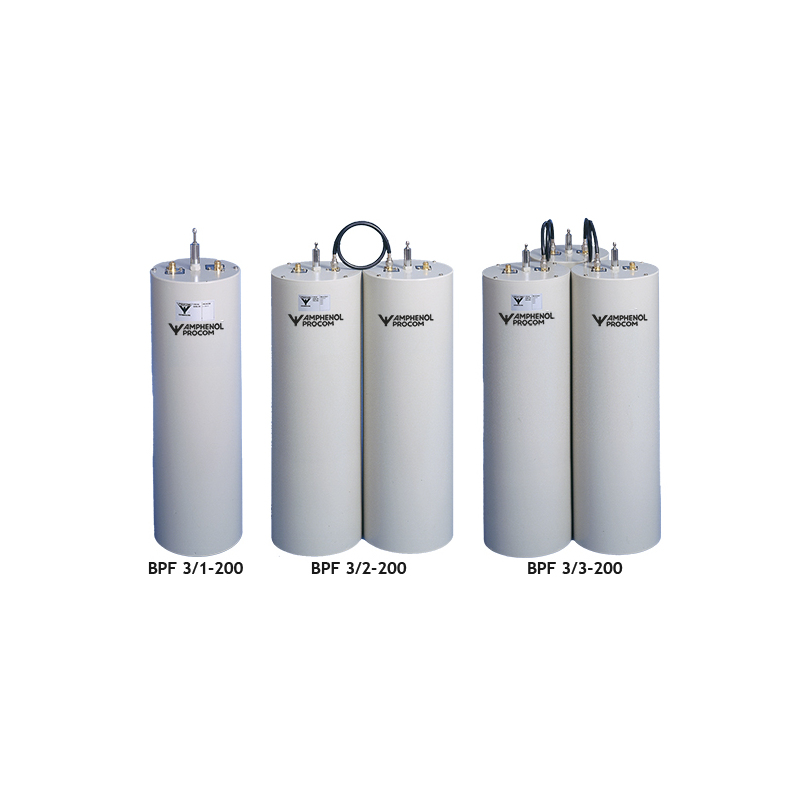

BPF 3/1-200BPF 3/2-200BPF 3/3-200
Frequency 116 – 146 MHz
Max. Input Power
350 W @ 0.5 dB IL
150 W @ 2.0 dB IL350 W @ 1.0 dB IL
150 W @ 4.0 dB IL350 W @ 1.5 dB IL
150 W @ 6.0 dB IL
Insertion Loss
Adjustable 0.4 – 2.0 dBAdjustable 1.0 – 4.0 dBAdjustable 1.5 – 6.0 dB
Impedance 50 Ω
VSWR < 1.5:1
Environmental
Frequency Stability Approx. 1.5 ppm / °C
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Max. RPM 200 (On tuning rod)
Historic Brand Amphenol Procom
Dimensions
ø200 x 765 mm /
ø7.87 x 30.12 in.200 x 400 x 765 mm /
7.87 x 15.75 x 30.12 in.200 x 600 x 765 mm /
7.87 x 23.62 x 30.12 in.
Weight
Approx. 4.7 kg / 10.36 lb.Approx. 9.6 kg / 21.16 lb.Approx. 14.5 kg / 31.97 lb.
  • High power base station band-pass filters for the 116 – 146 MHz range.
  • The use of large ø200 mm cavities means a high Q,
  • resulting in a very narrow passband.
  • The large dimensions also mean a high power rating.
  • Unloaded Q of a single cavity is better than 6000.
  • High frequency stability on temperature and power.
  • 19” mounting brackets are available as an option.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Max. Input PowerInsertion Loss Add To Quote

BPF 3/1-200

 200001567 350 W @ 0.5 dB IL 150 W @ 2.0 dB IL Adjustable 0.4 – 2.0 dB

BPF 3/2-200

 200001164 350 W @ 1.0 dB IL 150 W @ 4.0 dB IL Adjustable 1.0 – 4.0 dB

BPF 3/3-200

 200001889 350 W @ 1.5 dB IL 150 W @ 6.0 dB IL Adjustable 1.5 – 6.0 dB
