BPF 4/…-250

Band-Pass Filters for the 80 MHz Band

Other Files

Electrical
Model	BPF 4/1-250BPF 4/2-250BPF 4/3-250
Frequency	66 – 88 MHz
Max. Input Power	350 W @ 0.5 dB IL 150 W @ 2.0 dB IL350 W @ 1.0 dB IL 150 W @ 4.0 dB IL350 W @ 1.5 dB IL 150 W @ 6.0 dB IL
Insertion Loss	Adjustable 0.4 – 2.0 dBAdjustable 0.8 – 4.0 dBAdjustable 1.2 – 6.0 dB
Impedance	50 Ω

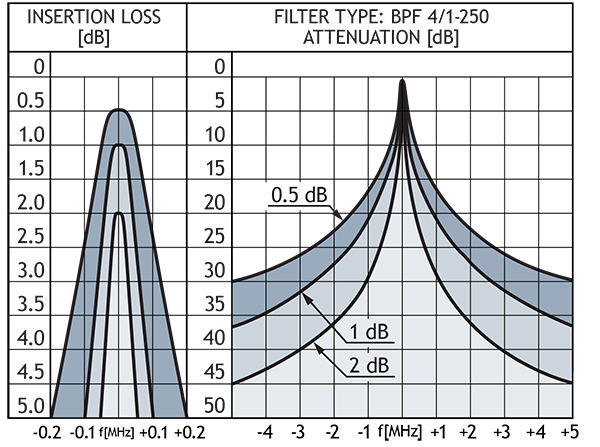

Attenuation	See figure 1See figure 2See figure 3
VSWR	< 1.5:1

Environmental
Frequency Stability	Approx. 1.5 ppm / °C
Operating temperature range	-30 °C to +60 °C

Mechanical
Connection(s)	N(f)
Max. RPM	200 (On tuning rod)
Historic Brand	Amphenol Procom
Dimensions	ø250 x 1200 mm / ø9.84 x 47.24 in.250 x 500 x 1200 mm / 9.84 x 19.69 x 47.24 in.250 x 750 x 1200 mm / 9.84 x 29.53 x 47.24 in.
Weight	Approx. 8.6 kg / 18.96 lb.Approx. 17.5 kg / 38.58 lb.Approx. 26.6 kg / 58.64 lb.

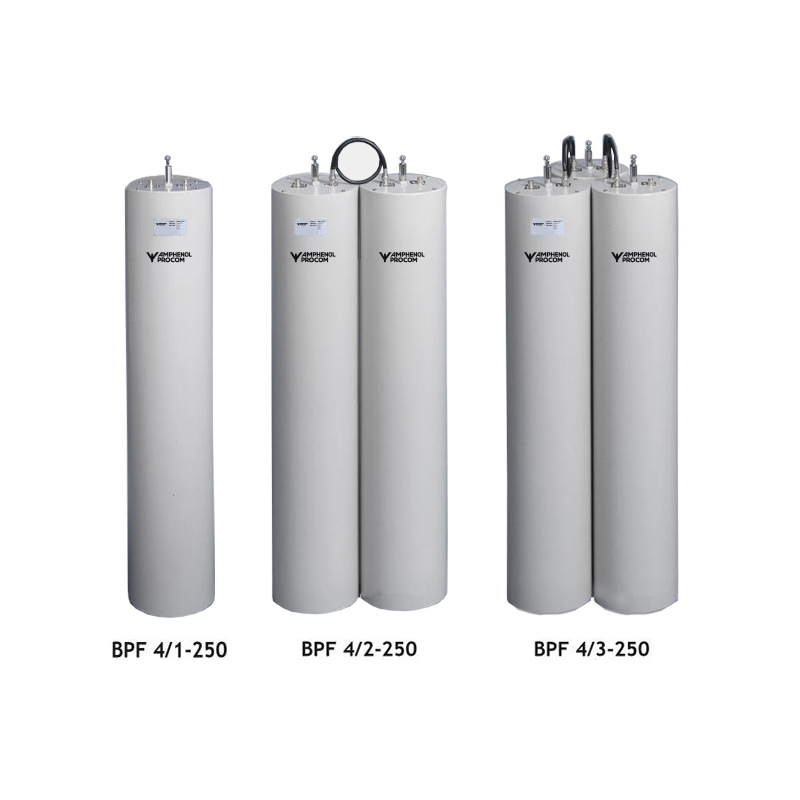

High power base station band-pass filters for the 66 – 88 MHz range.
The use of large ø250 mm cavities means a high Q, resulting in a very narrow passband.
The large dimensions also mean a high power rating.
Unloaded Q of a single cavity is approx. 8000.
High frequency stability on temperature and power.
19” mounting brackets are available as an option.
