BPF 66-88

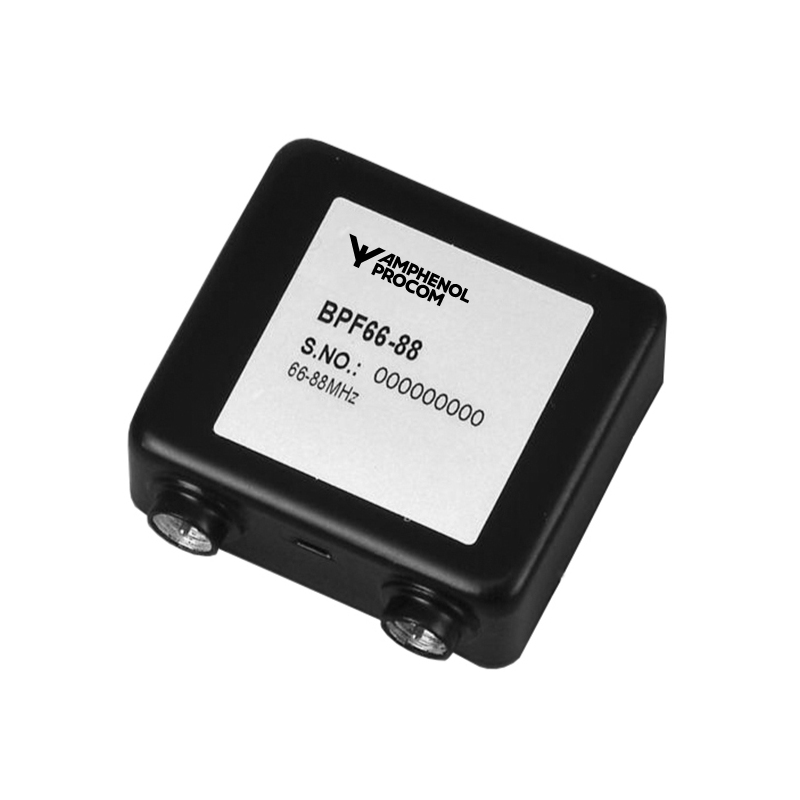

Band-Pass Filter for 66 – 88 MHz

Find Out More
Data Sheet
CE Certification

Other Files

BPF 66-88
Electrical
Model BPF 66-88
Frequency 66 – 88 MHz
Max. Input Power 35 W
Insertion Loss ≤ 0.9 dB typ. ≤ 0.8 dB
Impedance 50 Ω
Reject Attenuation See curve
VSWR < 1.4:1
Bandwidth 22 MHz
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) FME(m) (others on request)
Historic Brand Amphenol Procom
Dimensions 50 x 21 x 48 mm (incl. conn.) /
1.97 x 0.83 x 1.89 in.
Weight Approx. 0.06 kg / 0.13 lb.
  • BPF 66-88 is an LC band-pass filter.
  • Allows the whole 66 – 88 MHz band to pass.
  • Can be used as a preselector to protect a receiver against interferences from transmitters normally being outside the band-pass range.
  • BPF 66-88 can be mounted as a preselector directly inside the PRO-AR4G-N, PRO-AR8G-N and the PRO-AR16G-N receiver multicouplers.
  • Very small dimensions, mounted in a 45 x 50 mm case.
  • FME-connectors for easy and handy interconnections.
  • Also available with TNC(f), BNC(f) or SMA(f) connectors types.
  • BPF 66-88 is coated with black vinyl to prevent corrosion.

TYPICAL RESPONSE CURVES

Model Product No. Add To Quote
Band-Pass Filter for 66 – 88 MHz 200000972

Login required

You need to be logged in into your account to view downloadable documents.

Typical Response curve

BPF 66 88 curve

Mechanical Outline

BPF xxx xxx Dimension FME

All dimensions are given in mm [in.]
