BPF 70/…-200

Band-Pass Filter for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

BPF 70/...-200

Quickly identify the correct ordering code.

BPF 70/…-200
Electrical
Model

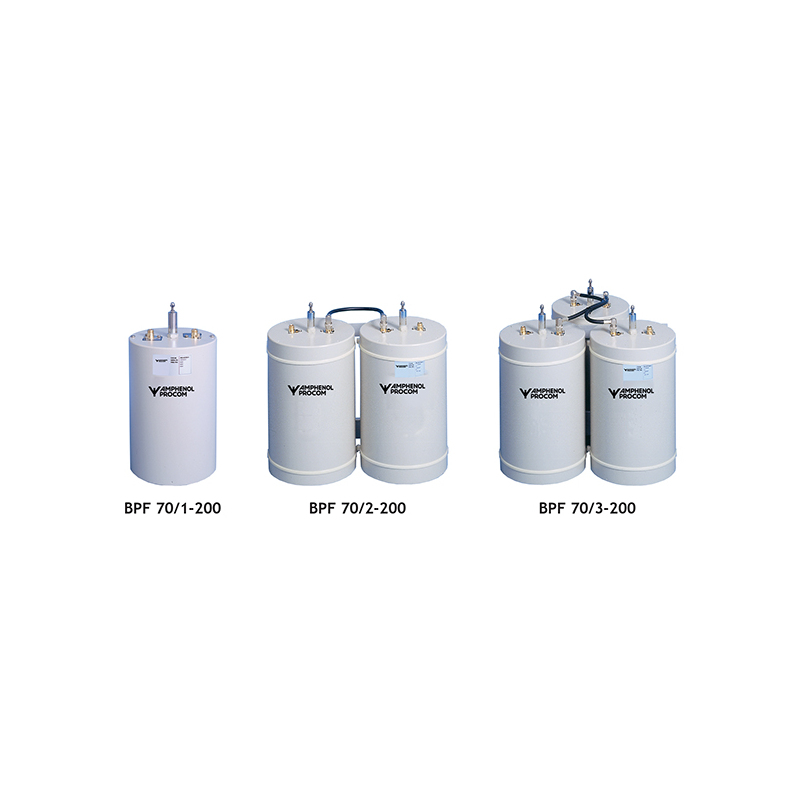

BPF 70/1-200BPF 70/2-200BPF 70/3-200
Frequency 380 – 470 MHz
Max. Input Power
350 W @ 0.5 dB IL
150 W @ 2.0 dB IL350 W @ 1.0 dB IL
150 W @ 4.0 dB IL350 W @ 1.5 dB IL
150 W @ 6.0 dB IL
Insertion Loss
Adjustable 0.4 – 2.0 dBAdjustable 0.8 – 4.0 dBAdjustable 1.2 – 6.0 dB
Impedance 50 Ω
VSWR < 1.5:1
Environmental
Frequency Stability Approx. 1.5 ppm / °C
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions
ø200 x 303 mm /
ø7.87 x 11.93 in.200 x 400 x 303 mm /
7.87 x 15.75 x 11.93 in.200 x 600 x 303 mm /
7.87 x 23.62 x 11.93 in.
Weight
Approx. 2.3 kg / 5.07 lb.Approx. 4.9 kg / 10.80 lb.Approx. 7.5 kg / 16.53 lb.
  • High power base station band-pass filters for the 380 – 470 MHz range.
  • The use of large ø200 mm cavities means a high Q, resulting in a very narrow passband.
  • The large dimensions also mean a high power rating.
  • Unloaded Q of a single cavity is approx. 7000.
  • High frequency stability on temperature and power.
  • 19” mounting brackets are available as an option.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

BPF 70/1-200

 200000960 BPF 70/1-200

BPF 70/2-200

 200000958 BPF 70/2-200

BPF 70/3-200

 200001071 BPF 70/3-200
