BPF 70/3-150

Highly Selective Band-Pass Filter for the 450 MHz Band with High Power-Handling Capability (150 W)

Find Out More
Data Sheet
CE Certification

Other Files

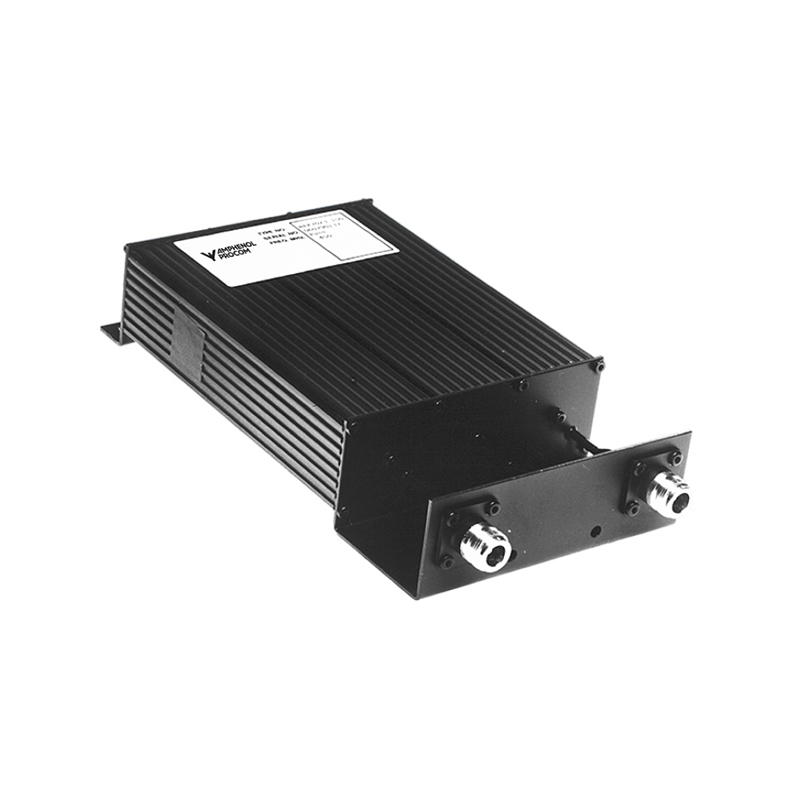

BPF 70/3-150
Electrical
Model BPF 70/3-150
Filter Type Band-pass filter
Frequency 380 – 470 MHz
Max. Input Power @ max. 1 dB insertion loss: 150 W
@ max. 2 dB insertion loss: 75 W
Impedance 50 Ω
Reject Attenuation See curves
VSWR ≤ 1.4:1
Bandwidth See curves
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
(BNC(f), TNC(f), UHF(f) or SMA(f)
on request)
Historic Brand Amphenol Procom
Dimensions 257 (incl. conn.) x 125 x 50 mm /
1 0.11 (incl. conn.) x 4.92 x 1.96 in.
Weight Approx. 1.17 kg / 2.58 lb.
  • This band-pass filter is mainly applied to prevent interference between transceivers with narrow frequency spacing which are operating on antennas installed very close to each other.
  • One of the transmitters may cause intermodulation in the output amplifier of the other transmitter, or the presence of one transmitter might “block” the contrary receiver or desense it because of excess sideband noise.
  • The BPF 70/3-150 consists of 3 full-size quarter wavelength cavities with adjustable capacitive coupling between the resonators. This filter is applied when other available band-pass filters or pass-reject filters do not provide adequate power handling capability, or lack in attenuation at narrow separations.
  • The filter has a very steep rolloff between the pass-range and the stop-band. This rolloff can be made even steeper by sacrificing on insertion loss. This “trade-off” may be necessary by very small separations or by highly required stop-band attenuation. Please note that the full power rating of 150 W can only be kept when keeping insertion loss below 1 dB. If insertion loss is raised to 2 dB, maximum allowable input power is 75 W.
  • Another feature of this filter is its ability to be tuned with a certain pass-range bandwidth.
  • The housing is made of extruded aluminium, the chassis of passivated steel, and teflon insulation has been used in the coaxial cables and in the connectors.
  • The filter is coated with black vinyl to prevent corrosion.

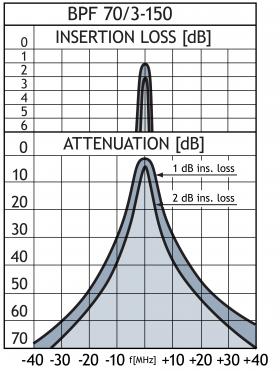

Typical Response Curves

Model Product No. Add To Quote
Highly Selective Band-Pass Filter for the 450 MHz Band with High Power-Handling Capability (150 W) 200000926

Login required

You need to be logged in into your account to view downloadable documents.

Ordering Information

The BPF 70/3-150 is delivered factory tuned. Depending on the nature of the problem the band-pass filter has to solve, please specify the relevant of the following data when ordering: Centre frequency, operating frequency of disturbed or disturbing transmitter, required attenuation at stop-frequency, tolerable insertion loss and, optionally: pass range bandwidth.

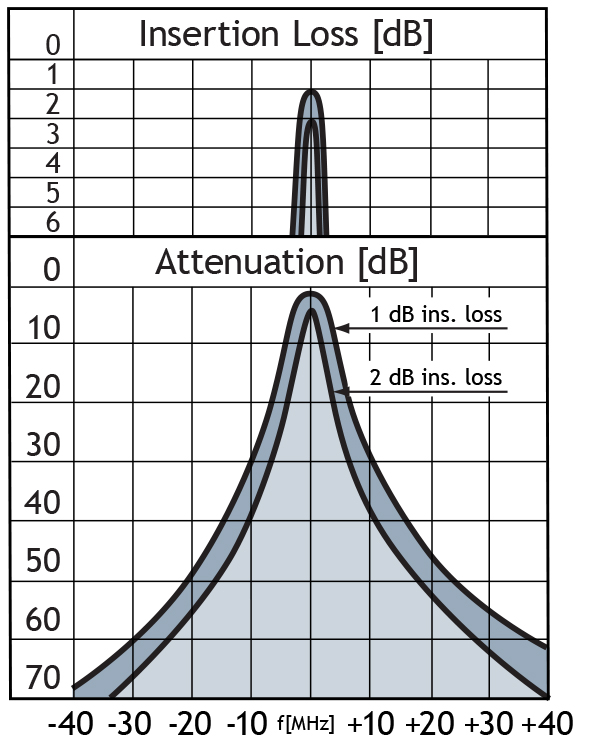

Typical Response Curve

BPF 70!3 150 Curve GB
