BPF 70/3-XL

Band-Pass Filter for the 70 cm Band

Find Out More
Data Sheet
CE Certification

Other Files

BPF 70/3-XL
Electrical
Model BPF 70/3-XL
Filter Type Band-pass filter
Frequency 325 – 355 MHz
Max. Input Power 50 W
Insertion Loss ≤ 1.4 dB
Impedance 50 Ω
Reject Attenuation See curve
VSWR < 1.5:1
Bandwidth 4 MHz
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
(BNC(f), TNC(f), UHF(f) or SMA(f) on request)
Historic Brand Amphenol Procom
Dimensions 260 x 77 x 33 mm /
10.24 x 3.03 x 1.30 in. (incl. connectors)
Weight Approx. 0.55 kg / 1.21 lb.
  • The BPF 70/3-XL is a 3 x ¼ λ resonator band-pass filter with internal coupling between the resonators.
  • This filter can be used as a preselector to protect a receiver against interference from transmissions out of the passband, or it can be used to reduce spurious output from a transmitter with up to 50 W output power.
  • The filter can be tuned within the entire 325 – 355 MHz band. Careful design and choice of materials ensure reliable operation over a wide temperature range.
  • The housing is made of extruded aluminium, the chassis of brass, and teflon insulation has been used in the coaxial cables and in the connectors.
  • The filter is black vinyl coated to prevent corrosion.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Band-Pass Filter for the 70 cm Band 200000911

Login required

You need to be logged in into your account to view downloadable documents.

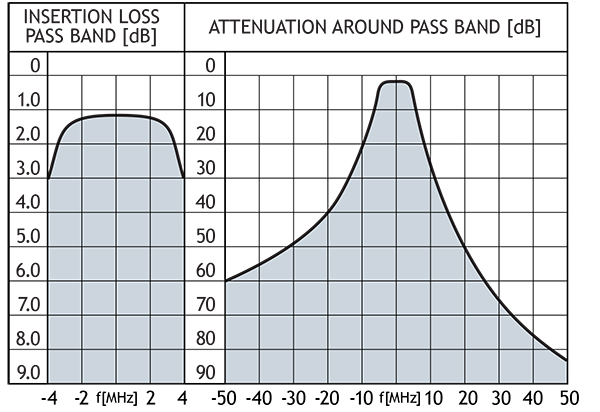

Typical Response curve

BPF 70 3 XL resp art

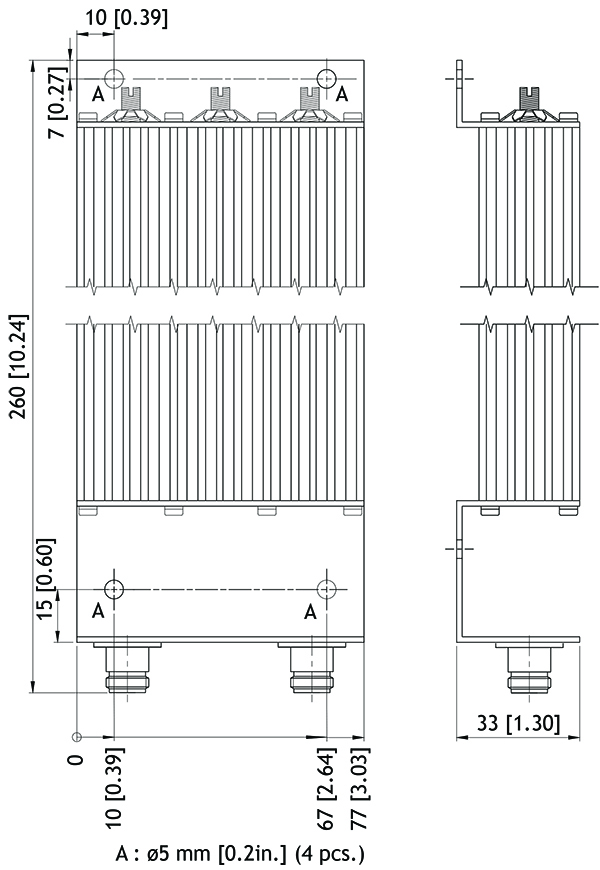

Mounting details

BPF 70 3 XL holeplacering

All dimensions are given in mm [in.]
