BPF 70/4-HX-C

Band-Pass Filter for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

BPF 70/4-HX-C

Quickly identify the correct ordering code.

BPF 70/4-HX-C
Electrical
Model BPF 70/4-HX-C
Filter Type Band-pass filter
Frequency L: 380 – 440 MHz
H: 430 – 470 MHz
Max. Input Power 35 W
Insertion Loss ≤ 1.5 typ. 1.2 dB
Impedance 50 Ω
Reject Attenuation See curves
VSWR < 1.5:1
Bandwidth Min. 3 MHz
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) Cable for PCB mount
Historic Brand Amphenol Procom
Dimensions 71.5 x 104 x 33 mm /
2.82 x 4.10 x 1.30 in.
Weight Approx. 0.43 kg / 0.95 lb.

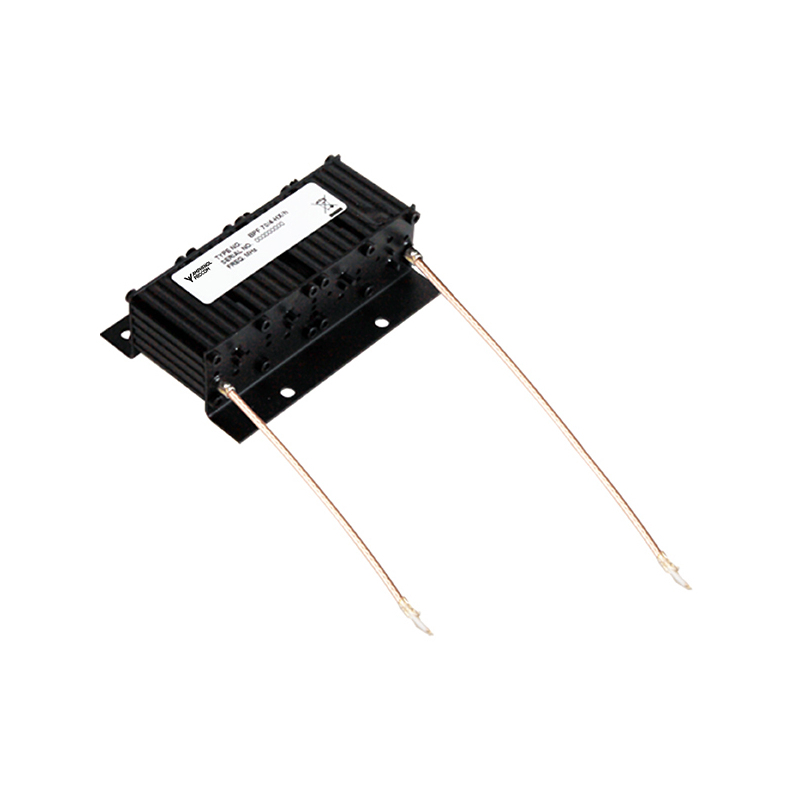

  • The BPF 70/4-HX-C is a 4 helical resonator band-pass filter with aperture coupling between the resonators.
  • This filter can be used as a preselector to protect a receiver from interference from transmitters outside the band-pass limits.
  • The BPF 70/4-HX-C (C = cable RG316) can be installed directly into the PRO-AR4G-N, PRO-AR8G-N and PRO-AR16G-N receiver multicouplers as a preselector.
  • When installed in the output of a transmitter, the BPF 70/4-HX-C reduces spurious signals.
  • The BPF 70/4-HX-C is adjustable over the range 380 – 470 MHz.
  • Very compact due to use of helical resonators.
  • The careful choice of materials, ensures the filter will function reliably over a wide temperature range.
  • Extruded aluminium sections, steel racks and coax cables for PCB mount with teflon insulation ensure good mechanical strength.
  • The filter is coated with black vinyl to prevent corrosion.

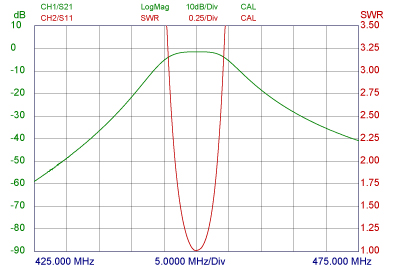

TYPICAL RESPONSE CURVE

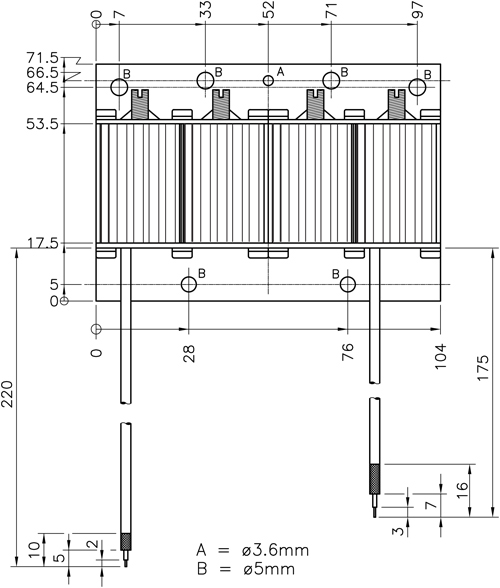

MOUNTING DETAILS

Model Product No. Frequency Add To Quote

BPF 70/4-HX/l-C

 200000876 380 – 440 MHz

BPF 70/4-HX/h-C

 200000914 430 – 470 MHz
