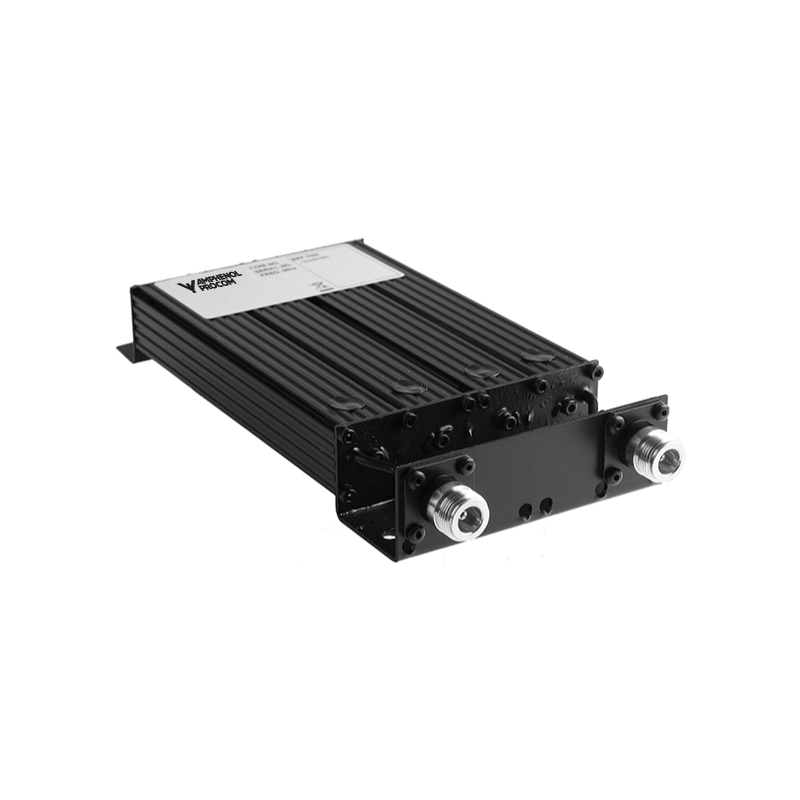

BPF 70/4

Band-Pass Filter for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

BPF 70/4

Quickly identify the correct ordering code.

BPF 70/4
Electrical
Model BPF 70/4
Filter Type Band-pass filter
Frequency 380 – 470 MHz
Max. Input Power 50 W
Insertion Loss < 1.5 dB
Impedance 50 Ω
Reject Attenuation See curve
VSWR < 1.5:1
Bandwidth 4 MHz – 10 MHz
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
(BNC(f), TNC(f), UHF(f) or SMA(f) on request)
Historic Brand Amphenol Procom
Dimensions 208 (without connectors) x 104 x 33 mm /
8.19 x 4.09 x 1.3 in.
Weight Approx. 0.69 kg / 1.52 lb.
  • The BPF 70/4 is a 4 resonator ¼ λ band-pass filter with inductive coupling between the resonators.
  • This filter can be used as a preselector to protect a receiver from interference from transmitters outside the band-pass limits.
  • When installed at the output of a transmitter, the BPF 70/4 reduces spurious signals.
  • The BPF 70/4 is adjustable over the range 380 – 470 MHz.
  • Careful choice of materials ensures reliable functioning over a wide temperature range.
  • Extruded aluminium sections, steel racks and coax cables and connectors with teflon insulation ensure good mechanical strength.
  • BPF 70/4 is coated with black vinyl to prevent corrosion.
  • The filter is delivered in standard version with 4 MHz bandwidth, other bandwidths can be requested when ordering (up to 10 MHz)

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

BPF 70/4-4-N(f)

 200000925 BPF 70/4-4-N(f)

BPF 70/4-6-N(f)

 200002977 BPF 70/4-6-N(f)

BPF 70/4-8-N(f)

 200002978 BPF 70/4-8-N(f)

BPF 70/4-10-N(f)

 200002979 BPF 70/4-10-N(f)

Login required

You need to be logged in into your account to view downloadable documents.

Typical Response curves

4 MHz

BPF 70!4 4 N curve

6 MHz

BPF 70!4 6 N curve

8 MHz

BPF 70!4 8 N curve

10 MHz

BPF 70!4 10 N curve
Mounting details

BPF 70 4 holeplacing

All dimensions are given in mm [in.]
