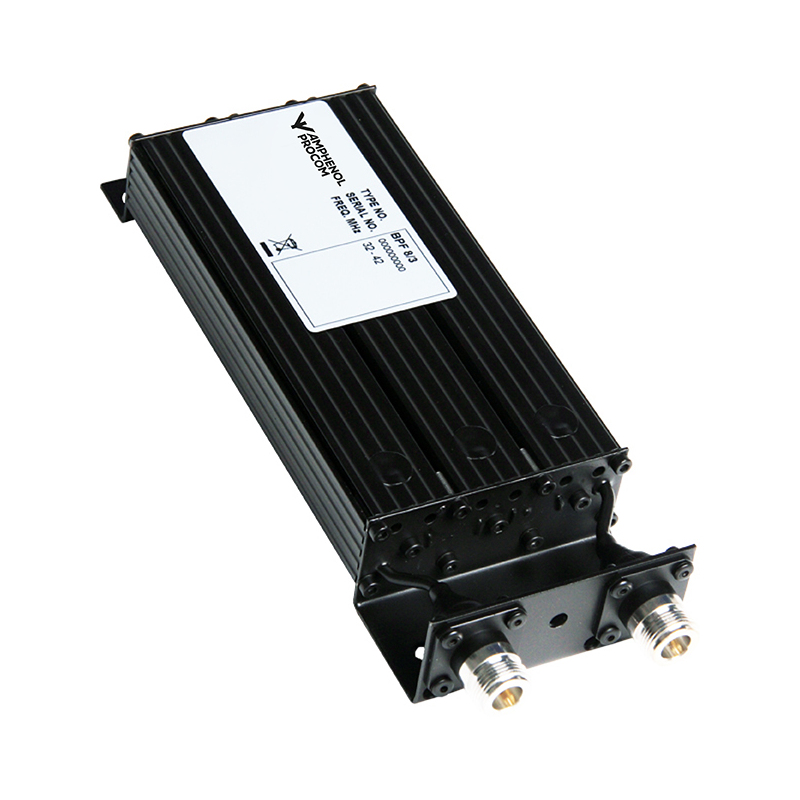

BPF 8/3

Band-Pass Filter for the 8 m Band

Find Out More
Data Sheet
CE Certification

Other Files

BPF 8/3
Electrical
Filter Type Band-pass filter
Frequency 32 – 42 MHz
Max. Input Power 50 W
Insertion Loss ≤ 1.8 dB (typ. ≤ 1.5 dB)
Impedance 50 Ω
Reject Attenuation See curves
VSWR ≤ 1.5:1
Bandwidth See curves
Environmental
Frequency Stability Approx. 10 ppm / °C
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
(BNC(f), TNC(f), UHF(f) or SMA(f) on request)
Historic Brand Procom
Dimensions 175 (incl. conn.) x 77 x 33 mm / 6.88 x 3.03 x 1.30 in.
Weight Approx. 0.39 kg / 0.86 lb.
  • This filter can be used as a preselector to protect a receiver against interference from transmissions out of the pass-band, or it can be used to reduce spurious output from a transmitter with up to 50 watt of output power.
  • The BPF 8/3 is a 3-helical resonator band-pass filter with aperture-coupling between the resonators.
  • The filter has very small dimensions owing to the use of helical resonators. Careful design and choice of materials ensure reliable operation over a wide temperature range.
  • The housing is made of extruded aluminium, the chassis of passivated steel, and teflon insulation has been used in the coaxial cables and in the connectors.
  • The filter is black vinyl coated to prevent corrosion.
  • Band-pass filters similar to the BPF 8/3 but with pass-band frequency between 30 and 66 MHz may be quoted on request.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Band-Pass Filter for the 8 m Band 200000894

Login required

You need to be logged in into your account to view downloadable documents.

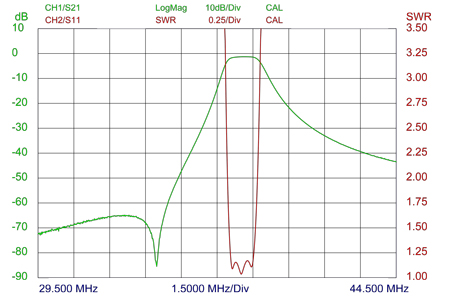

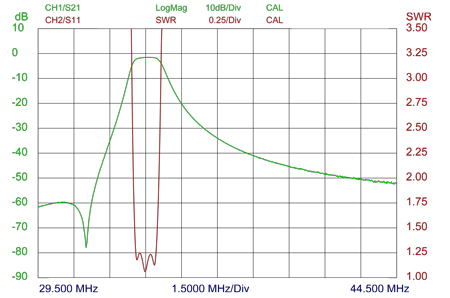

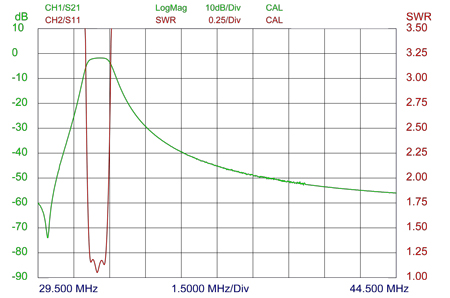

Typical Response Curves

BPF-8-3-kurve1

BPF-8-3-kurve2

BPF-8-3-kurve3

PLEASE NOTE

BPF 8/3 provided with other connector types, or filters similar to the BPF 8/3 but with pass-band frequency between 30 and 66 MHz may be quoted on request.
