BPF 800-1000

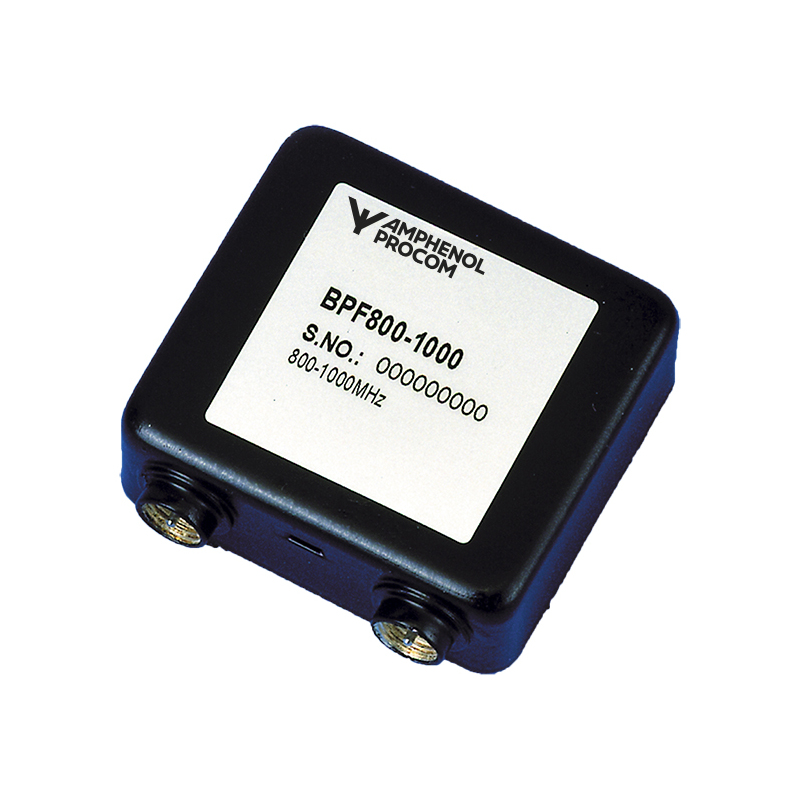

Band-Pass Filter for 800 – 1000 MHz

Find Out More
Data Sheet
CE Certification

Other Files

BPF 800-1000
Electrical
Model BPF 800-1000
Frequency 800 – 1000 MHz
Max. Input Power 15 W (25 W @ 50% duty cycle)
Insertion Loss ≤ 1.5 dB typ. ≤ 1.2 dB
Impedance 50 Ω
Reject Attenuation See curve
VSWR < 1.5:1
Bandwidth 200 MHz
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) FME(m) (others on request)
Historic Brand Amphenol Procom
Dimensions 50 x 21 x 48 mm /
1.97 x 0.83 x 1.89 in. (incl. conn.)
Weight Approx. 0.06 kg / 0.13 lb.
  • BPF 800-1000 is an LC band-pass filter.
  • Allows the whole 800 – 1000 MHz band to pass.
  • Can be used as a preselector to protect a receiver against interferences from transmitters normally being outside the band-pass range.
  • BPF 800-1000 can be mounted as a preselector directly inside the PRO-AR4G-N, PRO-AR8G-N and the PRO-AR16G-N receiver multicouplers.
  • Very small dimensions, mounted in a 50 x 21 x 45 mm case.
  • FME connectors for easy and handy coupling to the surroundings.
  • BPF 800-1000 is coated with black vinyl to prevent corrosion.

TYPICAL RESPONSE CURVES

Model Product No. Add To Quote
Band-Pass Filter for 800 – 1000 MHz 200000898
