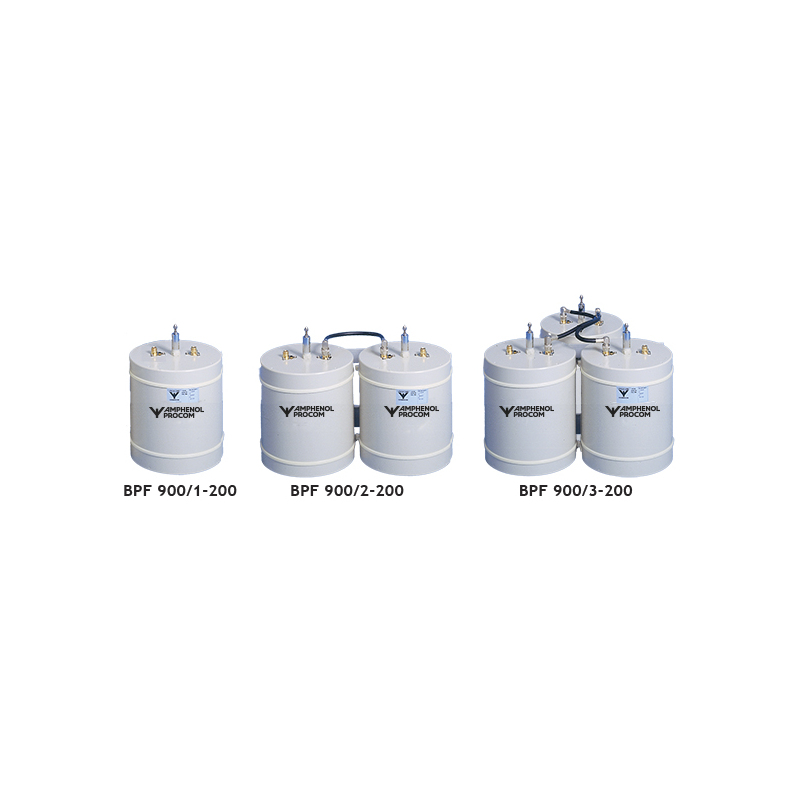

BPF 900/...-200

Quickly identify the correct ordering code.

BPF 900/…-200
Electrical
Model
BPF 900/1-200BPF 900/2-200BPF 900/3-200
Frequency 890 – 960 MHz
Max. Input Power
350 W @ 0.5 dB IL
150 W @ 2.0 dB IL350 W @ 1.0 dB IL
150 W @ 4.0 dB IL350 W @ 1.5 dB IL
150 W @ 6.0 dB IL
Insertion Loss
Adjustable 0.4 – 2.0 dBAdjustable 0.8 – 4.0 dBAdjustable 1.2 – 6.0 dB
Impedance 50 Ω
VSWR < 1.5:1
Environmental
Frequency Stability Approx. 1.5 ppm / °C
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions
ø200 x 150 mm /
ø7.87 x 5.91 in.200 x 410 x 150 mm /
7.87 x 16.14 x 5.91 in.410 x 410 x 150 mm /
16.14 x 16.14 x 5.91 in.
Weight
Approx. 0.9 kg / 1.98 lb.Approx. 2 kg / 4.41 lb.Approx. 3.3 kg / 7.28 lb.
  • High power base station band-pass filters for the 890 – 960 MHz range.
  • The use of large ø200 mm cavities means a high Q,
    resulting in a very narrow passband.
  • The large dimensions also mean a high power rating.
  • Unloaded Q of a single cavity is approx. 7000.
  • High frequency stability on temperature and power.
  • 19” mounting brackets are available as an option.
