BPF FM/...-200

Quickly identify the correct ordering code.

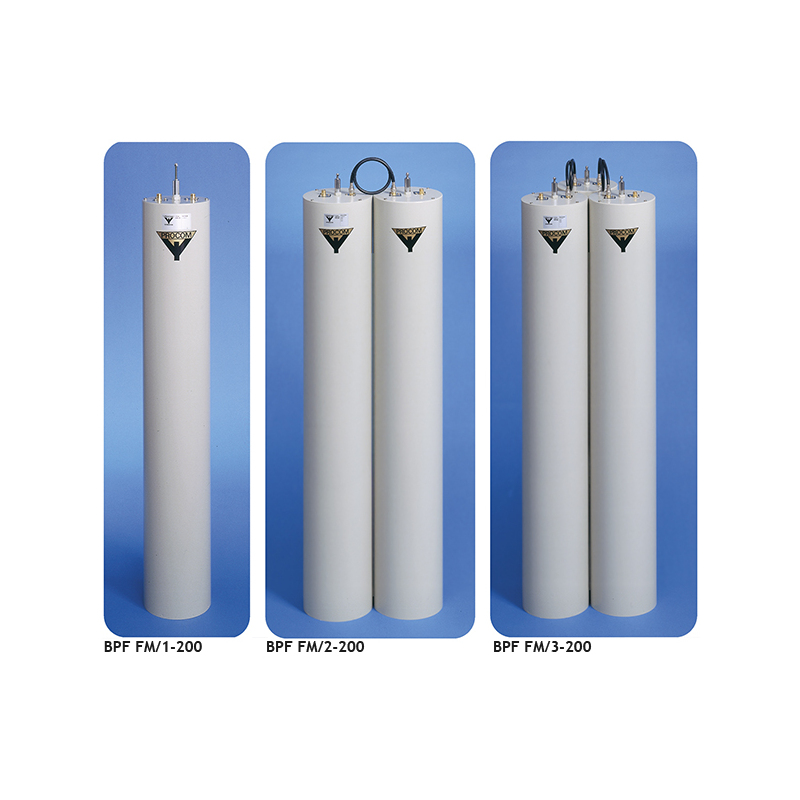

BPF FM/…-200
Electrical
Model
BPF FM/1-200BPF FM/2-200BPF FM/3-200
Frequency 88 – 108 MHz
Max. Input Power
350 W @ 0.5 dB IL 150 W @ 2.0 dB IL350 W @ 1.0 dB IL 150 W @ 4.0 dB IL350 W @ 1.5 dB IL 150 W @ 6.0 dB IL
Insertion Loss
Adjustable 0.4 – 2.0 dBAdjustable 0.8 – 4.0 dBAdjustable 1.2 – 6.0 dB
Impedance 50 Ω
Attenuation See curves
VSWR < 1.5:1
Environmental
Frequency Stability Approx. 1.5 ppm/° C
Operating temperature range -30° C to +60° C
Mechanical
Connection(s) N(f)
Max. RPM 200 (On tuning rod)
Historic Brand Amphenol Procom
Dimensions
ø200 x 920 mm /
ø7.72 x 36.22 in.L: 200 x W: 400 x H: 920 mm /
L: 7.72 x W: 15.75 x H: 36.22 in.L: 200 x W: 600 x H: 920 mm /
L: 7.72 x W: 23.62 x H: 36.22 in.
Weight
6.7 kg / 14.77 lb13.7 kg / 30.20 lb20.9 kg / 46.08 lb
  • High power base station band-pass filters for the 88 – 108 MHz range.
  • The use of large ø200 mm cavities means a high Q, resulting in a very narrow passband.
  • The large dimensions also mean a high power rating.
  • Unloaded Q of a single cavity is approx. 7000.
  • High frequency stability in temperature and power.
  • 19” mounting brackets are available as an option.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Max. Input PowerInsertion Loss Add To Quote

BPF FM/1-200

 200001593 350 W @ 0.5 dB IL 150 W @ 2.0 dB IL Adjustable 0.4 – 2.0 dB

PRO-HDAR450-BB-3DI/435-450/5-5-5/50W

 Contact_82 – –

PRO-HDAR450-BB-3DI/440-455/5-5-5/50W

 Contact_83 – –

Login required

You need to be logged in into your account to view downloadable documents.

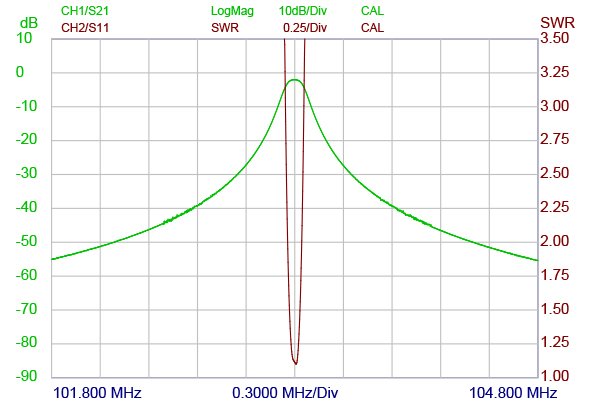

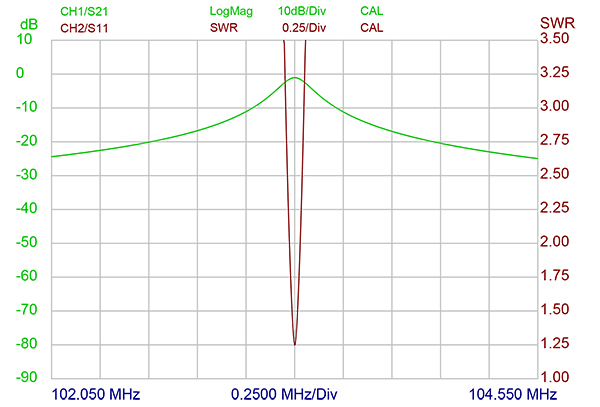

Typical response curves
