BRF 2/…-200

Band-Reject Filters for the 150 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

BRF 2/...-200

Quickly identify the correct ordering code.

BRF 2/…-200
Electrical
Model

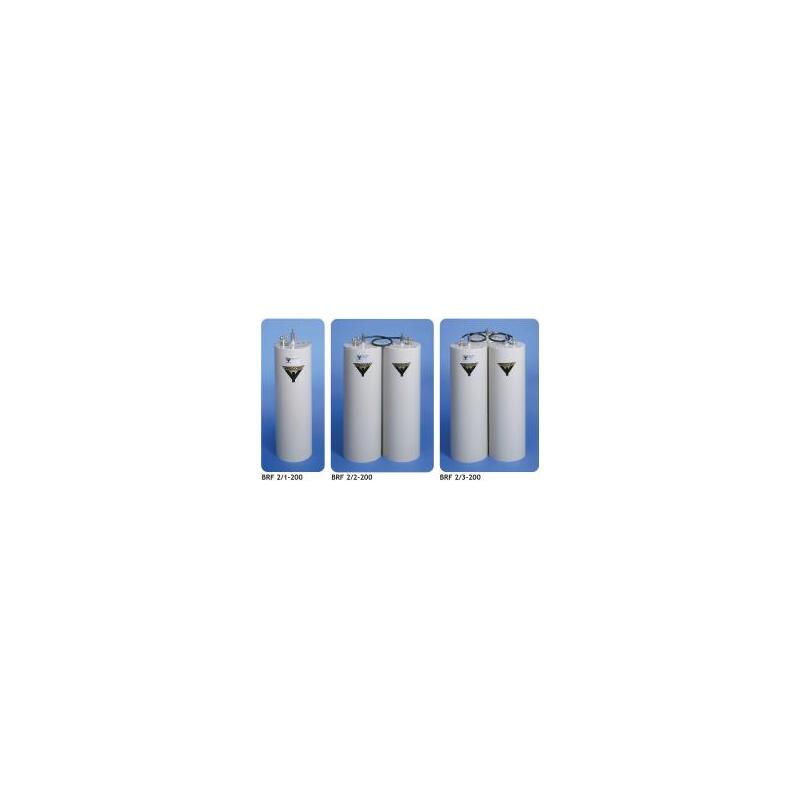

BRF 2/1-200BRF 2/2-200BRF 2/3-200
Frequency 140 – 175 MHz
Max. Input Power
350 W @ 0.5 dB IL 200 W @ 1.0 dB IL350 W @ 1.0 dB IL 200 W @ 2.0 dB IL350 W @ 1.5 dB IL 200 W @ 3.0 dB IL
Insertion Loss
Adjustable 0.4 – 2.0 dBAdjustable 0.8 – 4.0 dBAdjustable 1.2 – 6.0 dB
Impedance 50 Ω
VSWR < 1.5:1
Environmental
Frequency Stability 1.5 ppm/° C (approx.)
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Procom
Dimensions
ø200 x 600 mm / ø7.87 x 23.62 in.L:200 x W:400 x H:600 mm / L:7.87 x W:15.74 x H:23.32 in.L:200 x W:600 x H:600 mm / L:7.87 x W:23.32 x H:23.32 in.
Weight
Approx. 3.8 kg / 8.38 lb.Approx. 8.5 kg / 18.74 lb.Approx. 12.6 kg / 27.78 lb.
  • High power base station band-reject filters for the 140 – 175 MHz range.
  • The use of large ø200 mm cavities means a high Q,
    resulting in a very narrow passband.
  • The large dimensions also mean a high power rating.
  • Unloaded Q of a single cavity is approx. 7000.
  • High frequency stability on temperature and power.
  • 19” mounting brackets are available as an option.
