BRF 2/…-250

Band-Reject Filters for the 150 MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

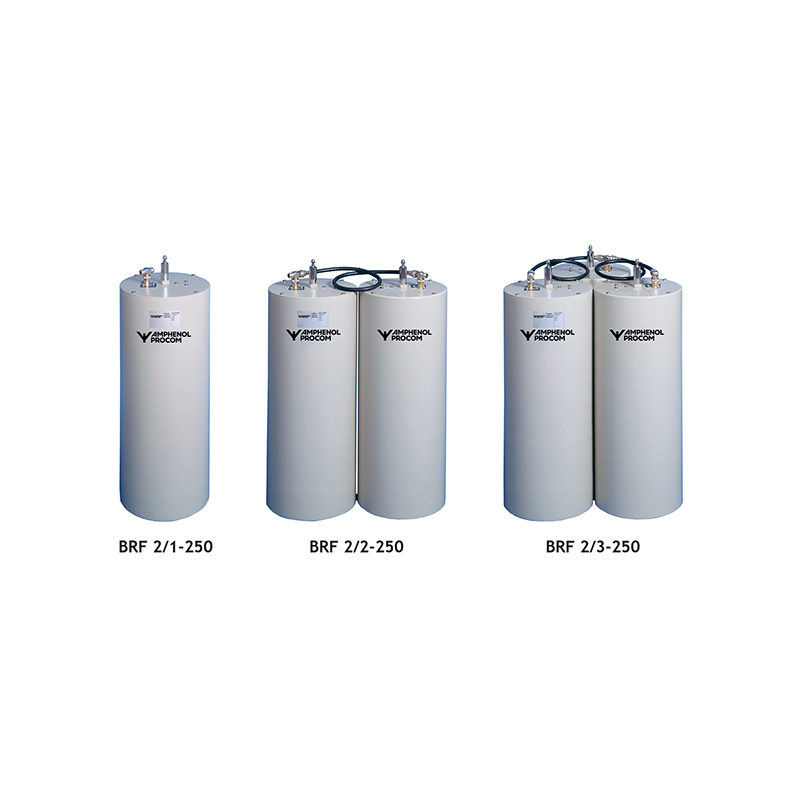

BRF 2/...-250

Quickly identify the correct ordering code.

BRF 2/…-250
Electrical
Model
BRF 2/1-250BRF 2/2-250BRF 2/3-250
Frequency 140 – 175 MHz
Max. Input Power
350 W @ 0.5 dB IL 200 W @ 1.0 dB IL350 W @ 1.0 dB IL 200 W @ 2.0 dB IL350 W @ 1.5 dB IL 200 W @ 3.0 dB IL
1 dB Notch Bandwidth 1 % of fc
Impedance 50 Ω
Attenuation
See figure 1See figure 2See figure 3
VSWR ≤ 1.5:1
Environmental
Frequency Stability Approx. 1.5 ppm / °C
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions
ø250 x 600 mm / ø9.84 x 23.62 in.250 x 500 x 600 mm /
9.84 x 19.68 x 23.62 in.510 x 600 x 600 mm /
20.07 x 23.62 x 23.62 in.
Weight
Approx. 4.3 kg / 9.46 lb.Approx. 8.9 kg / 19.58 lb.Approx. 14 kg / 30.8 lb.
  • High power base station band-reject filters for the 140 – 175 MHz range.
  • The use of large ø250 mm cavities means a high Q, resulting in a very narrow notch bandwidth.
  • The large dimensions also mean a high power rating.
  • Unloaded Q of a single cavity is approx. 8000.
  • High frequency stability on temperature and power.
  • 19” mounting brackets are available as an option.
