BRF 2/3

Band-Reject (Notch) Filters for the 160 MHz

Find Out More
Data Sheet
CE Certification

Other Files

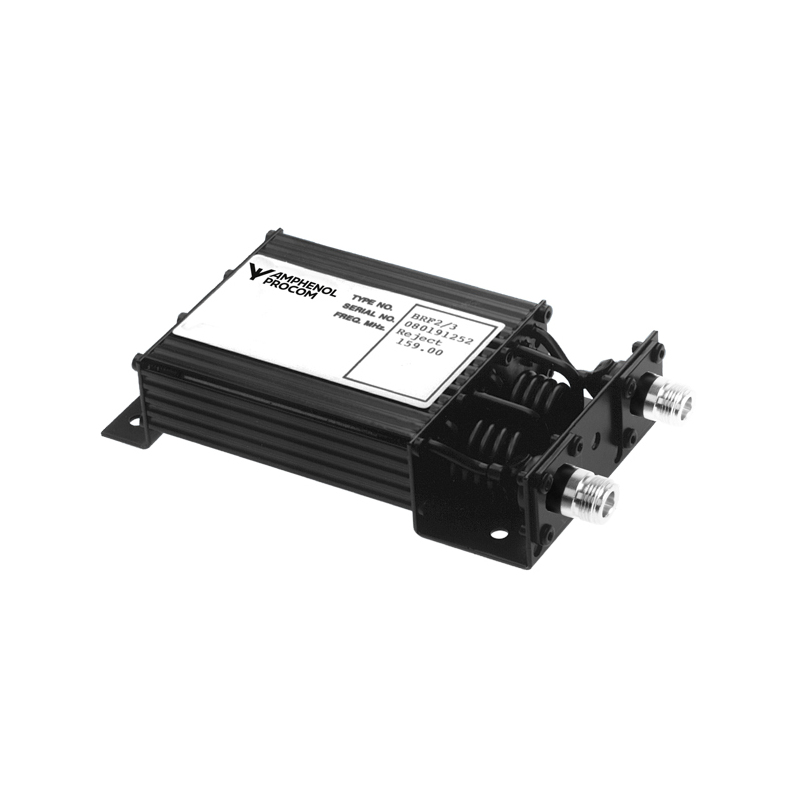

BRF 2/3
Electrical
Model BRF 2/3
Filter Type Band-reject (notch) filter
Frequency 144 – 175 MHz
Max. Input Power 50 W
Insertion Loss 0 – 200 MHz IL ≤ 0.8 dB
200 – 430 MHz IL ≤ 1.3 dB
1 dB Notch Bandwidth At 144 MHz : Approx. +2.3 / -2.2 MHz
At 175 MHz : Approx. +2.6 / -3.6 MHz
Impedance 50 Ω
Reject Attenuation Single-channel tuned : ≥ 53 dB
Multi-channel tuned, 1.0 MHz BW : ≥ 24 dB
VSWR ≤ 1.5:1 : 0 – 200 MHz
≤ 2.75:1 : 200 – 430 MHz
Environmental
Frequency Stability Approx. 10 ppm / °C
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
(BNC(f), TNC(f) on request)
Historic Brand Amphenol Procom
Dimensions 165 x 77 x 33 mm / 6.50 x 3.03 x 1.30 in.
Weight Approx. 0.42 kg / 0.93 lb.
Mounting 5 mm dia. / 0.20 in. dia. (4 holes)
  • The BRF 2/3 is a 3-cavity notchfilter using helical resonators.
  • This filter rejects a narrow band of frequencies in the 2 m band and passes all others in the range 0 – 430 MHz. The filter can be applied both in connection with transmitters and receivers to attenuate interfering signals causing cross modulation effects. The filter can be employed as a single component or it can function as an integrated part of a complete multicoupling system.
  • The BRF 2/3 can be tuned within the complete 144 – 175 MHz band. Careful design and choice of materials ensure reliable operation over a wide temperature range.
  • The housing is made of extruded aluminium, the chassis of passivated steel, and teflon insulation has been applied in the coaxial cables and in the connectors.
  • The filter is black-vinyl coated to prevent corrosion.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Band-Reject (Notch) Filters for the 160 MHz 200001208

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

The notch filter resonators can also be separately tuned to three different frequencies in a “multiple notch” configuration, but the attenuation on each frequency is then only approximately
one third of the normal attenuation when all notches work together.

Typical response curves

Fc 144 MHz

Fc 175 MHz

Out of reject area

Mounting Details

BRF 2 3 holeplacering

All dimensions are given in mm.
