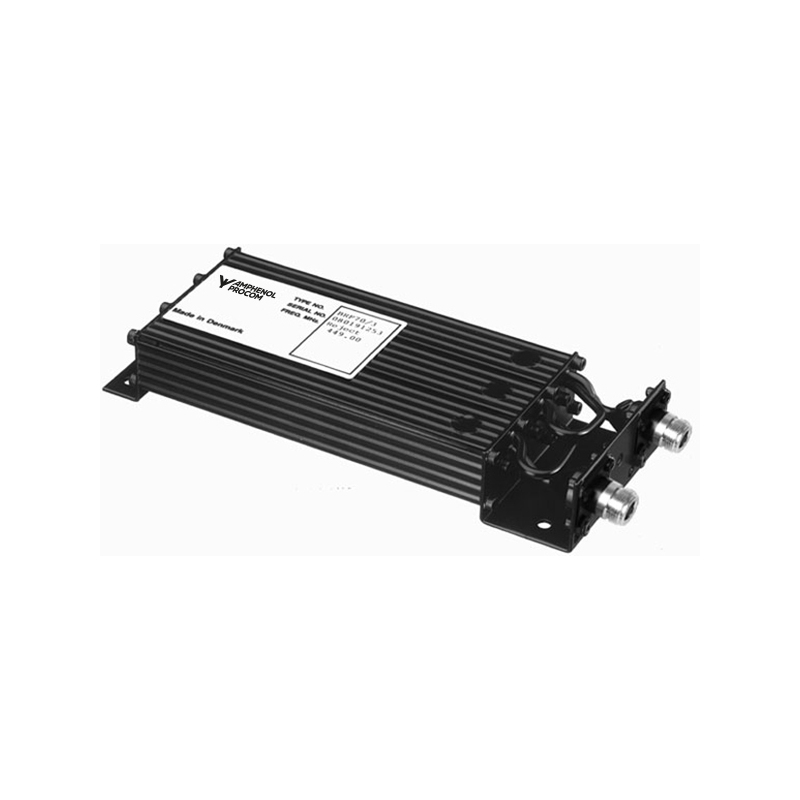

BRF 70/3

Band reject (notch) filter for the 450 MHz band

Find Out More
Data Sheet
CE Certification

Other Files

BRF 70/3
Electrical
Model BRF 70/3 N
Filter Type Band-reject (notch) filter
Frequency 400 – 470 MHz
Max. Input Power 50 W
Insertion Loss @ Fc ±5 MHz IL ≤ 0.5 dB
0 – 500 MHz IL ≤ 0.5 dB
500 – 1000 MHz IL ≤ 1.2 dB
1 dB Notch Bandwidth At 400 MHz : < ±2.2 MHz
At 435 MHz : < ±2.5 MHz
At 470 MHz : < ±3.0 MHz
Impedance 50 Ω
Reject Attenuation > 38 dB (See curve)
VSWR 1 – 500 MHz : < 1.5
500 – 550 MHz : < 2.0
550 – 730 MHz : < 3.0
730 – 1 GHz : < 2.0
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
BNC(f), TNC(f), SMA(f)
on request
Historic Brand Amphenol Procom
Dimensions 208 x 77 x 33 mm /
8.18 x 3.03 x 1.29 in. (without connectors)
Weight Approx. 0.55 kg / 1.21 lb.
  • The BRF 70/3 is a 3-resonator notch-filter using full-length ¼ λ cavities.
  • This filter rejects a narrow band of frequencies and passes all others. The filter can be applied both in connection with transmitters and receivers to attenuate interfering signals which cause cross modulation effects. The filter can be employed as a single component or it can act as an integrated part of a complete multi-coupling system.
  • The BRF 70/3 can be tuned within the complete 400 – 470 MHz band. Careful design and choice of materials ensure reliable operation over a wide temperature range.
  • The housing is made of extruded aluminium, the chassis of brass, and teflon insulation has been applied in the coaxial cables and in the connectors.
  • The filter is black vinyl coated to prevent corrosion.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Band reject (notch) filter for the 450 MHz band 200001233

Login required

You need to be logged in into your account to view downloadable documents.

Typical Response Curve

Mounting Details

All dimensions are given in mm.

Please Note

The notch filter resonators can also be separately tuned to three different frequencies in a “multiple notch” configuration, but the attenuation on each frequency is then only approximately one third of the normal attenuation when all notches work together.
