CA-TETRA-…

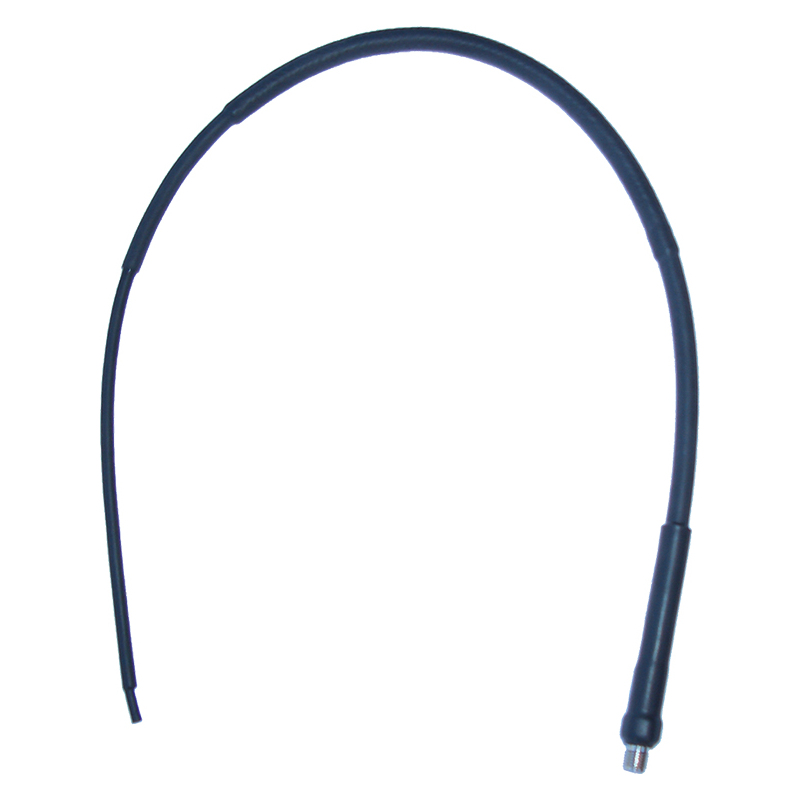

Disguised Antenna for TETRA Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CA-TETRA-...

Quickly identify the correct ordering code.

CA-TETRA-…
Electrical
Model CA-TETRA-…
Frequency 380 – 430 MHz
Antenna Type ½ λ antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 5 dB (compared to a ¼ λ portable antenna on the same equipment)
VSWR < 2.5 :1 when mounted in coat collar
Bandwidth ≥ 50 MHz @ VSWR ≤ 2.5
Mechanical
Connection(s) SMA(f), SMA(m)
Materials Polyethylene covered coax cable
Cu-nite brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 470 mm / 18.50 in.
Weight Approx. 0.025 kg / 0.06 lb.
  • Highly flexible, polyethylene covered coaxantenna.
  • ½ λ skirt dipole antenna.
  • Disguised body antenna.
  • Especially designed for building-in in coat collars or the like.
  • No irritating antenna which can hamper freedom of movement.
  • Highest quality materials in an elegant design.

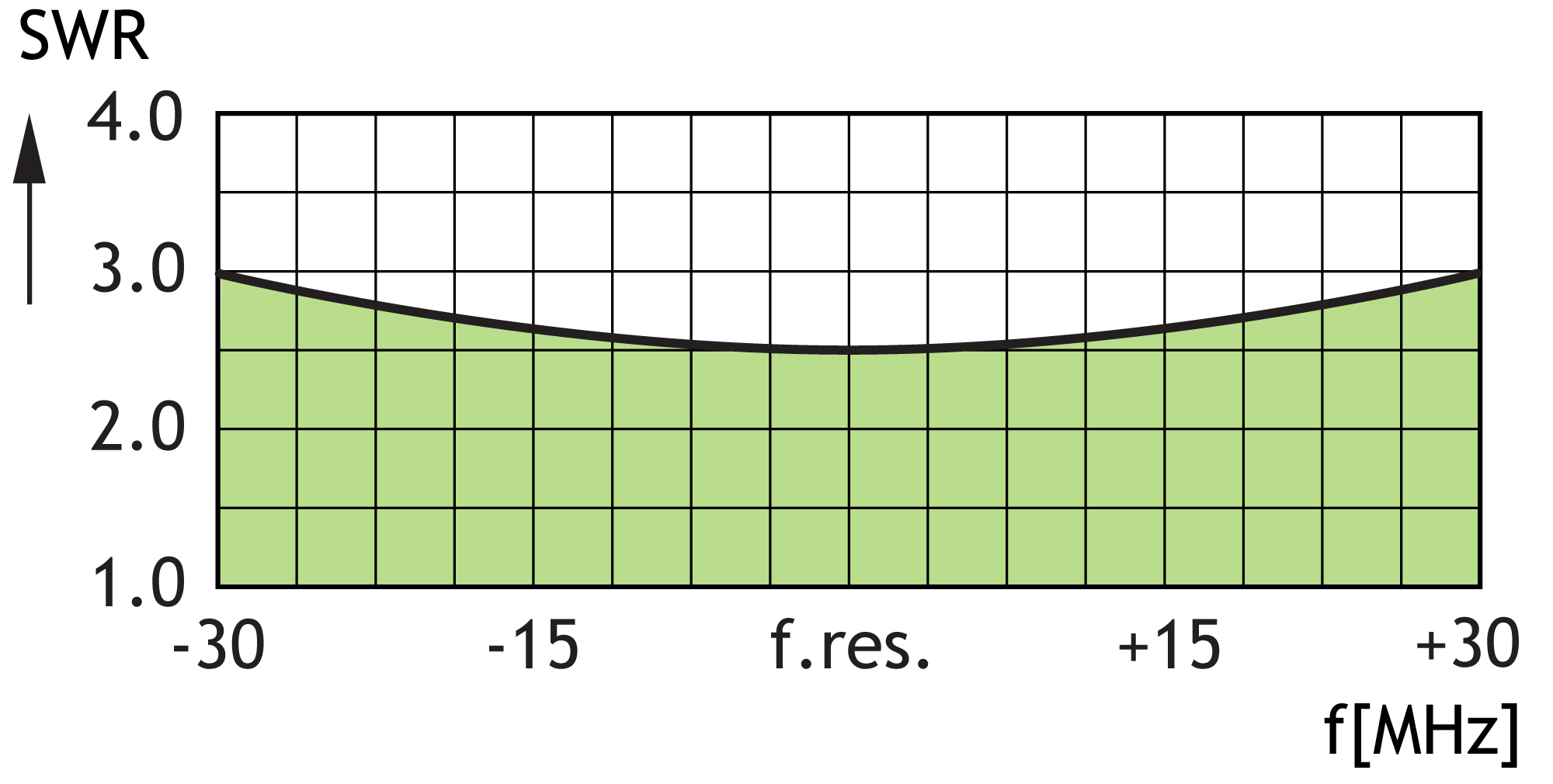

Typical VSWR curve

Model Product No. Model Add To Quote

CA-TETRA-FSMA

 140000498 CA-TETRA-FSMA

CA-TETRA-MSMA

 140000518 CA-TETRA-MSMA
