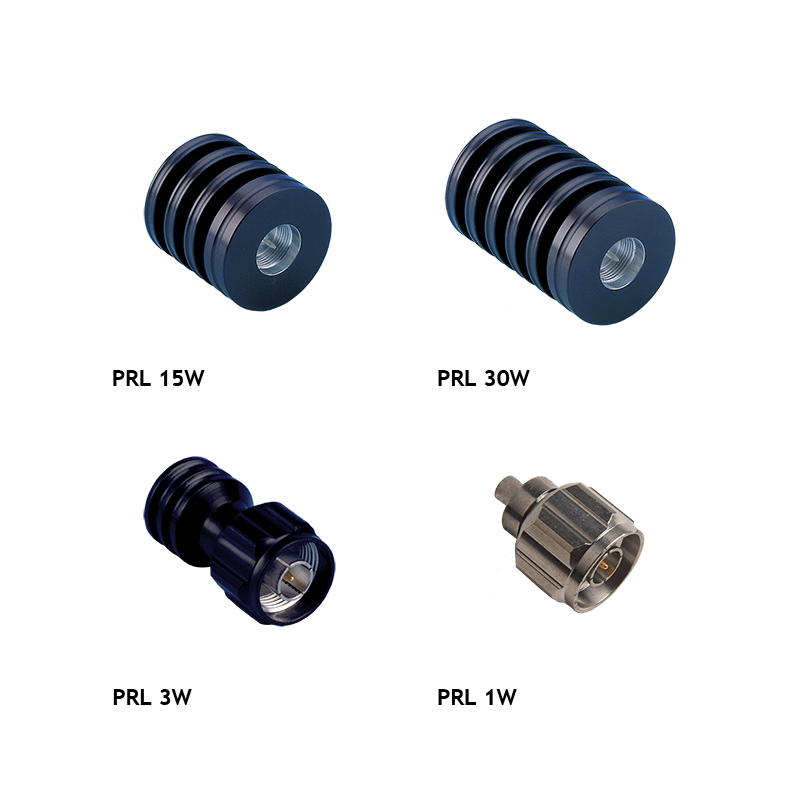

COAXIAL LOADS (I) – PRL 1W, PRL 3W, PRL 15W, PRL 30W

  • Loads/terminations are matched to 50 ohms characteristic impedance. Matched loads provide a termination designed to absorb all the incident power with very little reflection. Terminations are used in a wide variety of systems; any port of a multi-port microwave device that is not involved in the measurement, or in a system, should be terminated in its characteristic impedance in order to ensure an accurate measurement.
  • This series of coaxial loads have very low VSWR and are especially suitable for use with:
  • Power Hybrids.
  • Isolators.
  • Coaxial Transmission Lines.
  • Power Monitors.
  • Wattmeters.
  • Receiver Multicouplers.
  • The surface of the dummy loads is black anodized.
Find Out More
View Variations
Data Sheet
CE Certification

Other Files

COAXIAL LOADS (I) - PRL 1W, PRL 3W, PRL 15W, PRL 30W

Quickly identify the correct ordering code.

COAXIAL LOADS (I) – PRL 1W, PRL 3W, PRL 15W, PRL 30W
Electrical
Model
PRL 1WPRL 3WPRL 15WPRL 30W
Frequency
0-1 GHz0-1.0 (2.5) GHz0-1.5 (2.5) GHz0-1.5 (2.5) GHz
Max. Input Power
1 W3 W15 W (30 W with extra cooling)30 W (60 W with extra cooling)
Impedance 50 Ω
VSWR
< 1.5:1< 1.15:1 (< 1.5:1)< 1.15:1 (< 1.5:1)< 1.15:1 (< 1.5:1)
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(m)
Historic Brand Amphenol Procom
Dimensions
ø21 x 24 mmø21 x 39.5 mmø40 x 40 mmø40 x 60 mm
Weight
0.025 kg / 0.06 lb.0.05 kg / 0.11 lb.0.105 kg / 0.23 lb.0.18 kg / 0.40 lb.
  • Loads/terminations are matched to 50 ohms characteristic impedance. Matched loads provide a termination designed to absorb all the incident power with very little reflection. Terminations are used in a wide variety of systems; any port of a multi-port microwave device that is not involved in the measurement, or in a system, should be terminated in its characteristic impedance in order to ensure an accurate measurement.
  • This series of coaxial loads have very low VSWR and are especially suitable for use with:
  • Power Hybrids.
  • Isolators.
  • Coaxial Transmission Lines.
  • Power Monitors.
  • Wattmeters.
  • Receiver Multicouplers.
  • The surface of the dummy loads is black anodized.

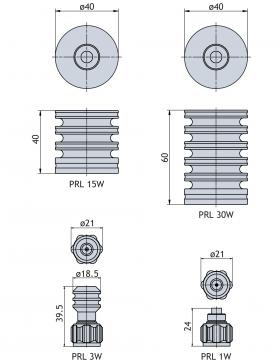

DIMENSIONS

Model Product No. FrequencyMax. Input Power Add To Quote

PRL 1W

 210000640 0-1 GHz 1W

PRL 3W

 210000869 0-1.0 (2.5) GHz 3W

PRL 15W

 210000553 0-1.5 (2.5) GHz 15W

PRL 30W

 210000554 0-1.5 (2.5) GHz 30W
