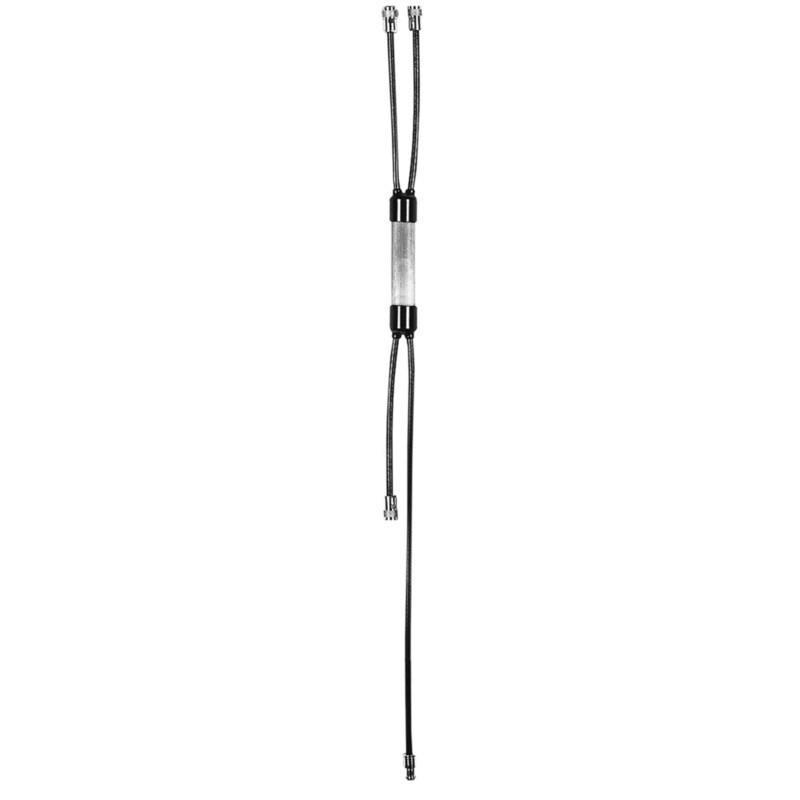

CPS3-127

3 way coaxial cable splitter 117 – 137 MHz

Find Out More
Data Sheet
CE Certification

Other Files

CPS3-127
Electrical
Model CPS3-127
Frequency 117 – 137 MHz
Max. Input Power 500 W
Insertion Loss -5.1 dB
Impedance 50 Ω
VSWR < 1.3:1
Environmental
Ingress Protection IP68
Mechanical
Connection(s) N(f) on 1m RG213/U cable
Output Connections N(m) on 500mm RG213
Historic Brand Skymasts
Body Material Aluminium tube 38.1 mm
Insulator Polyurethane resin encapsulant
No. of outputs 3
  • The CPS series of power splitters are manufactured using high quality coaxial cable and connectors.
  • The CPS power splitters use quarter wave coaxial cable transformer sections to match two or more loads to one source.
  • The junction points on the CPS power splitters are completely encapsulated with polyurethane resin within an aluminium tube totally preventing dust and moisture ingress.
  • Former Skymasts brand product.
