CT 30-ZP4

Short Centre-loaded Mobile Antenna for the 30 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

CT 30-ZP4
Electrical
Model CT 30-ZP4
Frequency 30 MHz
Antenna Type Centre-loaded mobile antenna
Max. Input Power 200 W
Polarisation Vertical
Impedance 50 Ω
VSWR < 1.3:1
Bandwidth ≥ 350 kHz @ VSWR ≤ 1.5
Mechanical
Materials Whip : Stainless steel, Nylon,
Chromed brass
Mount : Chromed brass
Weather- and shockproof plastics
Stainless steel
Cable 4 m RG 58
Installation Torque 7.5 ±1 Nm
Colour Black / Metallic Silver
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 680 mm / 26.77 in.
Weight Approx. 0.49 kg / 1.08 lb.
Mounting 21 mm / 0.83 in. dia. hole (For roof thicknesses 2 mm / 0.08 in. up to 7.5 mm / 0.30 in. mounting hole should be 22 mm / 0.87 in. dia.)
Mounting Plate Thickness Max. 2.0 mm (Models up to 7.5 mm on request)
  • Short antenna with attractive appearance ideal for mounting on the car roof.
  • High efficiency in spite of low height due to high-Q centre-loading coil and matching unit built into mount.
  • Stainless steel ZP4-mount with ball-joint and wing screw whip-fastening system.
  • Simple mounting exclusively with access from the outside.
  • Models with roof thickness from 2 mm to 7.5 mm mounting from the inside.
  • Delivered with 4 m cable permanently attached to the mount and terminated with FME-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Short Centre-loaded Mobile Antenna for the 30 MHz Band 130000601

Login required

You need to be logged in into your account to view downloadable documents.

Installation

This antenna is supplied with type ZP4-mount. The whip is fastened to the mount by means of our standard ball-joint and wing screw system. The adjustable ball-joint ensures that the whip can always be mounted in a vertical position independent of the angle of the installation spot.

The ZP4-mount is particularly well suited for mounting on car-roofs because of its ability to be installed exclusively with access from the outside. The ZP4-Mount for roof thickness from 2 mm to 7.5 mm must be mounted from the inside. However, the antenna can be installed anywhere on the car, as the ZP4-mount is equally well suited for mounting on e.g. trunk or wing.

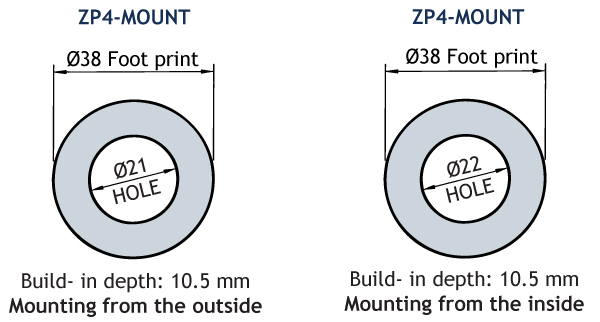

1. Installation Dimensions

ZP4 Mount 21 22 38 GB

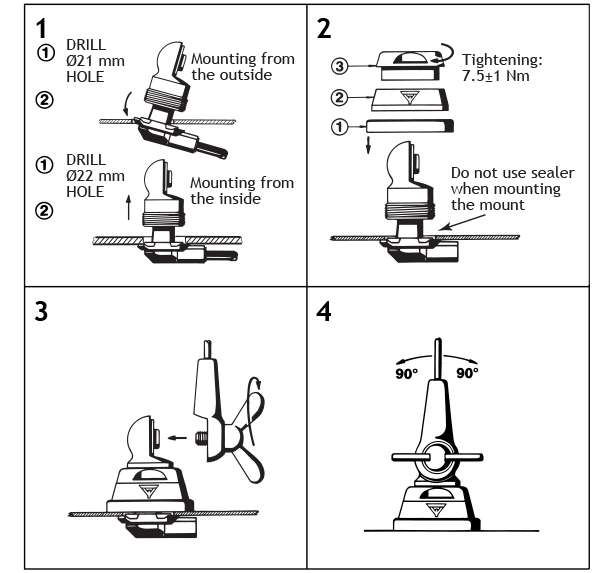

2. Installation Steps

Do not use sealer on rubber gasket or other places.

3. Tuning

The antenna should always be post-adjusted using an SWR-meter, especially if mounted near metal parts parallel to the whip.
Loosen the union nut at the top of the coil and pull out the whip approx. 5 mm at a time until best possible VSWR is obtained.
Fasten the union nut thoroughly.

Please Note

To make this antenna operate as efficiently as possible, a matching unit has been built into the antenna mount.
Consequently, neither mount nor whip can be used together with other mounts/whips.
