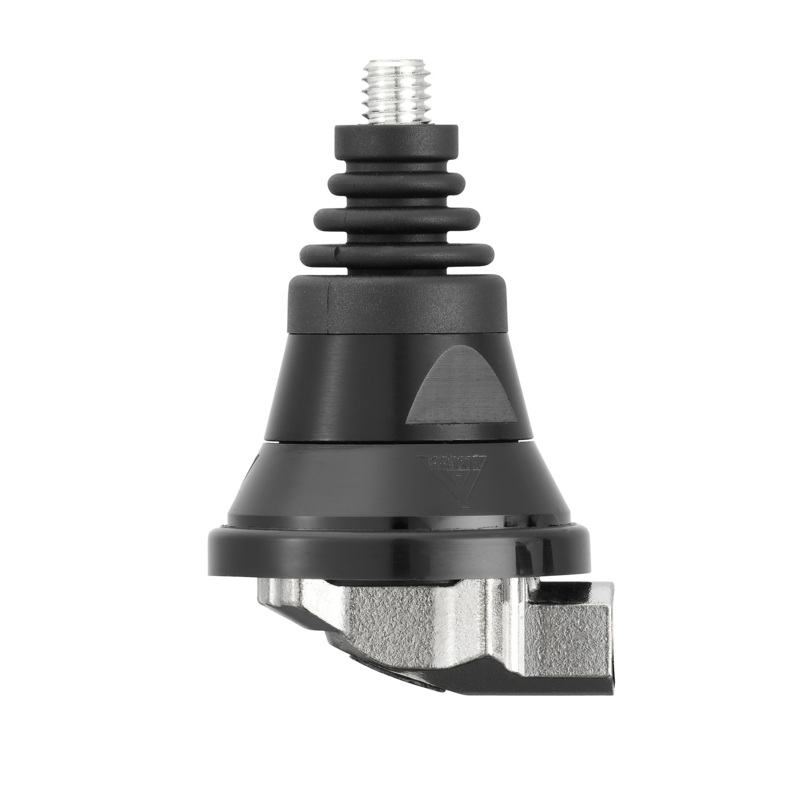

CX-Mount

Quickly identify the correct ordering code.

CX-Mount
Electrical
Frequency 0 – 1300 MHz
Application Mount for mobile antennas
Mechanical
Installation Diameter 32.5 mm / 1.28 in.
Build-In Depth Active : 30 mm
Passive : 11 mm
Materials Stainless steel
Black chromed brass
Cu-nite brass
Weather- and shockproof plastics
Installation Torque 4 ± 1 Nm
Colour Black
Historic Brand Amphenol Procom
Height Approx. 42 mm / 1.65 in.
Whip Connection M6 thread stud
Weight CX-version : APprox. 45 g / 0.09 lb.
CXP4-version : Approx. 180 g / 0.4 lb.
Mounting 18 mm dia. hole
Mounting Plate Thickness Max. 2 mm
  • Mobile mount gradually merging with the car roof.
  • Although mainly designed for roof mounting, installation can take place anywhere on the car.
  • M6 thread whip-mounting system.
  • Designed for installation with access from the outside only.
  • Very low requirements to installation depth both during and after installation.
  • With access available from the inside, installation is possible in a 14 mm dia. hole.
  • Bendable section in mount makes whip tiltable 30° by hand.
  • Complete line of whips available for all communication bands up to 1300 MHz.
  • Mounting body made of stainless steel!
  • Choice between two connection principles:
  • CX-mount: FME-connection (supplied without cable).
  • CXP4-mount: Permanently attached 4 m RG 58 cable terminated with FME-connector.
  • ECE R118.02 approved cable.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

CX-Mount

 130000416 CX-mount with FME-system

CXP4-Mount

 130000423 CXP4-mount with 4 m RG 58 cable and FME-connector

CXP5-Mount

 130000426 CXP5-mount with 5 m RG 58 cable and FME-connector

Login required

You need to be logged in into your account to view downloadable documents.

FME-System Accessories – Note

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories.

Mount Variant

CXCXP4-Mount

Installation

CX-mount antenna types can be mounted anywhere on the car, however, roof top mounting is always recommended. Mounting can take place exclusively with access from the outside when drilling an 18 mm dia. hole. Mounting can take place from the inside by drilling a 14 mm dia. hole, in which case the bottom plastic ring of the gasket should be removed with a sharp cutter.

A good contact surface on the inside of the car body must always be ensured, thus enabling the base plate to get in direct contact with the metal parts of the car, which is of utmost importance for proper performance of the antenna.
When cleaning the car in car-washing machines, the whip can easily be removed using a fork spanner.

The whip is refitted again by screwing it onto the threaded stud and tightening it lightly with the spanner. As the CX-mount is internally equipped with a bendable section, the antennas can always be adjusted to an upright position independent of the tilt angle of the installation spot (up to 30˚; tilt).

1. Installation Dimensions

2. Installation Steps


Do not use sealer on rubber gasket or other places.

Mounting Details

A Selection of the various whips which can be connected to the CX-Mount
